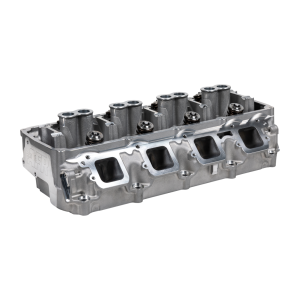

AFR 212cc Gen III 6.2L/6.4L HEMI Aluminum Cylinder Head, CNC Ported, 69cc Chamber, Passenger Side

AFR 2522
This is the all new AFR 212cc Black Hawk Gen III HEMI Aluminum As Cast Cylinder Head, 69cc Chamber, Passenger Side. You will also need to order AFR part number 2521 to complete a pair of heads.

Compatible with Apache and Eagle engines produced from 2003 through 2023, Gen 3 Hemi 6.2L/6.4L Blocks Only

AFR's CNC-ported cylinder heads for 5.7/6.1L, 6.2/6.4L engines offer excellent low-end and street/strip performance while maintaining strong top-end power. Made from A356 aluminum, the 212cc Black Hawk heads feature fully CNC-ported intake, exhaust, and combustion chambers, and a thick .750” head deck for boosted engines. Enhanced cooling is achieved through improved water jacketing, and a machining option is available for Hellcat supercharger compatibility. Designed for hydraulic roller cams with lifts up to .600”, they come in three versions to suit different builds.

Note: This head will only work on 6.2L/6.4L Blocks for 5.7L/6.1L blocks see PN: AFR 2506
Shipping: FREE continental USA ground shipping on ALL AFR Cylinder Heads
Was: $2,105.00
Sale: $1,999.75
Save: 5%
Save: $105.25

Qty:
Free Basic Shipping

Description

AFR Gen III Hemi heads are the highest flowing on the market, view the image with flow numbers attached.


Basic Package Components Part #
AFR 100% CNC Intake Ports
AFR 100% CNC Exhaust Ports
AFR 100% CNC Combustion Chambers
Competition 5-angle Valve Job

8mm Bead Lock Intake Valve 2.125” x 5.135” O.A.L.
AFR #7274
8mm Bead Lock Exhaust Valve 1.650” x 5.150” O.A.L.
AFR #7271
PAC Racing Springs 1.290” OD Hydraulic Roller Dual Valve Drag Race Spring, 140 lbs. on seat, .600” maximum lift, Max RPM 6300-6500 (upgrades available)
AFR #8017
10° Chrome Moly Retainers 1.245” O.D x .885” I.D x .655” I.D
AFR #8520
10° 8mm Valve Keepers with lashcap recess
AFR #9009
Hardened Valve Spring Cup 1.380" O.D x 1.300" I.D x .570" I.D
AFR#8042
Intake Valve Seats 2.200" O.D x 1.750" I.D x .375" Deep
AFR #9060
Exhaust Valve Seats 1.696" O.D x 1.35" I.D x .375" Deep
AFR #9073
Intake Bronze Valve Guides 8mm x 2.100" O.A.L
AFR #9051
Exhaust Bronze Valve Guides 8mm x 2.100" O.A.L
AFR #9051



Recommended Components Part #
Intake Port Gasket OE Rubber Seal
Hellcat/Blower Intake Port Gasket
Important: Do not use your OE gasket as a template to port match your intake manifold.		  68271246AA
Exhaust Port Gasket  OE
Head Gasket  OE
Head Bolts / Studs  OE
Rocker Arms (For Optimized Geometry)  OE
Shaft Mount Rocker Arms T&D
Important: Do not use TD 8630 Adjustable Shaft Mount Rockers. Adjuster nut hits the valve cover and cannot be used.		 TD-8631
Suggested Manifold - Edelbrock EDL-7179
Spark Plug Starting Range Autolite AR-5324 Race Plug

Specifications & Features
Specifications & Features:
Material
A356 Aluminum
MSCA Minimum Cross Section Area
2.877 in2
Intake Port Volume
212cc
Intake Port Dimension
1.91"Wx1.91"H
Intake Port Location
Stock
Exhaust Port Volume
64cc
Exhaust Port Dimension
1.865"Wx1.285"H
Exhaust Port Location
Stock
Combustion Chamber Size
69cc
Valve Cover Bolt Pattern
Perimeter Bolt
Valve Angle
Stock
Valve Spring Pocket Diameter
1.625"
Max Valve Spring Pocket Machining
Do Not Machine
Deck Thickness
.750"
Minimum Bore Diameter
3.197"
Flat Mill
.006" per cc/ Maximum 62cc as cast chamber
Angle Mill
.009" per cc/ Maximum 60cc as cast chamber
Note: Angle mills might require a .120" Thick intake gasket.
