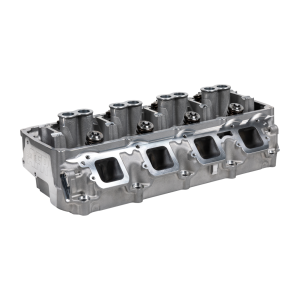

AFR 212cc Gen III 6.2L/6.4L HEMI Aluminum Cylinder Head, CNC Ported, 69cc Chamber, Driver Side
AFR 2521
This is the all new AFR 212cc Black Hawk Gen III HEMI Aluminum As Cast Cylinder Head, 69cc Chamber, Driver Side. You will also need to order AFR part number 2522 to complete a pair of heads.
Compatible with Apache and Eagle engines produced from 2003 through 2023, Gen 3 Hemi 6.2L/6.4L Blocks Only
AFR's CNC-ported cylinder heads for 5.7/6.1L, 6.2/6.4L engines offer excellent low-end and street/strip performance while maintaining strong top-end power. Made from A356 aluminum, the 212cc Black Hawk heads feature fully CNC-ported intake, exhaust, and combustion chambers, and a thick .750” head deck for boosted engines. Enhanced cooling is achieved through improved water jacketing, and a machining option is available for Hellcat supercharger compatibility. Designed for hydraulic roller cams with lifts up to .600”, they come in three versions to suit different builds.
Note: This head will only work on 6.2L/6.4L Blocks for 5.7L/6.1L blocks see PN: AFR 2505
Compatible with Apache and Eagle engines produced from 2003 through 2023, Gen 3 Hemi 6.2L/6.4L Blocks Only
AFR's CNC-ported cylinder heads for 5.7/6.1L, 6.2/6.4L engines offer excellent low-end and street/strip performance while maintaining strong top-end power. Made from A356 aluminum, the 212cc Black Hawk heads feature fully CNC-ported intake, exhaust, and combustion chambers, and a thick .750” head deck for boosted engines. Enhanced cooling is achieved through improved water jacketing, and a machining option is available for Hellcat supercharger compatibility. Designed for hydraulic roller cams with lifts up to .600”, they come in three versions to suit different builds.
Note: This head will only work on 6.2L/6.4L Blocks for 5.7L/6.1L blocks see PN: AFR 2505
Shipping: FREE continental USA ground shipping on ALL AFR Cylinder Heads
Was:
$2,241.00
Sale:
$2,041.00
Save:
9%
Save:
$200.00
Description
AFR Gen III Hemi heads are the highest flowing on the market, view the image with flow numbers attached.
| Basic Package Components | Part # |
| AFR 100% CNC Intake Ports AFR 100% CNC Exhaust Ports AFR 100% CNC Combustion Chambers Competition 5-angle Valve Job |
|
| 8mm Bead Lock Intake Valve 2.125” x 5.135” O.A.L. |
AFR #7274
|
| 8mm Bead Lock Exhaust Valve 1.650” x 5.150” O.A.L. |
AFR #7271
|
| PAC Racing Springs 1.290” OD Hydraulic Roller Dual Valve Drag Race Spring, 140 lbs. on seat, .600” maximum lift, Max RPM 6300-6500 (upgrades available) |
AFR #8017
|
| 10° Chrome Moly Retainers 1.245” O.D x .885” I.D x .655” I.D |
AFR #8520
|
| 10° 8mm Valve Keepers with lashcap recess |
AFR #9009
|
| Hardened Valve Spring Cup 1.380" O.D x 1.300" I.D x .570" I.D |
AFR#8042
|
| Intake Valve Seats 2.200" O.D x 1.750" I.D x .375" Deep |
AFR #9060
|
| Exhaust Valve Seats 1.696" O.D x 1.35" I.D x .375" Deep |
AFR #9073
|
| Intake Bronze Valve Guides 8mm x 2.100" O.A.L |
AFR #9051
|
| Exhaust Bronze Valve Guides 8mm x 2.100" O.A.L |
AFR #9051
|
| Recommended Components | Part # |
| Intake Port Gasket | OE Rubber Seal |
| Hellcat/Blower Intake Port Gasket Important: Do not use your OE gasket as a template to port match your intake manifold. |
68271246AA |
| Exhaust Port Gasket | OE |
| Head Gasket | OE |
| Head Bolts / Studs | OE |
| Rocker Arms (For Optimized Geometry) | OE |
| Shaft Mount Rocker Arms T&D Important: Do not use TD 8630 Adjustable Shaft Mount Rockers. Adjuster nut hits the valve cover and cannot be used. |
TD-8631 |
| Suggested Manifold - Edelbrock | EDL-7179 |
| Spark Plug Starting Range | Autolite AR-5324 Race Plug |
| Specifications & Features | ||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||
AFR Black Hawk Gen III Hemi Cylinder Heads
- With some domed aftermarket pistons, it may be necessary to slightly clearance or modify the piston due to our more efficient heart shaped combustion chamber design. Most of the newer designed dome profiles will clear. AFR strongly recommends material be removed from the piston and not the cylinder head. Our combustion chamber shapes are very critical to flow and altering the cylinder head can adversely affect flow and power production. It is the customers responsibility to verify proper piston to head clearance.
- Heads are designed for 3/8" pushrods. Larger pushrods will not fit without clearancing and is not recommended since some areas are very thin. AFR recommends the use of .120" thick-wall pushrods.
- For ideal geometry and wipe pattern AFR strongly recommends AFR stud mount rockers part #6043 for applications below 7400 RPM and .790 lift. For applications above these limits shaft mount rockers are typically advised.
- VALVE COVERS: AFR designed valvetrain around 06-later gen iii hemi valve cover clearance. Use in 03-05 gen iii hemi may be possible but is not verified or supported by Air Flow Research and additional parts may be required. You must use the 2006 and later plastic valve covers along with the appropriate ignition coils, or an equivalent aftermarket valve cover.
