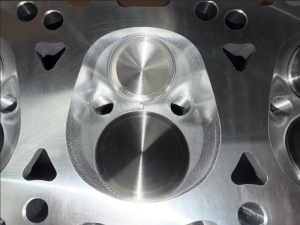

AFR 224cc Gen III 6.2L/6.4L HEMI Aluminum Bare Cylinder Head, CNC Ported, 69cc Chamber, Driver Side, No Parts

AFR 2519
This is the all new AFR 224cc Black Hawk Gen III HEMI Aluminum CNC Ported Cylinder Head, 69cc Chamber, Driver Side. You will also need to order AFR part number 2520 to complete a pair of heads.

Compatible with Apache and Eagle engines produced from 2003 through 2023, Gen 3 Hemi 6.2L/6.4L Blocks Only

Manufactured using the highest quality A356 aluminum and permanent-mold technology, these castings are second to none. Outfitted with AFR's trademark 3/4" thick head deck to meet the boost and power demands of today's OEM and aftermarket modified engines. These heads include improved water jacketing for enhanced cooling while still maintaining a minimum of .200" port to water jacket thickness. Machined to add bolt hole and dowel provisioning for Hellcat superchargers.

Note: Head comes completely bare, no parts.

Note: This head will only work on 6.2L/6.4L Blocks for 5.7L/6.1L blocks see PN: AFR 2515

*Notice Pictures are for reference heads would come bare, no parts.
Shipping: FREE continental USA ground shipping on ALL AFR Cylinder Heads
Was: $1,950.00
Sale: $1,750.00
Save: 10%
Save: $200.00

Qty:
Free Basic Shipping

Description

AFR Gen III Hemi heads are the highest flowing on the market, view the image with flow numbers attached.

Basic Package Components Part #
100% CNC Ported Intake Ports, Exhaust Ports, & Combustion Chamber
Competition 5-angle Valve Job




Recommended Components Part #
Intake Port Gasket OE Rubber Seal
Hellcat/Blower Intake Port Gasket
Important: Do not use your OE gasket as a template to port match your intake manifold.
 68271246AA
Exhaust Port Gasket  OE
Head Gasket  OE
Head Bolts / Studs  OE
Rocker Arms (For Optimized Geometry)  OE
Shaft Mount Rocker Arms T&D
Important: Do not use TD 8630 Adjustable Shaft Mount Rockers. Adjuster nut hits the valve cover and cannot be used.
TD-8631
Suggested Manifold - Edelbrock EDL-7179
Spark Plug Starting Range Autolite AR-5324 Race Plug

Specifications & Features
Material
A356 Aluminum
MSCA Minimum Cross Section Area
3.010 square inches
Intake Port Volume
224cc
Intake Port Dimension
1.95" Width x 1.95" Height
Intake Port Location
Stock
Exhaust Port Volume
64cc
Exhaust Port Dimension
1.865" Width x 1.285" Height
Exhaust Port Location
Stock
Combustion Chamber Size
69cc
Valve Cover Bolt Pattern
Perimeter Bolt
Valve Angle
Stock
Valve Spring Pocket Diameter
1.625"
Max Valve Spring Pocket Machining
Do Not Machine
Deck Thickness
.750"
Minimum Bore Diameter
3.197"
Flat Mill
.006" per cc/ Maximum 62cc chamber
Angle Mill
.009" per cc/ Maximum 60cc chamber
Note: Angle mills might require a .120" Thick intake gasket.
Spark Plug Dimensions
14mm x 1"

AFR Black Hawk Gen III Hemi Cylinder Heads

  • With some domed aftermarket pistons, it may be necessary to slightly clearance or modify the piston due to our more efficient heart shaped combustion chamber design. Most of the newer designed dome profiles will clear. AFR strongly recommends material be removed from the piston and not the cylinder head. Our combustion chamber shapes are very critical to flow and altering the cylinder head can adversely affect flow and power production. It is the customers responsibility to verify proper piston to head clearance.
  • Heads are designed for 3/8" pushrods. Larger pushrods will not fit without clearancing and is not recommended since some areas are very thin. AFR recommends the use of .120" thick-wall pushrods.
  • For ideal geometry and wipe pattern AFR strongly recommends AFR stud mount rockers part #6043 for applications below 7400 RPM and .790 lift. For applications above these limits shaft mount rockers are typically advised.

Details

Shipping Information

  • Item Requires Shipping
  • 35.0 lbs.
  • W24.0000” x H12.0000” x L24.0000”
  • Free Basic Shipping
  • This item ships in its own box.
  • FREE continental USA ground shipping on ALL AFR Cylinder Heads
