Fore Innovations 2018+ Ford F-150 L2 Dual Pump Drop-In Returnless Fuel System - 900+rwhp Capable

FI-91-622
The Fore Innovations 2018+ Ford F-150 L1E Dual Pump Fuel Pump Returnless Fuel System is now available. This module will fit in the OEM fuel tank requires interfacing the OE harness and FPDM in certain applications.. The module consists of a billet top-hat, wiring and pump holder. These components work together to deliver the flow you need and the OEM functionality you want. This system can handle up to 900rwhp on E85 Supplies. Recommended to run one pump full time, then activate secondary pump under load. Supplies High Pressure Fuel Pump (HPFP) and port injection (and small wet nitrous) Includes in-tank supply system that retains OE transfer, fuel level sender, and EVAP functionality, upgraded feed and return lines, high capacity filtration and check valve, flow through t-block direct mounted on HPFP inlet tube, high capacity F2i regulator with provisions for both static and MAP reference. Includes our billet fuel rails for proper port injection supply with E85.

This product has many options see the blue "choose product options" to configure your system and avoid any delays!

Note: This system does NOT include fuel pumps or fuel pump filter they can all be added using the product options.
Pricing: $2,457.00

Customize Your Item

Additional System Options
Add-Ons Options
- Your Bed Size -
 * required
- Your Cab Size -
 * required
- Your Fuel Tank Size -
 * required
- Fuel Filter Options -
 * required
- 2nd Fuel Pump Options -
 * required
- Fuel Pump Options -
 * required
- Fuel Rail Options -
 * required
- Manifold Type -
 * required
Qty:
Free Basic Shipping

Description

This is a stand alone fuel system. Professional installation and a custom tune is required. Qualified installers and tuners must be able to interface to the OE harness and FPDM (if required), understand proper component placement, hose routing, and deliver the vehicle with factory-like pump prime/on/off logic with no error codes. Fore Innovations will supply basic system schematics and detailed component level instructions, and can provide troubleshooting of the performance and function of our system and components.

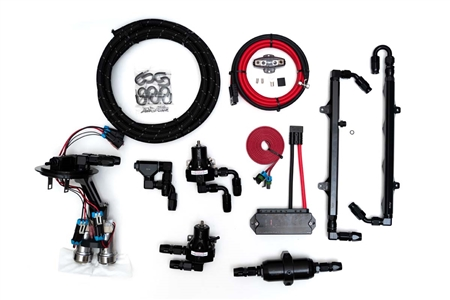

What's included in the base system?

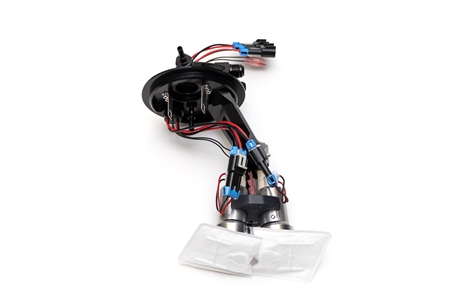

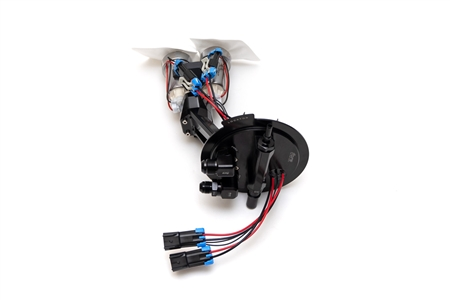

F-150 Dual Pump Module
Dual F2i Fuel Pressure Regulators

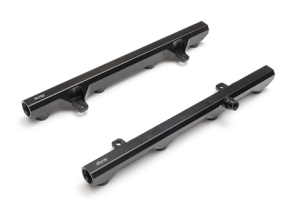

Billet 2018+ Mustang Fuel Rails

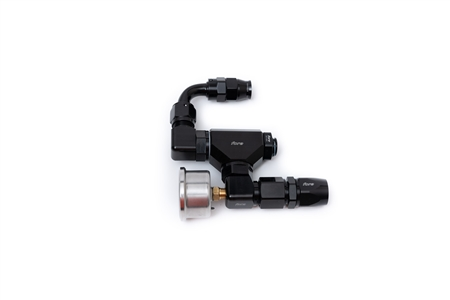

T-block to direct mount on HPFP (High Pressure Fuel Pump)
88mm Cellulose Fuel Filters (upgrades available in the product options)
All fittings, hose, hardware required for typical fuel line plumbing

*Does NOT include fuel pumps they can all be added using the product options.

Fitment:
2018+ Ford F-150

Fuel Type:
Gasoline / race gas: choose if you are will only be running typical pump gas or race gasoline, such as MS109, C16, Q16, etc.

Ethanol blends, gasoline, race gas: choose if you will be running a combination of gasoline, race gas, E85, E98, E85R, C85, etc.

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 50.0 lbs.
  • W7.0000” x H6.5000” x L8.2500”
  • Free Basic Shipping
  • Have a question? Ask the Pros
  • 877-514-9494Mon - Fri 8:00 AM - 4:00 PM PST
