Fore Innovations 2005-2010 Jeep Cherokee WK1 SRT-8 Dual Pump Fuel Pump Billet Module - 1200+rwhp Capable

FI-51-800
The Fore Innovations 2005-2010 Jeep Cherokee WK1 SRT-8 Dual Pump Fuel Pump Billet Module is now available. This module will fit in the OEM fuel tank requires interfacing the OE harness and FPDM in certain applications. The module consists of a billet top-hat, wiring and pump holder. These components work together to deliver the flow you need and the OEM functionality you want. This system can handle up to 1200+rwhp

This product has many options see the blue "choose product options" to configure your system and avoid any delays!

Note: This system does NOT include feed fittings, return fittings, fuel pumps, fuel pressure regulator, in-line fuel filters, fuel lines or fuel pump filters.

*Notice, to use this module you must also install an external fuel pressure regulator, 10 micron or finer micron in-line fuel filter and aftermarket fuel lines all which are NOT included.
Pricing: $541.00

Customize Your Item

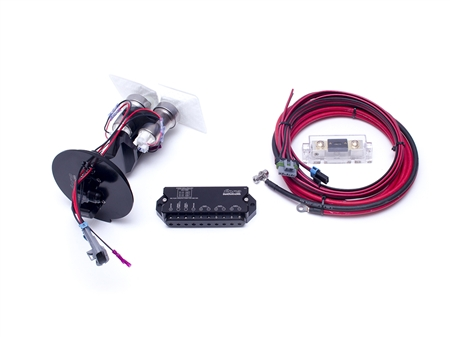

- Electrical Upgrade Options -
 * required
- Feed Fitting Options -
 * required
- 2nd Fuel Pump Options -
 * required
- Fuel Pump Options -
 * required
- Fuel Type -
 * required
- Return Fitting Options -
 * required
Qty:
Free Basic Shipping

Description

What's included in the base system?

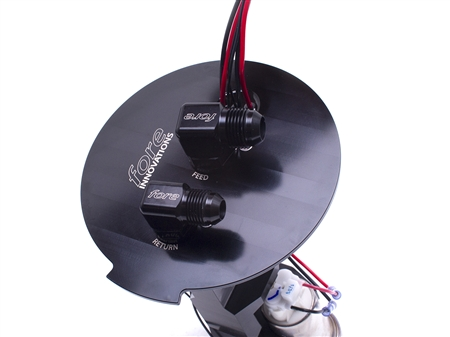

Billet Top Hat

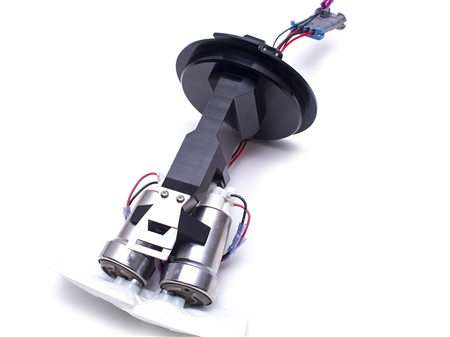

Polymer Dual Fuel Pump Holder
12 AWG insulated pump power wire protrude from top of hermetic seal with bare ends

*This system does NOT include feed fittings, return fittings, fuel pumps, fuel pressure regulator, fuel lines or fuel pump filter.

Module Specs:
Feed Port: Female -10 o-ring
Return Port: Female -8 o-ring
Pump Power Wires: 12 AWG stranded copper, one pair per pump
Dual pump module (Capable of supports 1200+ rwhp)
Use with upgraded fuel lines only
E85 and race fuel compatible (see pump manufacturer recommendations on fuel compatibility)
O-ring feed and return ports
Multiple fuel pump options to accommodate 1200+ rwhp
Anodized black for maximum corrosion resistance
Polymer pump support minimizes pump noise and eliminates electrolysis

Fitment:
2005-2010 Jeep Cherokee WK1 SRT-8

Fuel Type:
Gasoline / race gas: choose if you are will only be running typical pump gas or race gasoline, such as MS109, C16, Q16, etc.
Ethanol blends, gasoline, race gas: choose if you will be running a combination of gasoline, race gas, E85, E98, E85R, C85, etc.
