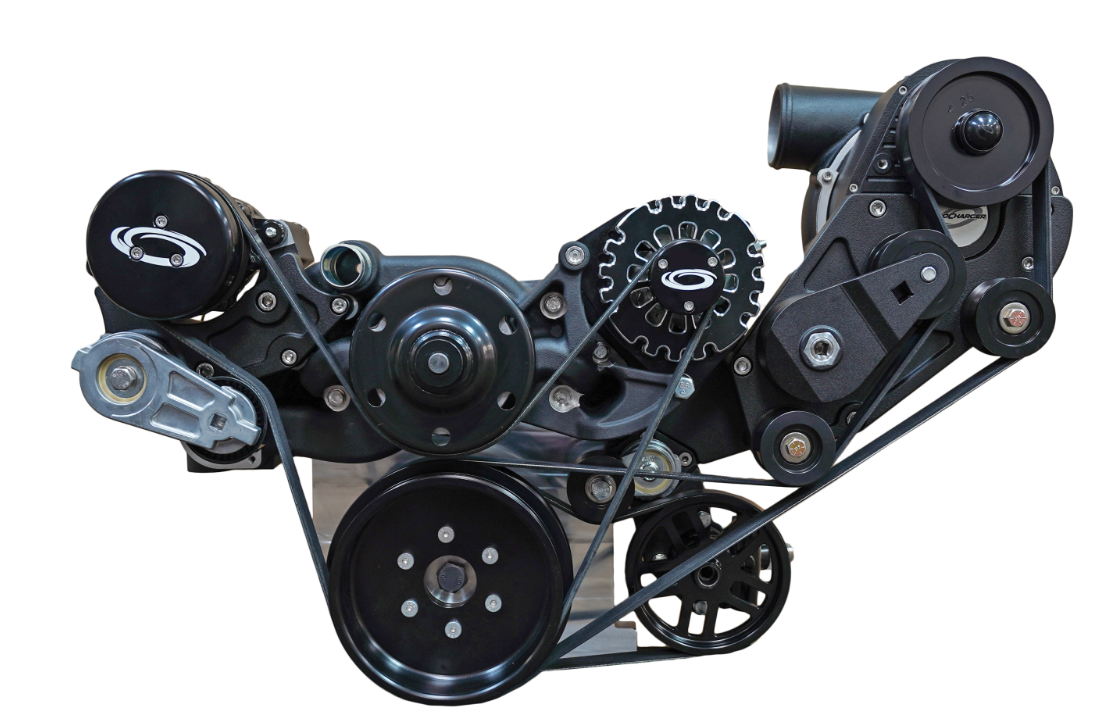

ProCharger Chevy LT Serpentine Front End Accessory Drive Kit With ProCharger Mounting Bracket

1LT400
The ProCharger Accessory Drive Kit offers the sleek design style you expect from our brand, and a unique supercharger bracket design that offers you the convenience of adding the supercharger kit when you are ready. Specifically designed for Chevy LT engines, this kit includes everything you’ll need to fit the accessories you want. The design features our popular 8-rib or 10-rib pulleys that increase grip, reduce stretching and prevent belt slippage when compared to the traditional six rib designs.

Kit will fit any LT block, This system comes with ProCharger supercharger bracket, Alternator bracket and has the option of adding ProCharger supercharger, Power steering bracket & A/C Bracket

Note: This system will work with the any LT intake or ProCharger LT air to water intercooled intake manifold. (Pre-Order)

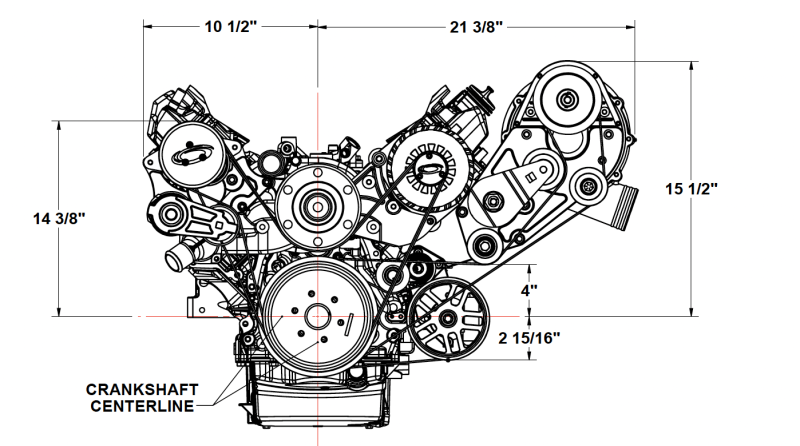

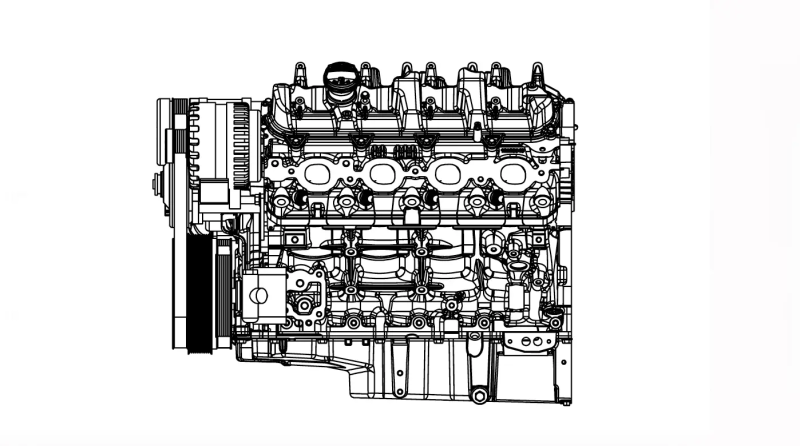

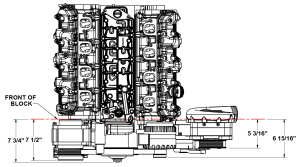

*For LT FEAD Dimension Information See Below!
Pricing: $2,949.00

Customize Your Item

- 10 Rib Belt Drive Option -
- A/C Bracket Options -
- Bypass Valve Options -
- Gearset Upgrade -
- Head Unit Finish Options -
- ProCharger Head Unit Options -
- Intercooler Options -
- Power Steering Bracket Options -
- Main SC Bracket, Alt Bracket & T -
- Intercooler Tubing Options -
Qty:
Free Basic Shipping

Description

ProCharger Base Kit Includes:
Water pump
Water pump pulley, and belt
Crank Pulley and belt
Alternator bracket, pulley, and belt
ProCharger Supercharger Bracket 8 rib, Tensioner & Belt

Or You Can Upgrade To Include The Following:
Power Steering bracket, pulley, and belt
A/C Pulley and belt

Accessories Needed:
A/C Compressor: SD-7B10 Sanden A/C Compressor - 6 Rib
Alternator: GM #20881337 2007-2013 or equivalent
Power Steering: GM Type 2 Power Steering Pump Tuff Stuff 6175AL or equivalence, remote reservoir required for supercharged applications

Additional Notes:
Pinning crank pulley is recommended
Accessory Pulleys included
Can be ordered without A/C
Can be ordered without power steering (for those using OE electric power steering or no power steering at all)
Designed for standard deck height engines will not work with tall deck engines.

Application Notes:
Optional Procharger Head Units available: P-1SC, P-1X, D-1SC, D-1X, F-1A, F-1A-94, F-1X, F-2 (F-1X & F-2 headunits require the 10 rib upgrade kit)
