ProCharger Chevy LS Aluminum Block Transplant Swap Assembly Kit - No SC Included

1LS100-ASMA

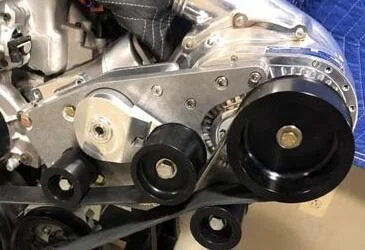

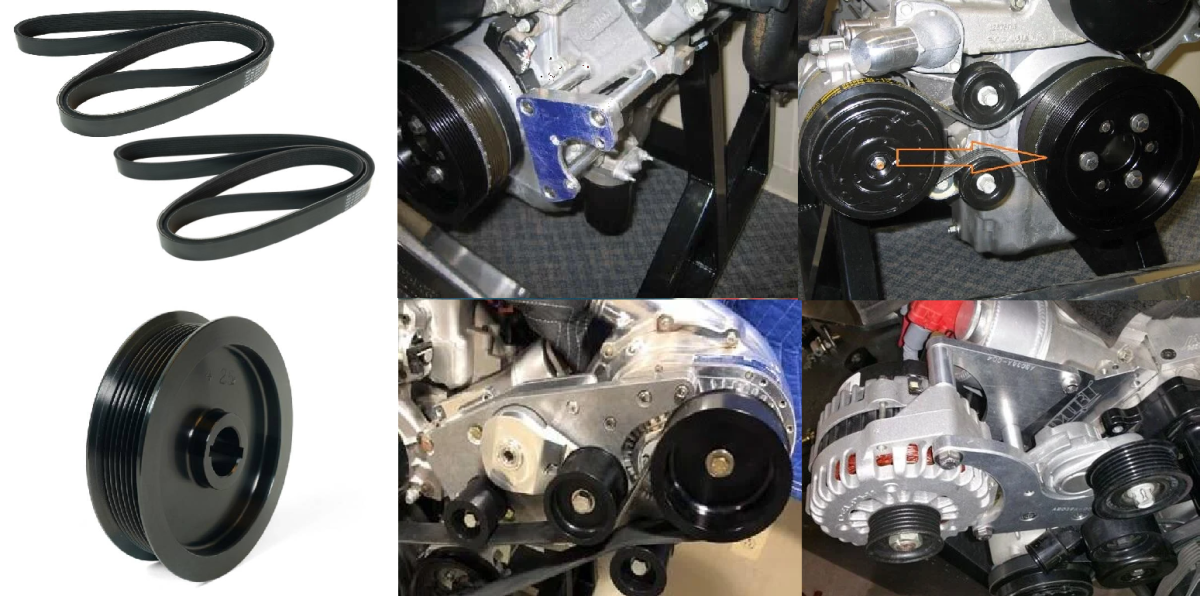

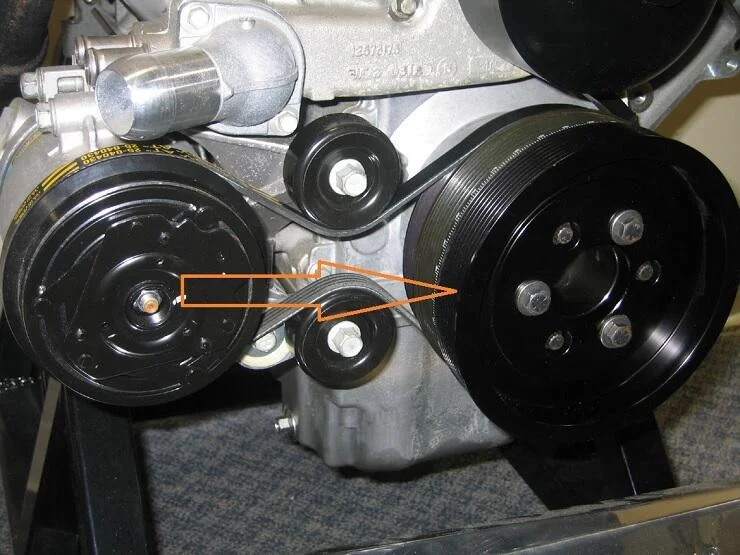

This LS aluminum block transplant swap assembly kit includes 8-rib dedicated main bracket with H/D tensioner, alternator bracket with H/D tensioner, power steering bracket (aluminum block specific), 6-rib belt for accessories, 8-rib 7.65" crank pulley (Requires ATI balancer part #918853), 4" 8-rib supercharger pulley and 8-rib supercharger belt.

Kit will fit any LS aluminum block, This system comes with everything needed to mount all brackets to your block. Does NOT include bypass valve, piping, intercooler, ATI balancer, or ProCharger headunit (all can be added using the product options)

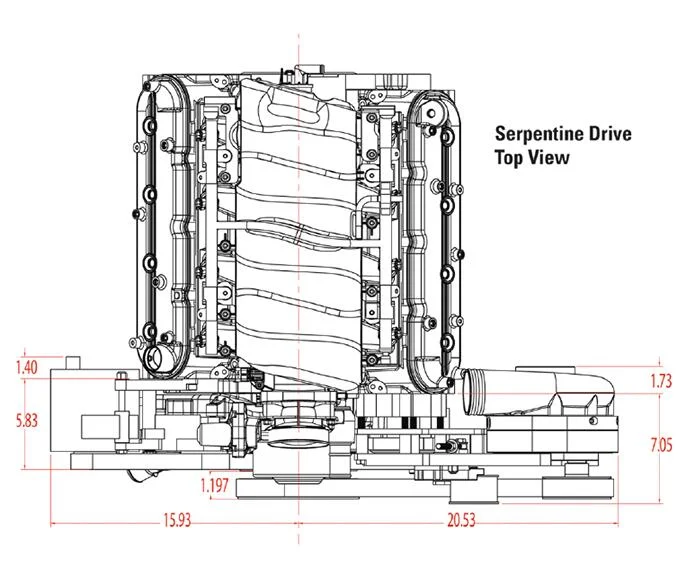

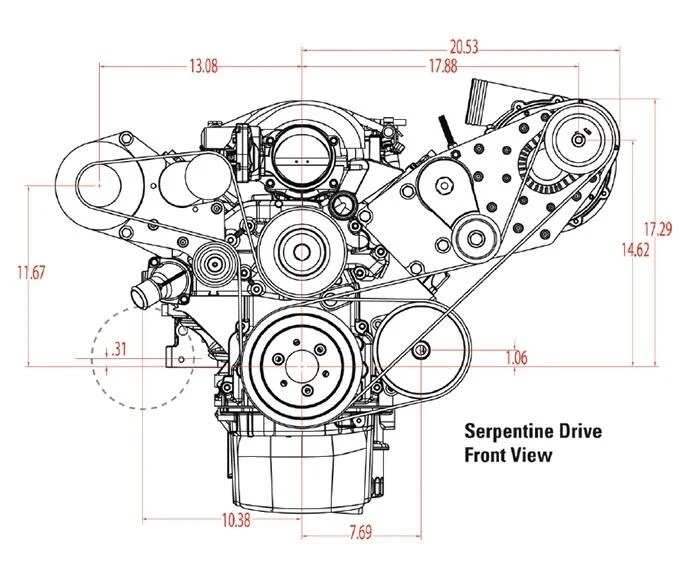

*Notice, this kit is not vehicle specific we have provided dimensional renderings to make sure this system will work for your application.
Pricing: $2,569.45

Customize Your Item

- Bypass Valve Options -
- Crank Pin Kit -
- Gearset Upgrade -
- Head Unit Finish Options -
- ProCharger Head Unit Options -
- Intercooler Options -
- Intercooler Tubing Options -
Qty:
Free Basic Shipping

Description

What Comes In The Box?
3LSBB-004 - LS Dedicated 8-Rib Main Bracket with HD Tensioner

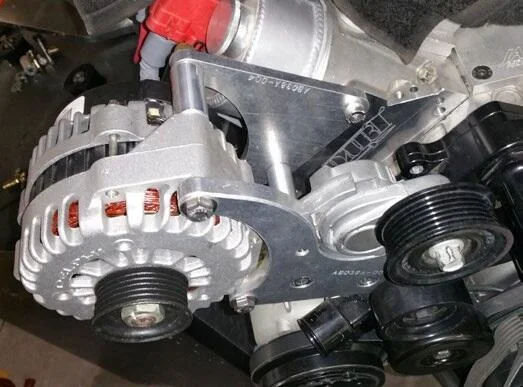

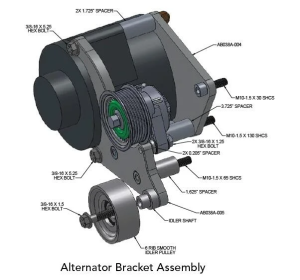

3LSAT-002 - LS Alternator Bracket with HD Tensioner

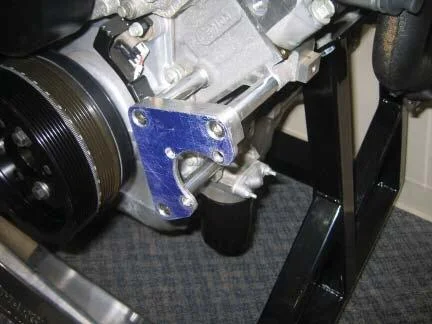

3LSPS-001 - LS Power Steering Bracket (Aluminum Block Specific)

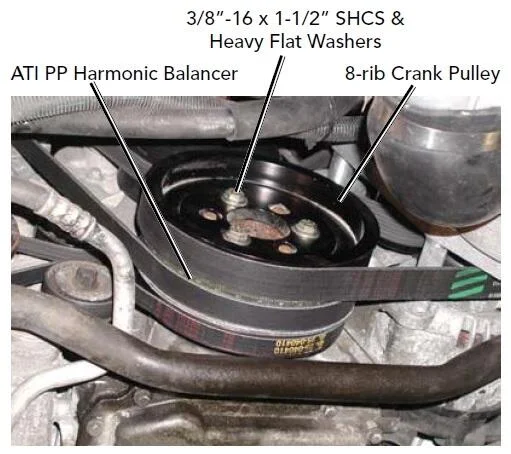

DC017A-008 - 8-rib 7.65" Crank Pulley (Bolts To ATI #918853 Balancer)
3LSDR-001 - Crank Pulley Hardware Bag

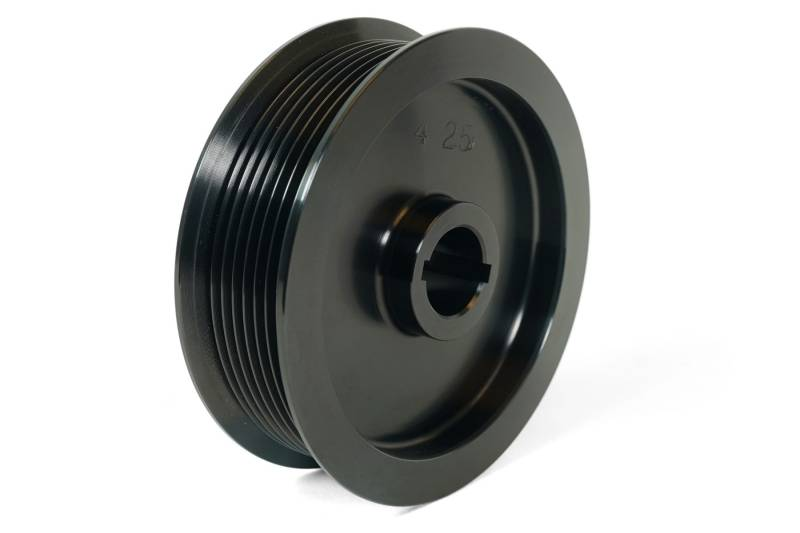

DP400I-8SC - 8-Rib 4" Supercharger Pulley
DB703I-006 - 6-Rib Accessory Belt
DB660I-008 - 8-Rib Supercharger Belt

Additional Parts That Are Required For Install
Power Steering Components Required: GM PS pump #21997867 and PS pulley #12568997
Balancer Required: ATI #918853
