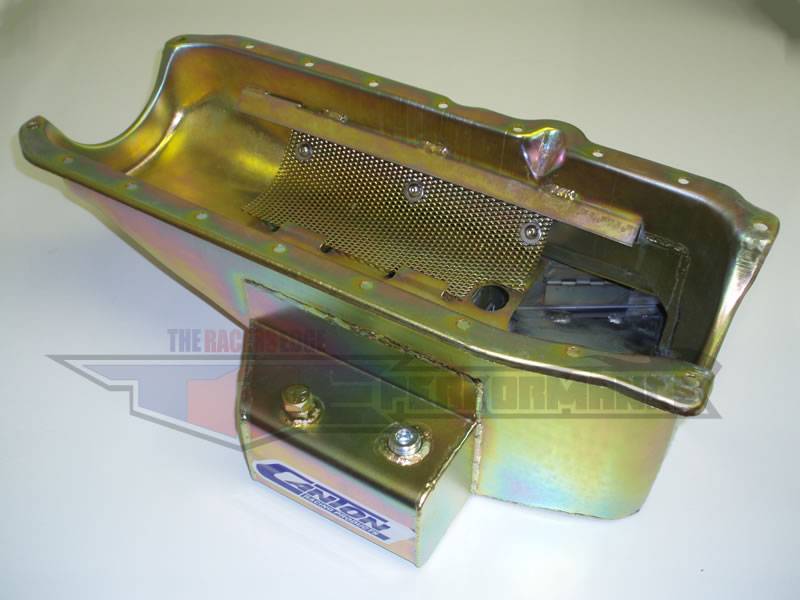

Chevy Corvette Late-model 84-96 Canton Oil Pan

15-240T
This SBC late Corvette road race pan is for ’86 and newer blocks with one piece seal. It is designed for 84-96 Corvettes, but will fit in early corvettes as well. It has a 7" deep, 13-3/4" wide, 12" long sump, with a 7 quart system capacity. It includes a removable one-way screen windage tray and built in crank scraper, a trap door baffle assembly and an oil temperature fitting and a magnetic drain plug. This pan requires one of our four pickups and will clear 383 stroker.
Was: $470.40
Sale: $399.00
Save: 15%
Save: $71.40

Qty:
Free Basic Shipping

Description

FEATURES: 5 Trap door baffles, removable one way screen windage tray with built in crank scraper, oil temp fitting, magnetic drain plug, 20mm fitting for low oil warning sender.

STYLE: Designed for 84-96 Corvettes, this pan is 7" deep so it fits well in a variety of chassis where low ground clearance is an issue. These pans are also being used in Corvette Drag Race Cars with great success.

SIZE: 7" Deep, 13-3/4" wide, 12" long sump holds 6 quarts which gives a 7 quart system capacity.

STARTER: Works with stock starter.

OIL PAN PART #: 15-240T for Corvettes with 86 and newer blocks with one piece seal.

RECOMMENDED ACCESSORIES:

OIL PUMP PICKUPS:
PART #: 20-044 Pickup for Standard Volume Melling M55 & M55A
PART #: 20-049 Pickup for Standard Volume Melling M155 3/4" dia.
PART #: 20-074 Pickup for High Volume Melling M55HV
PART #: 20-079 Pickup for High Volume Melling M155HV 3/4" dia.

GASKETS:
PART #: 88-100T Gasket Set for 1986+ SBC blocks.

Shipping Information

  • Item Requires Shipping
  • 20.0 lbs.
  • W24.0000” x H10.0000” x L10.0000”
  • Free Basic Shipping
