Toyota 1JZ-GTE 550cc High Resistance Fuel Injectors
SL9-550
These RC Engineering 550cc High Resistance Saturated fuel injectors are flow matched and will fit every model, engine, type or style for the following vehicles:
ALL Top Feed 1JZ-GTE
Part # SL9-550
ALL Top Feed 1JZ-GTE
Part # SL9-550
Description

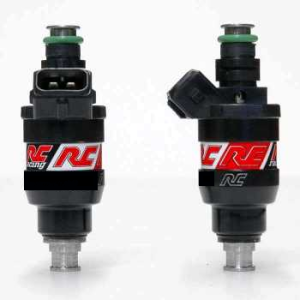

Included: 6 Denso style injectors and flow sheets. The photo is an example of a similar set.
Notes:
1) May need injector clips. If you would like new OBD1 Bosch EV1 center notch style injector clips, please select them from the drop down menu above - additional $29.95.
Size Calculation
To determine what size injectors you should use, please visit : RC Engineering's Technical Notes
Specifications
Flow Rate in CC per minute: 550CC/min @ 43.5 PSI
Flow Rate in LB per hour: 52LBS/HR @ 43.5 PSI
Resistance: 12.5 ohms
Voltage: 8-15 Volts, nominal 13.5 Volts
Amperage: 1.0 Amps
Pressure: Min 30PSIG/ Max 100PSIG
Part Number: SL9-550
Warranty: 1 year warranty!
Notes:
1) May need injector clips. If you would like new OBD1 Bosch EV1 center notch style injector clips, please select them from the drop down menu above - additional $29.95.
Size Calculation
To determine what size injectors you should use, please visit : RC Engineering's Technical Notes
Specifications
Flow Rate in CC per minute: 550CC/min @ 43.5 PSI
Flow Rate in LB per hour: 52LBS/HR @ 43.5 PSI
Resistance: 12.5 ohms
Voltage: 8-15 Volts, nominal 13.5 Volts
Amperage: 1.0 Amps
Pressure: Min 30PSIG/ Max 100PSIG
Part Number: SL9-550
Warranty: 1 year warranty!
Shipping Information
- Item Requires Shipping
- 2.0 lbs.
- W5.0000” x H5.0000” x L5.0000”
- Free Basic Shipping
