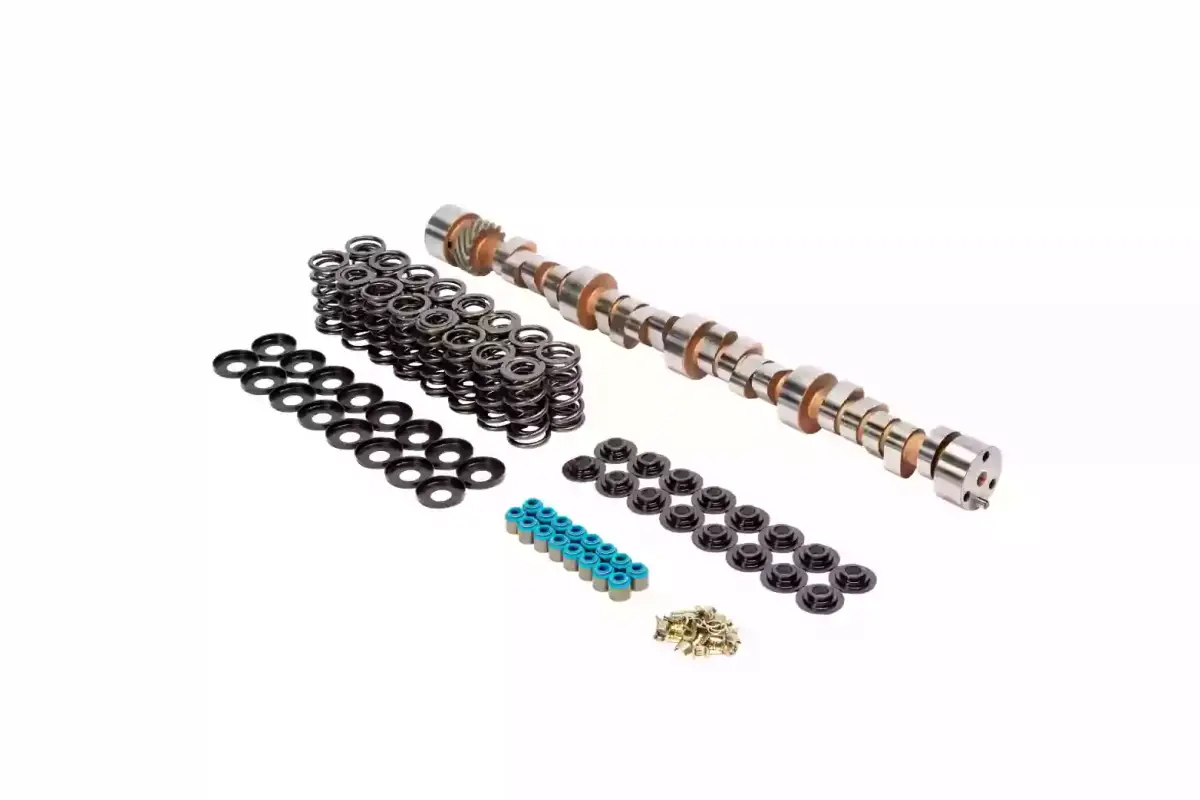

AFR Stage 1 Small Block Chevy Competition-Series Hydrualic Roller Camshaft & Valve Spring Kit - Billet 8620 Steel Core

AFR 5794
In Stock
Pricing: $1,058.00

Free Basic Shipping
Qty:
Need help matching a part number? Call 877-514-9494.
AFR is expanding its camshaft and valvetrain lineup with new SBC cam and spring kits engineered for popular aftermarket cylinder head combinations. Built for street-performance Small Block Chevy heads using conventional 11/32"" square-groove valves, these kits combine proven AFR camshaft profiles with matched springs, retainers, locks, spring cups/locators, and multiple seal options for common guide-boss sizes.

Developed in collaboration with Andrews Products, renowned for championship-winning camshaft design and precision grinding, these new profiles further AFR’s commitment to giving American muscle the performance it was built for.

California Residents: Prop 65 Warning

WARNING: Cancer and Reproductive Harm

www.p65warnings.ca.gov

Description

Camshaft Specs:
Cam Style: Retro Fit Hydraulic roller.  (OE Roller Blocks 1987-2003 require the use of a Cam buttom)
Camshaft Use: Strip/high-RPM
Camshaft Description: The AFR Camshaft was developed to pair perfectly with AFR’s Eliminator CNC cylinder heads. Ideal for high-RPM, track focused engines.
Intake Duration at .050-inch Lift: 224/230
Valve Lobe Lift: .365
Valve Lift with Factory 1.5 Rocker Arm Ratio: 0.53X int./0.54X exh.
Valve Lift with Factory 1.6 Rocker Arm Ratio: 0.56Xint./.058Xexh.
Lobe Separation (degrees): 112
Intake Centerline: 108
Camshaft Gear Attachment: 3-bolt
Valve Springs Required: Yes

What's Included:
AFR 6015 - SBC Stage 1 Camshaft
AFR-8017-16 - .600 Lift Valve Springs
AFR-8514-16 - 7 Degree Steel Retainers
AFR 9007-16 - 7 Degree Valve Locks
AFR 8042-16 - O.D. Spring Cup 1.380 OD x 1.300 ID x .570 ID (Fits 8017 &8019 spring)
AFR 6616-16/6613 - Valve seals for .530"" guide-boss applications & .500""/.502"" guide-boss applications

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 12.0 lbs.
  • W24.0000” x H5.0000” x L5.0000”
  • Free Basic Shipping
