AFR Stage 1 Small Block Ford Competition Series Hydraulic Roller Camshaft and Valve Spring Kit - Billet 8620 Steel Core

AFR 5823
AFR is expanding its camshaft and valvetrain lineup with new SBF cam and spring kits engineered for popular aftermarket Windsor cylinder head combinations. Built for street-performance small block Ford heads using conventional 11/32"" square-groove valves, these kits combine proven AFR camshaft profiles with matched springs, retainers, locks, spring cups/locators, and multiple seal options for common guide-boss sizes.

Developed in collaboration with Andrews Products, renowned for championship-winning camshaft design and precision grinding, these new profiles further AFR’s commitment to giving American muscle the performance it was built for.
Pricing: $1,058.00

Qty:
Free Basic Shipping

Description

Camshaft Specs:
Cam Style: Retro Fit Hydraulic roller.
Camshaft Use: Strip/high-RPM
Intake/Exhaust Duration at .050-inch Lift: 216/224
Valve Lobe Lift: .345
Valve Lift with Factory 1.6 Rocker Arm Ratio: 0.544int./.0552exh.
Lobe Separation (degrees): 112
Camshaft Gear Attachment: 1-bolt
Valve Springs Required: Yes

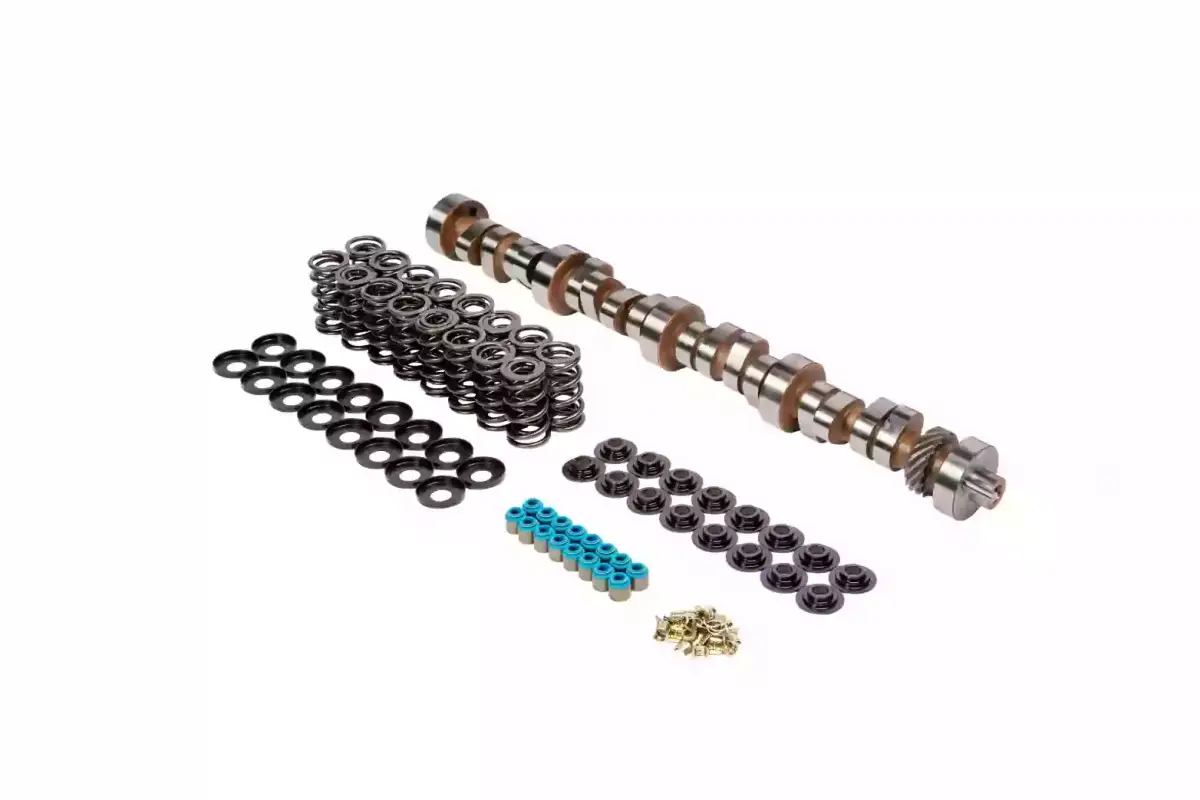

What's Included:
AFR-6001 - AFR Stage 1 SBF Hydraulic Roller Camshaft
AFR-8017 - .600 Lift Hydraulic Roller Valve Springs
AFR-8514-16 - 7 Degree Steel Retainers (set of 16)
AFR 8042-16 - OD Spring Cup 1.380 OD X 1.300 ID X .570 ID
AFR 6616-16 / 6613 - Valve seals sets for .530"" guide-boss applications and .500""/.502"" guide-boss applications

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 12.0 lbs.
  • W24.0000” x H5.0000” x L5.0000”
