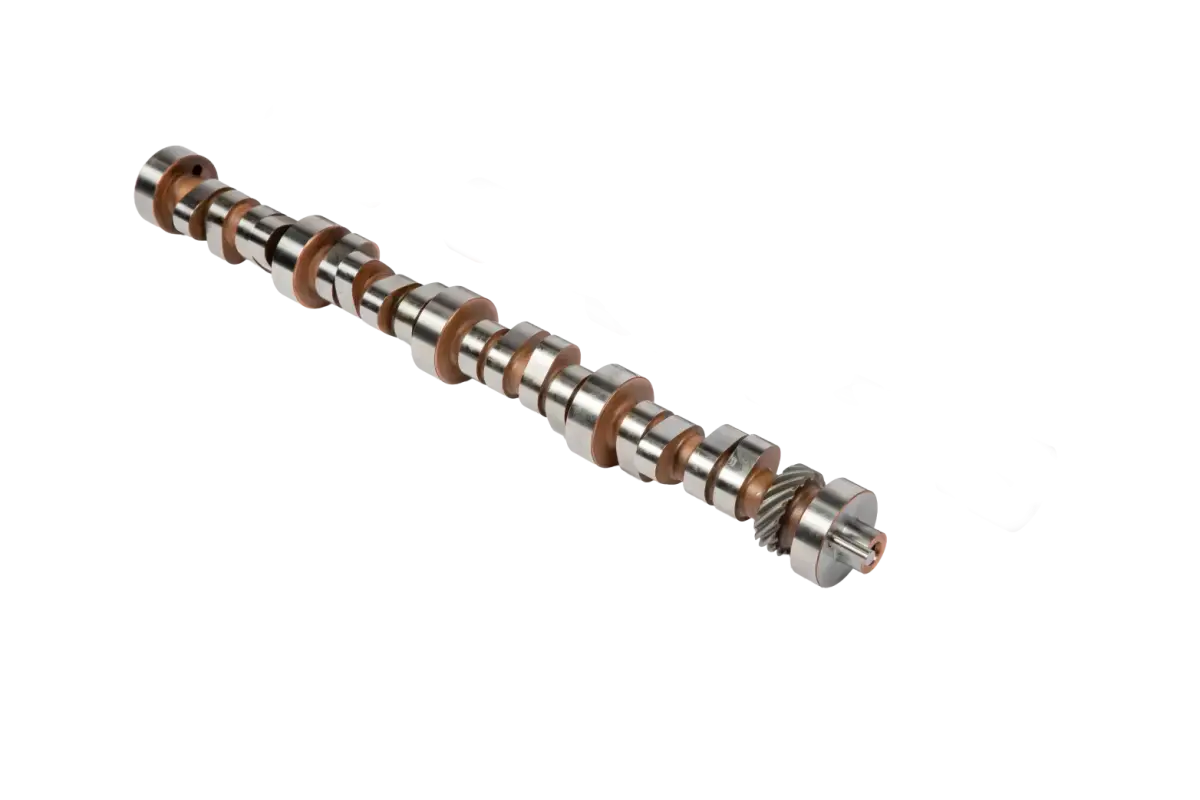

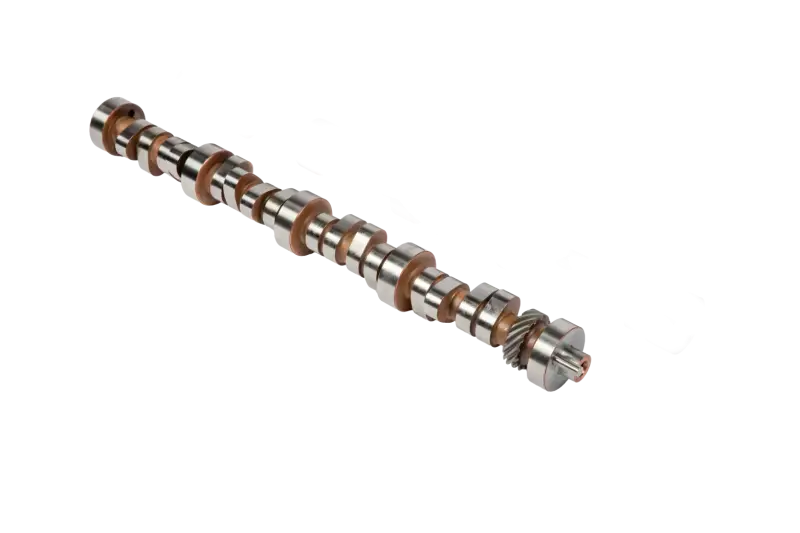

AFR Stage 2 Small Block Ford Hydraulic Roller Camshaft - Billet 8620 Steel Core

AFR 6002
In Stock
Pricing: $449.00

Free Basic Shipping
Qty:
Need help matching a part number? Call 877-514-9494.
Air Flow Research, the authority in high-performance CNC cylinder heads for over 55 years, proudly introduces its latest innovation: custom camshafts for the iconic Small Block Ford 302 and 351 Windsor. Designed to fully exploit the airflow and efficiency of AFR’s Renegade CNC and Enforcer As-Cast cylinder heads, the Stage 2 profile builds on our proven Stage 1 foundation — delivering harder-hitting midrange torque, exceptional throttle response, and a powerful top-end pull that continues cleanly past 6,500 RPM.

Developed in collaboration with Andrews Products, renowned for championship-winning camshaft design and precision grinding, these new profiles further AFR’s commitment to giving American muscle the performance it was built for.

California Residents: Prop 65 Warning

WARNING: Cancer and Reproductive Harm

www.p65warnings.ca.gov

Description

Camshaft Specs:
Cam Style: Retro Fit Hydraulic roller.
Camshaft Use: Strip/high-RPM
Intake/Exhaust Duration at .050-inch Lift: 228/232
Valve Lobe Lift: .354
Valve Lift with Factory 1.6 Rocker Arm Ratio: 0.563int./.0566exh.
Lobe Separation (degrees): 112
Camshaft Gear Attachment: 1-bolt
Valve Springs Required: Yes

Cam Features:
Upgraded to industry-preferred 8620 steel for superior strength and durability
• Ideal for high-RPM builds, power adder applications, and aggressive street use
• Exceptional wear resistance for long-term valvetrain stability
• Improved core hardness allows for more precise and consistent grinds
• Excellent response to heat-treating for a hardened surface without sacrificing ductility
• Trusted in top-tier racing environments—now included in every AFR camshaft

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 12.0 lbs.
  • W24.0000” x H5.0000” x L5.0000”
  • Free Basic Shipping
