Fore Innovations 2008-2009 Pontiac G8 / 2014-2017 Chevy SS V8 L3 Triple Pump Return-Style Fuel System - 1000+rwhp on gas (Regulator BEFORE Rails)
Return fuel system capable of 1200+ rwhp with three fuel pumps. (recommend to run one pump full time, then activate secondary pumps under load) Fuel rails in parallel with regulator before rails (deadhead). Includes in-tank supply system that retains OE transfer, fuel level senders, and EVAP functionality, upgraded feed and return lines, high capacity filtration and check valve, and high capacity F4i regulator with boost reference.
This product has many options see the blue "choose product options" to configure your system and avoid any delays!
Note: This system does NOT include fuel pumps or fuel pump filter they can all be added using the product options.
*Notice, We do not recommend this configuration with LSA or LS9 blowers unless the customer is willing to cut off the tabs on the back of the OE blower housing in order to install conventional fittings. (not low profile 180s)
Description

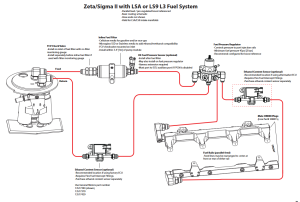

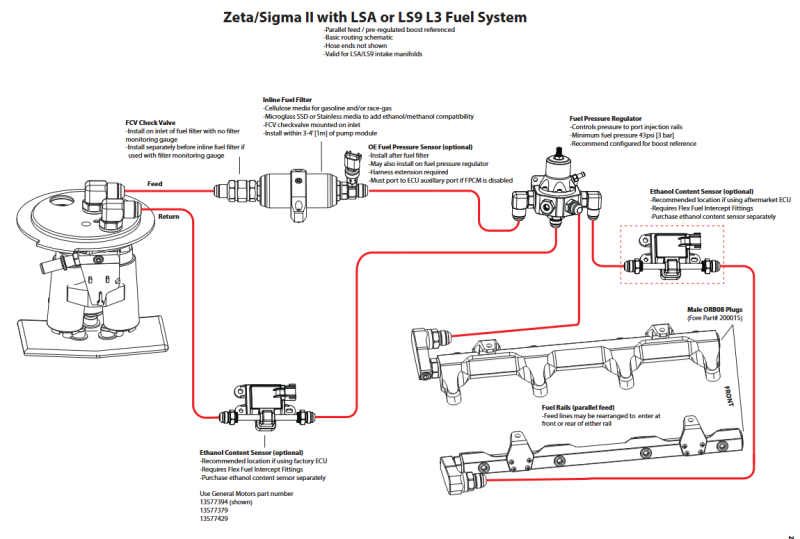

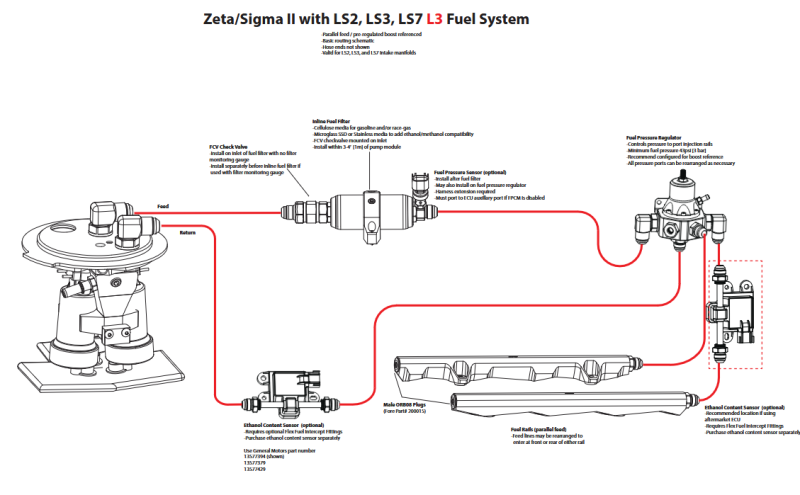

This is part of a stand alone fuel system. Professional installation and a custom tune is required. Qualified installers must be able to interface to the OE harness and FPDM/FPCM, understand proper component placement, hose routing, and deliver the vehicle with factory-like pump prime/on/off logic with no error codes. Fore Innovations will supply basic system schematics and detailed component level instructions, and can provide troubleshooting of the performance and function of our system and components.

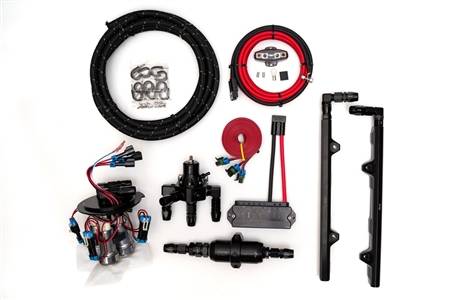

What's included in the base system?
Fuel Pump Module (triple pump)
F4i Fuel Pressure Regulator
88mm Inline Fuel Filter
FCV Checkvalve
All fittings, hose, and hardware necessary to complete typical fuel line plumbing
-30 feet of fuel line (your choice)
-Qty 10, billet compression style hose ends
-Qty 7, billet low profile 90 degree AN to o-ring fittings
-Qty 3, billet straight AN to o-ring fittings
-Qty 3, billet o-ring plugs
-Qty 10, hose straps with stainless mounting screws
-Qty 1, 1/8 NPT plugs
Fitment:
2008-2009 Pontiac G8 V8
2014-2017 Chevy SS V8
Frequent Asked Questions
Q: Can I use this system with E85?
A: Yes, as long as you select microglass ssd or stainless filter element and select E85 rated fuel pumps.
Q: What do I need to add a Flex-Fuel sensor to this system?
A: Fore offers flex-fuel intercept fittings that uses a GM/Continental style flex-fuel sensor which is good for those making 1100 HP if you're making over 1100 HP we recommend the AFD E-Sense Billet Sensor which can have fittings up to -12 AN which is capable of handling 2000+ HP.
Q: Should I select the FC2 or FC3 controller?
A: FC2: controller can only operate two pumps simultaneously, using OE or aftermarket switching signal. Best for controlling two small fuel pumps for street duty, or two large fuel pumps for track use only.
FC3: controller can run 1, 2, or 3 pumps full time, with remaining pumps activated on demand. Requires external switch (i.e. Hobbs, RPM, etc) best for controlling two or three large fuel pumps for street duty and minimizing heat.
Q: What is the difference between PTFE and RH235 Fuel Hose?
A: PTFE Hose: Lasts indefinitely with all fuel types and is non-permeable (no fuel odor in enclosed spaces). Downsides are longer installation times, stainless steel outer braid can scratch surfaces and make noise/vibrations.
Red Horse 235 Hose (RH235): Features nylon outer sleeve protects surfaces and reduces noise/vibration and they're faster to assemble. Downsides are they only have a 5–7 year service life and requires a cable cutter to cut.
