Fore Innovations 2005-2010 Ford Mustang GT 4.6L L2 Dual Pump Returnless Fuel System - 750rwhp on gas

FI-47-502
The Fore Innovations 2005-2010 Ford Mustang GT 4.6L L2 Dual Pump Fuel Pump Returnless Fuel System is now available. This module will fit in the OEM fuel tank requires interfacing the OE harness and FPDM in certain applications. The module consists of a billet top-hat, wiring and pump holder. 750+ rwhp capable returnless fuel system with efficient hose routing. The feed line input to the front of the driver side rail and crosses over behind the motor.

This product has many options see the blue "choose product options" to configure your system and avoid any delays!

Note: This system does NOT include fuel pumps or fuel pump filter they can all be added using the product options.

*Notice, 07-10 mustang gt's requires the equivalent year gt500 level sender and some model years may also require GT500 fuel tank access panel.
Pricing: $1,245.00

Customize Your Item

- Fuel Filter Options -
 * required
- Fuel Line Type -
 * required
- Fuel Pump Options -
 * required
- Fuel Rail Options -
 * required
- AN Wrench Options -
 * required
Qty:
Free Basic Shipping

Description

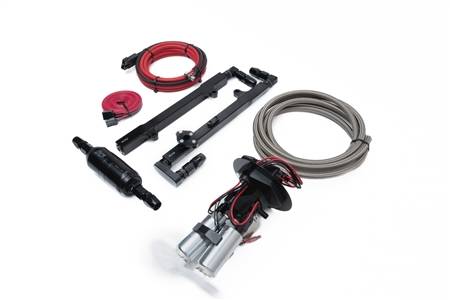

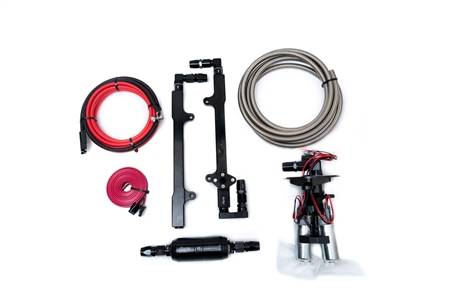

What's included in the base system?
S197-S Fuel Pump Module
Fore Innovations 3V Monoblock Fuel Rails
88mm Inline Fuel Filter
All fittings, hose, and hardware necessary to complete a typical installation
15 feet of fuel line and seven matching hose ends (your choice of PTFE or Startlite hose)
three straight o-ring fittings
three 90 degree low profile billet o-ring fittings
one 180 degree low profile billet o-ring fittings
two 0.6" o-ring extensions
two o-ring plugs
two 1/8 NPT plugs
5 hose straps with self drilling stainless mounting screws

Fitment:
2005-2010 Mustang GT

Frequent Asked Questions

Q: Can I use this system with E85?
A: Yes, as long as you select microglass ssd or stainless filter element and select E85 rated fuel pumps.



Q: What is the difference between PTFE and RH235 Fuel Hose?
A: PTFE Hose: Lasts indefinitely with all fuel types and is non-permeable (no fuel odor in enclosed spaces). Downsides are longer installation times, stainless steel outer braid can scratch surfaces and make noise/vibrations.

Red Horse 235 Hose (RH235): Features nylon outer sleeve protects surfaces and reduces noise/vibration and they're faster to assemble. Downsides are they only have a 5–7 year service life and requires a cable cutter to cut.
