LS Transplant – Single Supercharger Kit
ARP-K-GM-LS1003
The TorqStorm Superchargers transplant kits are some of our most versatile kits. These kits can be offered with accessories, or they can utilize most O.E. accessories that would pair with the same spacing and water pump your kit is for. We offer these kits in all 3 spacings that came O.E. on LS engines. Pick your spacing, the side of the engine you want the Supercharger mounted, black anodizing or natural billet finish, and the pulley size for the Supercharger. These kits are also offered with an ATI Super Damper or our hub kit that utilizes the O.E. style damper.
Pricing:
$3,600.00
Description
KIT DESCRIPTION:

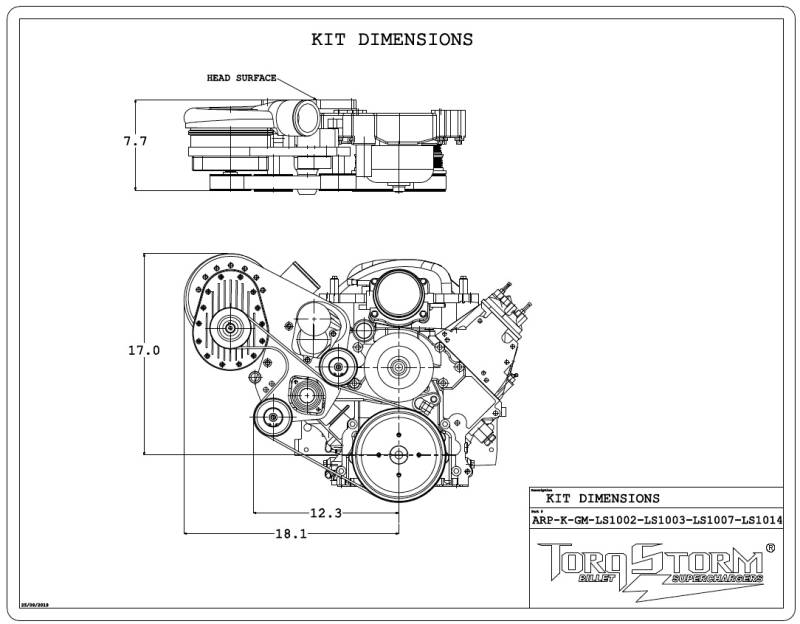

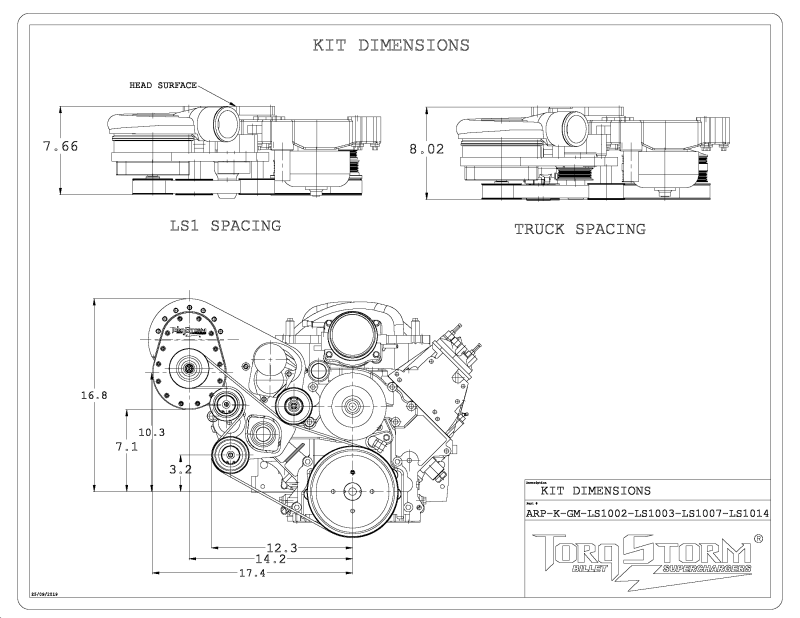

ARP-K-GM-LS1002 -2 LS1 Camaro spacing, passenger side mounted Supercharger. LS1 Camaro water pump is required.
ARP-K-GM-LS1003 -3 Truck spacing passenger side mounted Supercharger. Water pump from 99-13 GM truck is required.

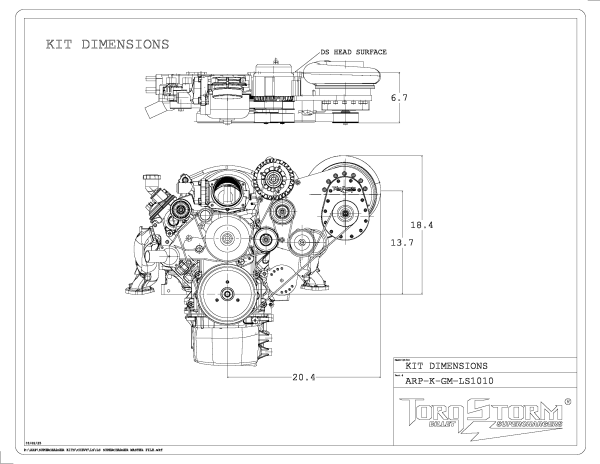

ARP-K-GM-LS1010 -2 LS1 Camaro spacing, Driver side mounted Supercharger. LS1 Camaro water pump is required. This bracket holds a GM 130, or 244 cased ALT, and a GM type 2 Power steering pump. Accessories are not included. you can contact sales to add the accessories. This kit works with most High mount A/C compressor kits.

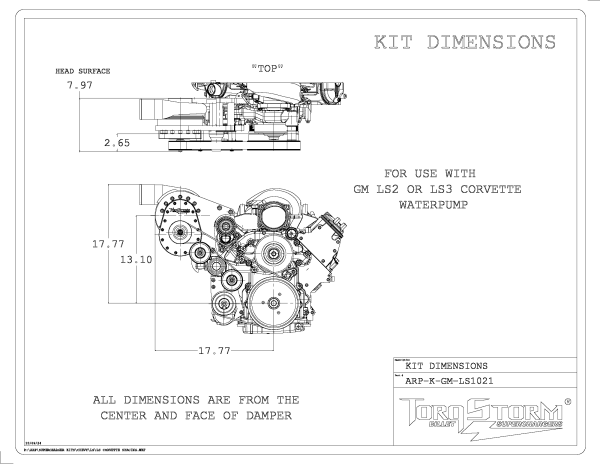

ARP-K-GM-LS1021 -1 Corvette spacing passenger side mounted Supercharger. LS2 or LS3 corvette water pump is required. This kit does not fit in the Corvette chassis.

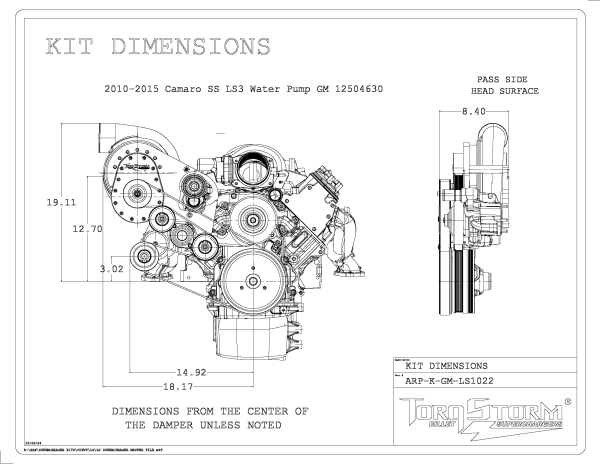

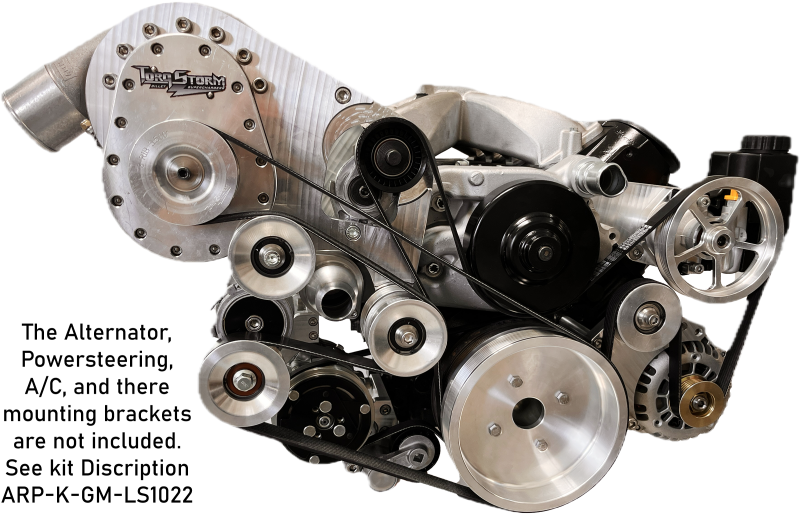

ARP-K-GM-LS1022 -3 Truck spacing passenger side mounted Supercharger. LS3 5TH gen Camaro water pump is required.
ARP-K-GM-LS1023 -3 Truck spacing driver side mounted Supercharger. Water pump from 99-13 GM truck is required. This bracket holds a GM 130, or 244 cased ALT, and a GM type 2 Power steering pump. Accessories are not included. you can contact sales to add the accessories. This kit works with most High mount A/C compressor kits.
These are kits that do not include accessories, for kits that include accessories, check out our PLUS kits. You can also contact sales to add the needed accessories to your kit.

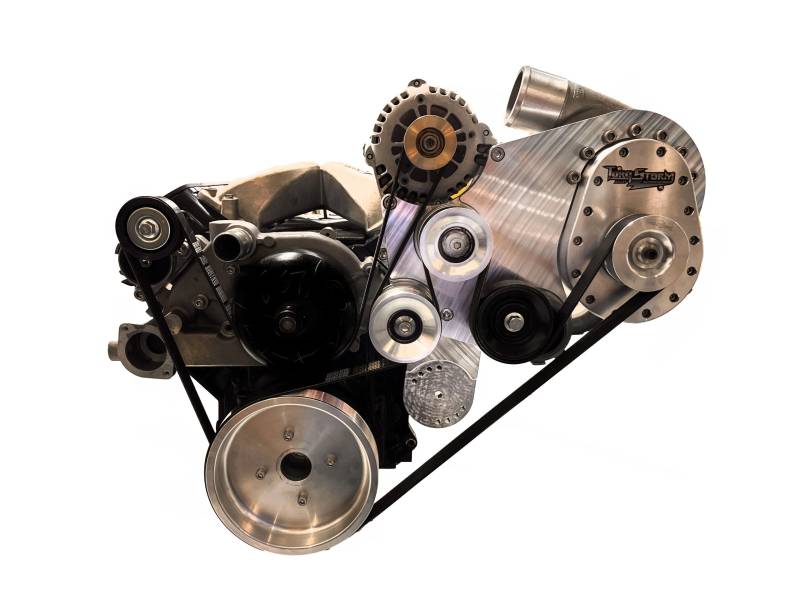

LS swapping your vehicle? We have the Boost Solution for you. Our very popular LS Transplant kit is designed to fit in a wide variety of vehicles, from your classic muscle car, to jeeps, drift cars and off road buggy’s. TorqStorm Superchargers are capable of gains above 150whp+ with supportive mods. This kit will include the Supercharger, Brackets, 8 rib belt drive, hardware, air filter, BOV and aluminum weld in bung, straight thermostat housing, drill and pin kit, and detailed color instructions. Everything to mount the supercharger to your engine. Available in Truck and LS1/F-body spacing and Corvette spacing. There are many options for fuel system, Supercharger intake plumbing, intercooling, charger air plumbing and tuning. We leave these variables up to the installation shop or the end user. You can finish the kit the way you want with the pieces you want. Buying low quality parts in a high priced kit – only to replace them with higher quality parts to finish the project – is now a thing of the past. Spend the money on the parts you really want and need. TorqStorm has a few optional pieces along with information to help you complete your kit. Please contact us for more info.
Not for use with a motor vehicle pollution control device or system.
Intercooling is suggested on all non-carbureted applications. A bung is included for water meth injection.
Blow-thru carburetor required
Shipping in the 48 Contiguous States (Alaska, Hawaii & international, please contact us for a shipping quote)
Average lead times are typically 4 weeks for standard finish. Up to an additional 2 weeks for black anodized kits.
Important! Be sure to add your phone number in the “notes section” on the PayPal check out page in case we have any questions pertaining to your order. Thank you.
This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles and Racing Use Only Vehicles.
The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles:
1965 and older U.S. manufactured California Certified vehicles
1967 and older U.S. manufactured Federally Certified vehicles
1967 and older Foreign manufactured vehicle
The following vehicles are considered Racing Use Only Vehicles:
Racing Use Only Vehicles are vehicles that are used exclusively for competition and that are not registered and that may never be used on the street
WARNING: It is against the law to install this part on an Emissions Controlled Vehicle
The following vehicles are considered Emissions Controlled Vehicles:
1966 and newer U.S. manufactured California Certified vehicles
1968 and newer U.S. manufactured Federally Certified vehicles
1968 and newer Foreign manufactured vehicle
*** If you cancel your order, the PayPal transaction fee will not be refunded to you. PayPal deducts this fee from us.
*** Be sure this kit fits your application! If you have any questions feel free to Contact us
ARP-K-GM-LS1002 -2 LS1 Camaro spacing, passenger side mounted Supercharger. LS1 Camaro water pump is required.
ARP-K-GM-LS1003 -3 Truck spacing passenger side mounted Supercharger. Water pump from 99-13 GM truck is required.
ARP-K-GM-LS1010 -2 LS1 Camaro spacing, Driver side mounted Supercharger. LS1 Camaro water pump is required. This bracket holds a GM 130, or 244 cased ALT, and a GM type 2 Power steering pump. Accessories are not included. you can contact sales to add the accessories. This kit works with most High mount A/C compressor kits.
ARP-K-GM-LS1021 -1 Corvette spacing passenger side mounted Supercharger. LS2 or LS3 corvette water pump is required. This kit does not fit in the Corvette chassis.
ARP-K-GM-LS1022 -3 Truck spacing passenger side mounted Supercharger. LS3 5TH gen Camaro water pump is required.
ARP-K-GM-LS1023 -3 Truck spacing driver side mounted Supercharger. Water pump from 99-13 GM truck is required. This bracket holds a GM 130, or 244 cased ALT, and a GM type 2 Power steering pump. Accessories are not included. you can contact sales to add the accessories. This kit works with most High mount A/C compressor kits.
These are kits that do not include accessories, for kits that include accessories, check out our PLUS kits. You can also contact sales to add the needed accessories to your kit.
LS swapping your vehicle? We have the Boost Solution for you. Our very popular LS Transplant kit is designed to fit in a wide variety of vehicles, from your classic muscle car, to jeeps, drift cars and off road buggy’s. TorqStorm Superchargers are capable of gains above 150whp+ with supportive mods. This kit will include the Supercharger, Brackets, 8 rib belt drive, hardware, air filter, BOV and aluminum weld in bung, straight thermostat housing, drill and pin kit, and detailed color instructions. Everything to mount the supercharger to your engine. Available in Truck and LS1/F-body spacing and Corvette spacing. There are many options for fuel system, Supercharger intake plumbing, intercooling, charger air plumbing and tuning. We leave these variables up to the installation shop or the end user. You can finish the kit the way you want with the pieces you want. Buying low quality parts in a high priced kit – only to replace them with higher quality parts to finish the project – is now a thing of the past. Spend the money on the parts you really want and need. TorqStorm has a few optional pieces along with information to help you complete your kit. Please contact us for more info.
Not for use with a motor vehicle pollution control device or system.
Intercooling is suggested on all non-carbureted applications. A bung is included for water meth injection.
Blow-thru carburetor required
Shipping in the 48 Contiguous States (Alaska, Hawaii & international, please contact us for a shipping quote)
Average lead times are typically 4 weeks for standard finish. Up to an additional 2 weeks for black anodized kits.
Important! Be sure to add your phone number in the “notes section” on the PayPal check out page in case we have any questions pertaining to your order. Thank you.
This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles and Racing Use Only Vehicles.
The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles:
1965 and older U.S. manufactured California Certified vehicles
1967 and older U.S. manufactured Federally Certified vehicles
1967 and older Foreign manufactured vehicle
The following vehicles are considered Racing Use Only Vehicles:
Racing Use Only Vehicles are vehicles that are used exclusively for competition and that are not registered and that may never be used on the street
WARNING: It is against the law to install this part on an Emissions Controlled Vehicle
The following vehicles are considered Emissions Controlled Vehicles:
1966 and newer U.S. manufactured California Certified vehicles
1968 and newer U.S. manufactured Federally Certified vehicles
1968 and newer Foreign manufactured vehicle
*** If you cancel your order, the PayPal transaction fee will not be refunded to you. PayPal deducts this fee from us.
*** Be sure this kit fits your application! If you have any questions feel free to Contact us
