BTR LS Truck Stage 4 v2 Camshaft w/ DOD Conversion Kit For 5.3L LS Gen IV Engines  - 55+ HP Gain (VVT)

BTR-S4DOD5.3-VVT
This BTR camshaft and DOD Conversion kit includes everything needed to install including the world renown stage 3 v2 camshaft. Whether your project involves turbocharged, supercharged, or naturally aspirated setups, BTR offers numerous options, all supported by years of expertise, knowledge, and a dedication to power. We also offer a valley cover to get rid of the OEM cast valley cover with a shiny CNC billet valley cover see the product options to add the cover!

Note: For VVT equipped engines only. Not sure if your vehicle has VVT or not? it can be verified by your vin.

*This is for Gen IV 5.3L LS engines only will NOT work for any LT engines, Please verify your engine before purchase.

*Custom tuning is required after installation. We offer remote tuning options see here or we recommend going to a local dyno shop near you for custom tuning.
Pricing: $1,247.15

Customize Your Item

- Valve Spring Kit Options -
- Valley Cover Options -
Qty:
Free Basic Shipping

Description

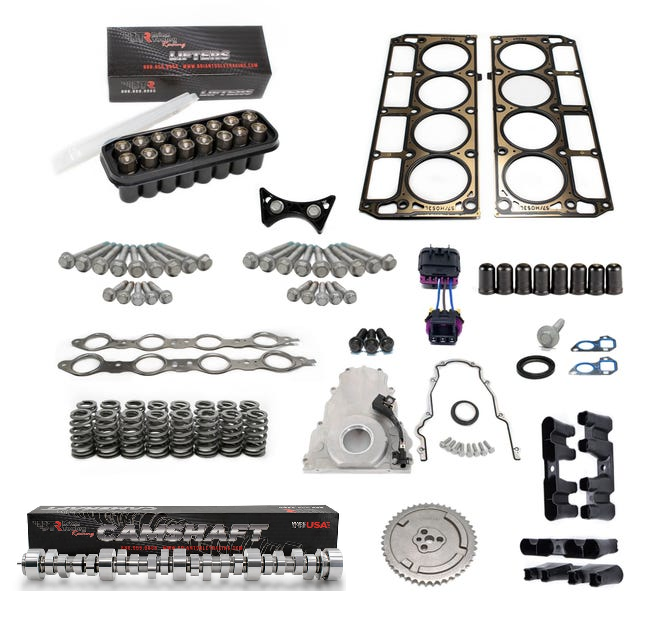

What is included with the this system?

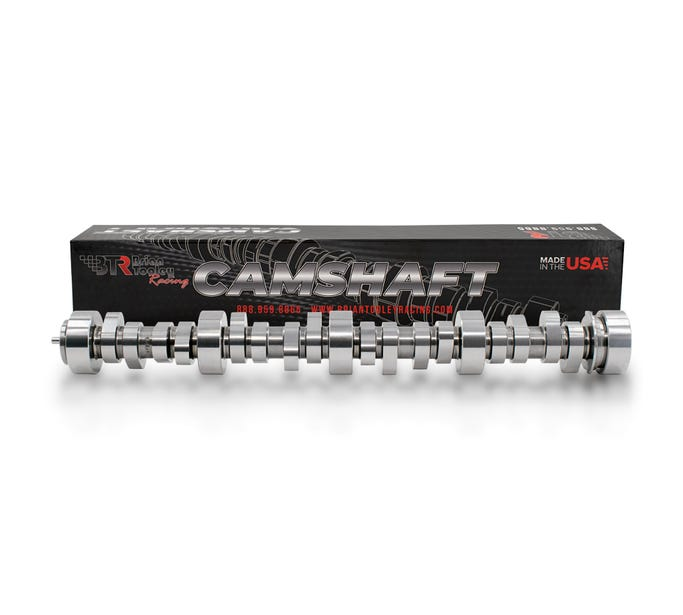

BTR Gen IV Stage 4 v2 Camshaft

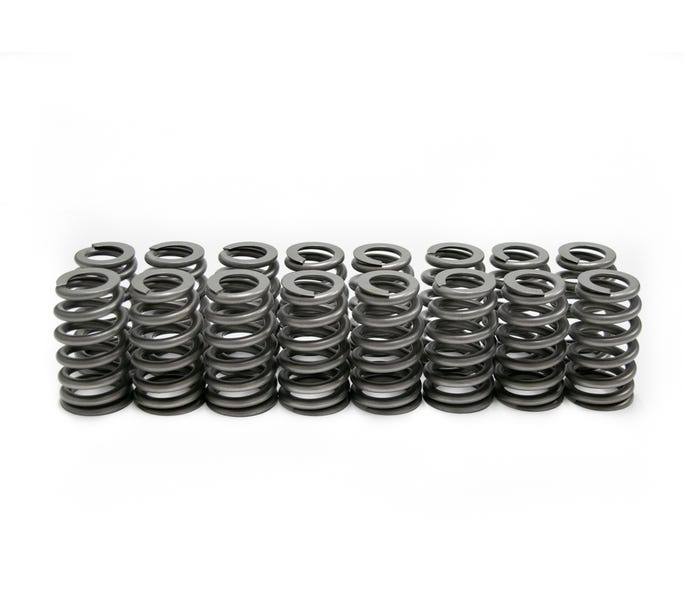

BTR .560" Lift Beehive Valve Springs Only - SP011-16 (Does NOT include Retainers, Locators, Shims or Locks) - Upgrades Available

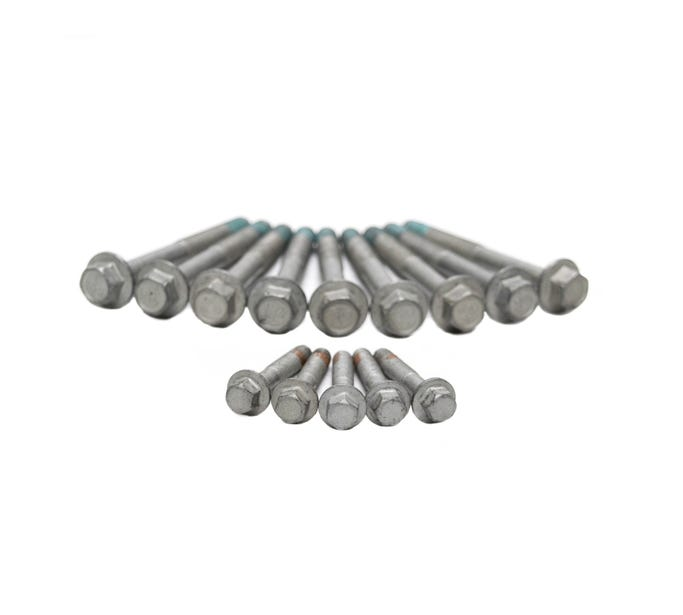

BTR Head Bolt Kit - BTR00568x2

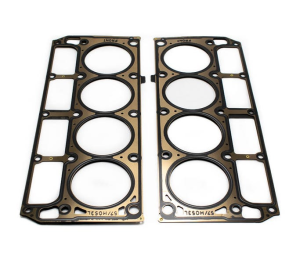

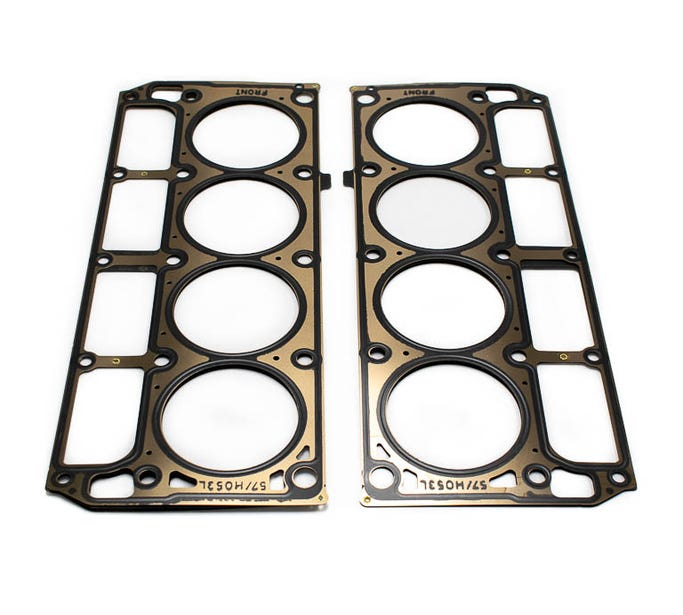

BTR 4.8L/5.3L Head Gaskets - Pair - BTR98544

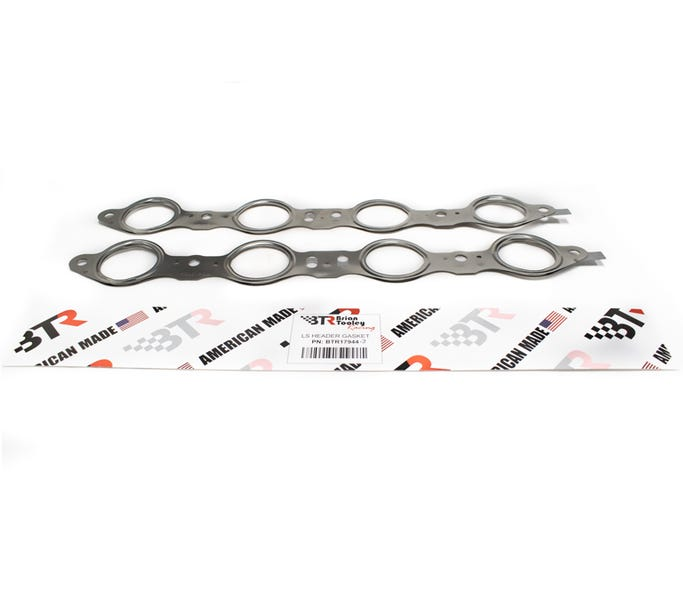

BTR LS Header Gaskets - Pair - BTR17944-2

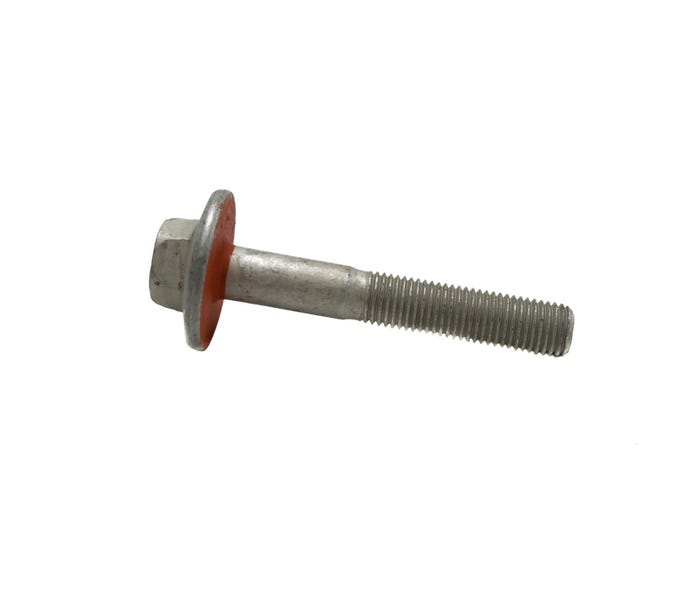

Chevrolet Performance Balancer Bolt - 12557840

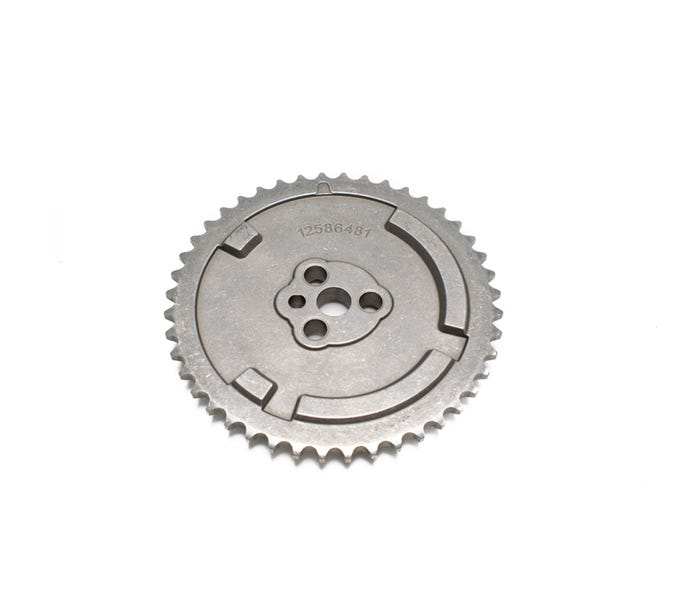

BTR Four Pole LS2/LS3 Cam Gear - BTR86481

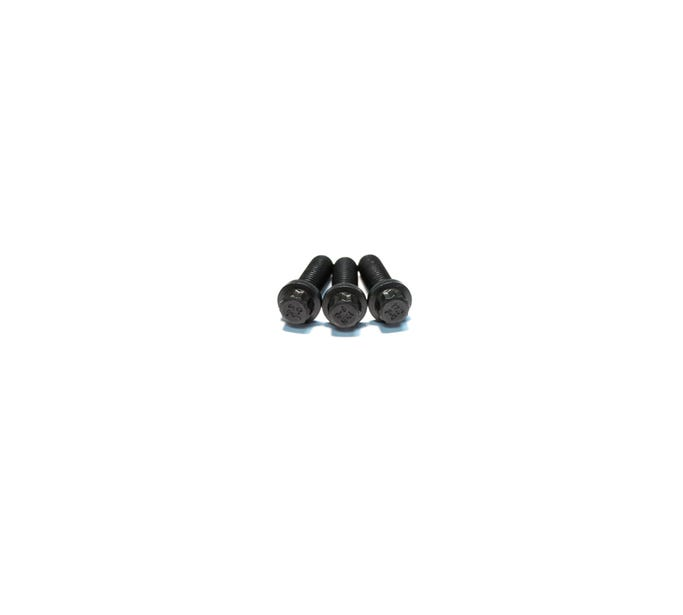

BTR LS Cam Bolts - set of 3 - BTR24835-3

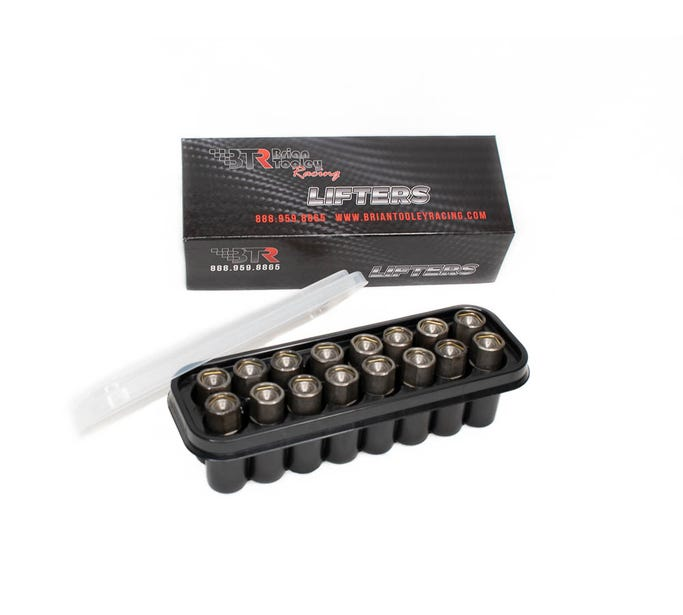

Delphi LS7 Hydraulic Roller Lifters - set of 16 - X12499225-16

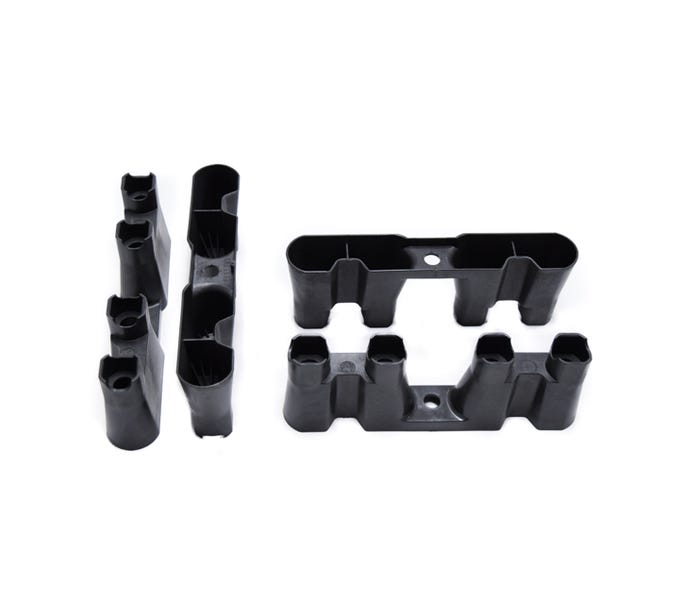

BTR Lifter Trays - set of 4 - BTR95365-4

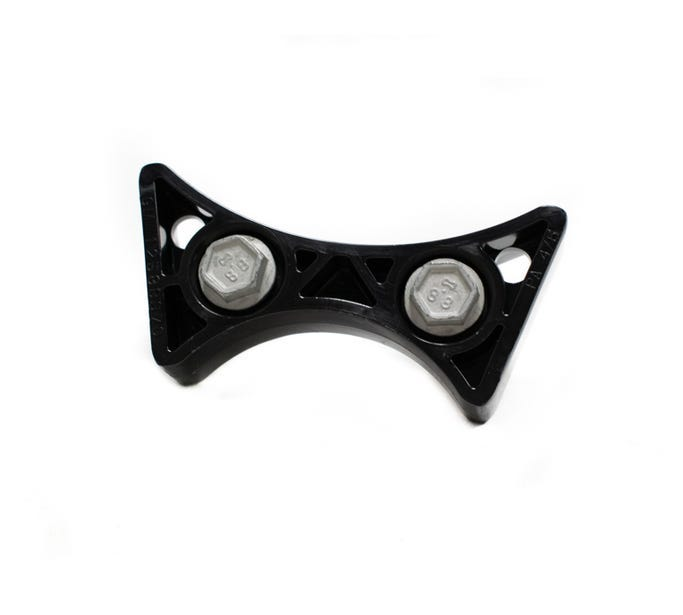

BTR LS Timing Chain Dampener - BTR88670

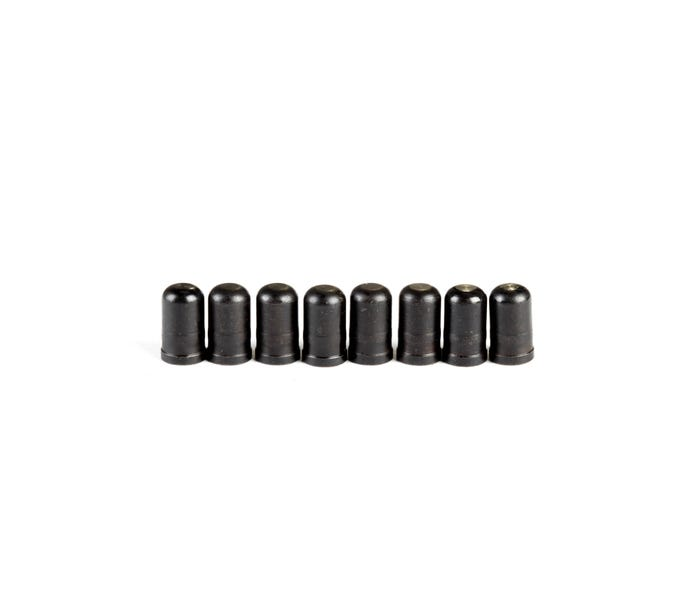

CBI Streetcars DOD Conversion Plug Kit - set of 8 - CBI/OBO
BTR LS Water Pump Gaskets - Pair BTR-30223-2

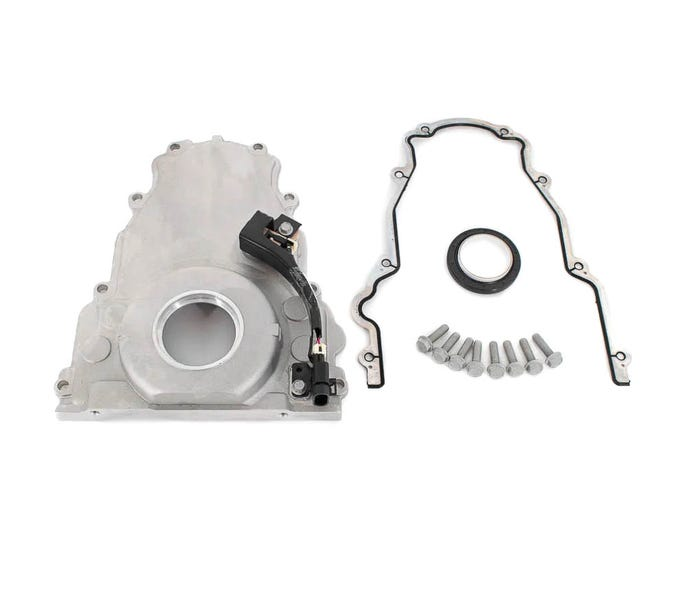

BTR LS3 Timing Cover w/ Gaskets, Bolts and Seal - BTR-33906

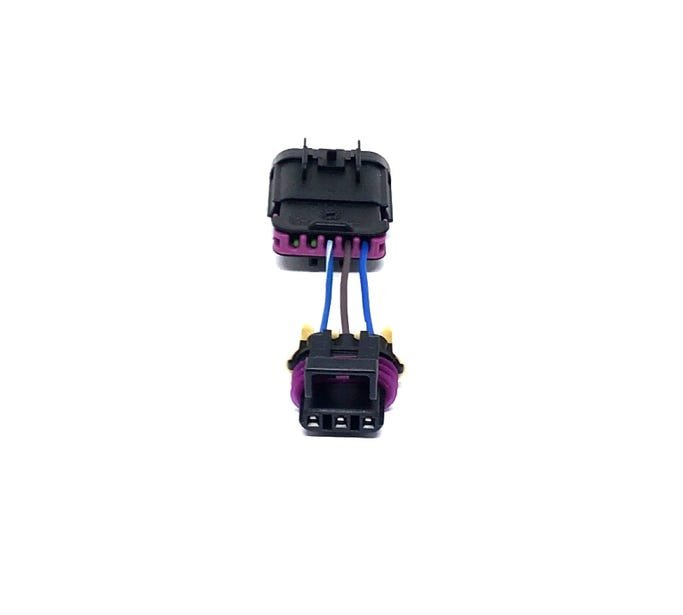

BP Automotive VVT TO NON-VVT Plug And Play Adapter - A80

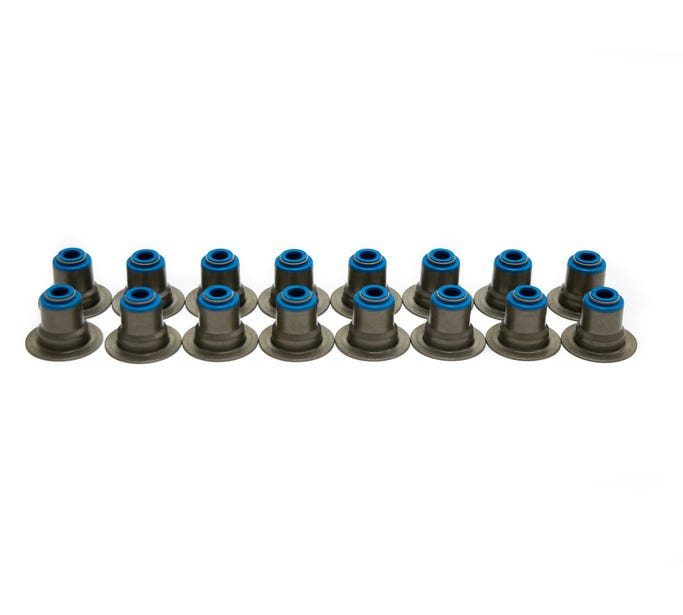

BTR LS Valve Seals - 01+ LS & LT HAT SEAL FOR SINGLE SPRING

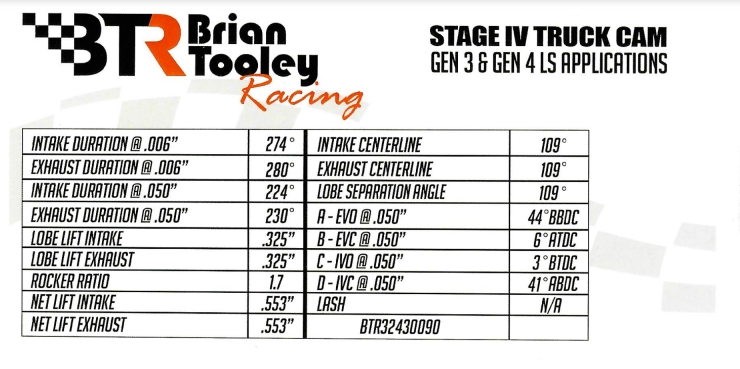

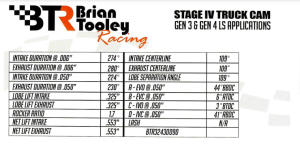

Camshaft Specs
Expected Crank HP and TQ Gains: 55+ HP Gain & 10+ LB/FT TQ
Cam Style: Hydraulic roller, OE roller
Camshaft Use: Street/Strip
Camshaft Duration: 224/230
Valve Lift with Factory Rocker Arm Ratio: 0.553 int./0.553 exh.
Lobe Separation (degrees): 109+0
Camshaft Gear Attachment: 3-bolt
Valve Springs Required: Included
Torque Converter Information: Aftermarket converter required (2800-3200 stall recommended)
Quantity: Sold individually.

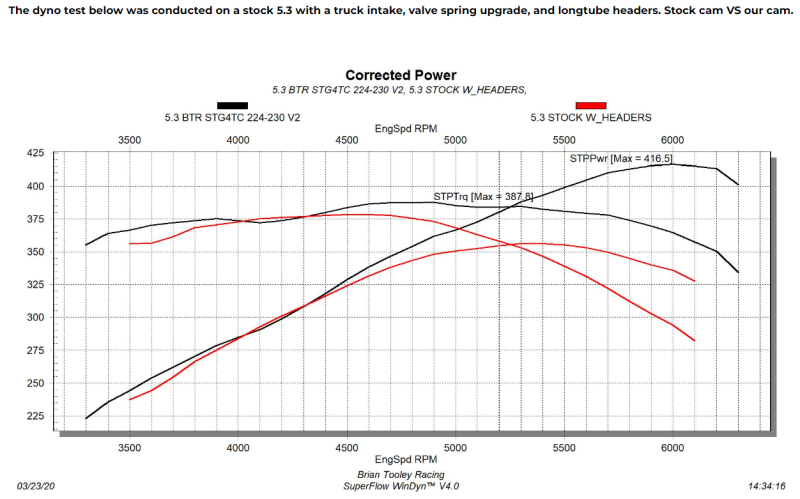

**Dyno test was done on a Superflow WinDyn Engine Dyno.
