Fore Innovations 2005-2010 Jeep Cherokee WK1 SRT-8 L3 Triple Pump Fuel System - 1800+rwhp Capable (Regulator BEFORE rails)

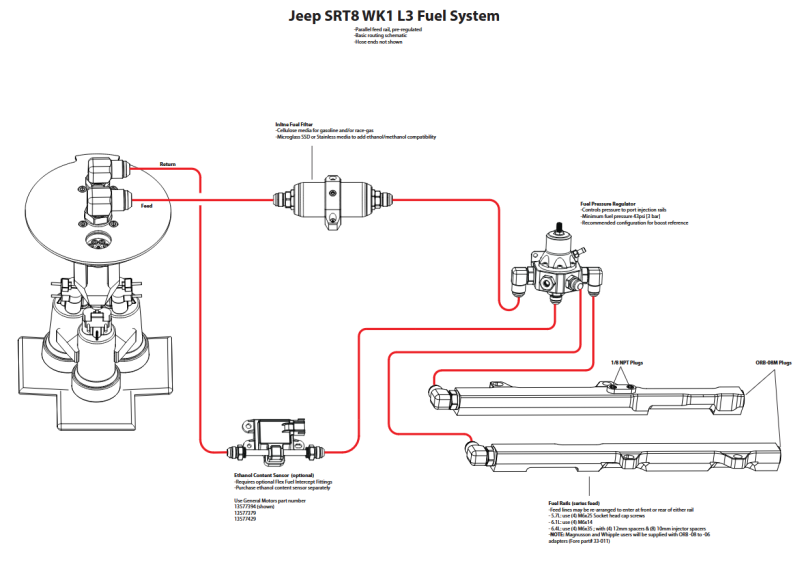

This is a stand alone fuel system. Professional installation and a custom tune is required. Qualified installers and tuners must be able to interface to the OE harness and FPDM (if required), understand proper component placement, hose routing, and deliver the vehicle with factory-like pump prime/on/off logic with no error codes. Fore Innovations will supply basic system schematics and detailed component level instructions, and can provide troubleshooting of the performance and function of our system and components.

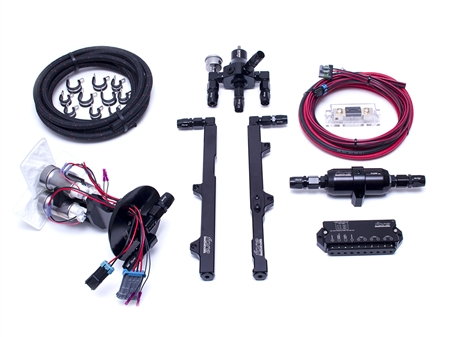

What's included in the base system?
Cherokee SRT8 WK1 Fuel Pump Module (triple pump)
F4i Fuel Pressure Regulator
88mm Inline Fuel Filter
Billet Hemi Fuel Rails
All fittings, hose, hardware required for typical fuel line plumbing

-30 feet of fuel line and 10 matching hose ends (your choice
-Qty 7, billet low profile 90 degree o-ring fittings
-Qty 3, straight AN to ORB fittings
-Qty 1, -8 ORB plug
-Qty 10, hose straps and mounting screw
-Qty 2, 1/8 NPT plugs

*Does NOT include fuel pumps they can all be added using the product options.

Fitment:
2005-2010 Jeep Cherokee WK1 SRT-8

Fuel Type:
Gasoline / race gas: choose if you are will only be running typical pump gas or race gasoline, such as MS109, C16, Q16, etc.

Ethanol blends, gasoline, race gas: choose if you will be running a combination of gasoline, race gas, E85, E98, E85R, C85, etc.

*This system is not compatible with ethanol blends over 15%

Important Note:
This fuel system produces significantly more heat and flow capacity than the factory setup. The high-output pumps generate additional heat, and the composite fuel tank acts as an insulator, retaining that heat. Furthermore, the design of the factory tank limits fuel pickup capacity. To prevent heat-related damage and maintain consistent fuel delivery, drivers must keep the tank fuller than normal at all times.
