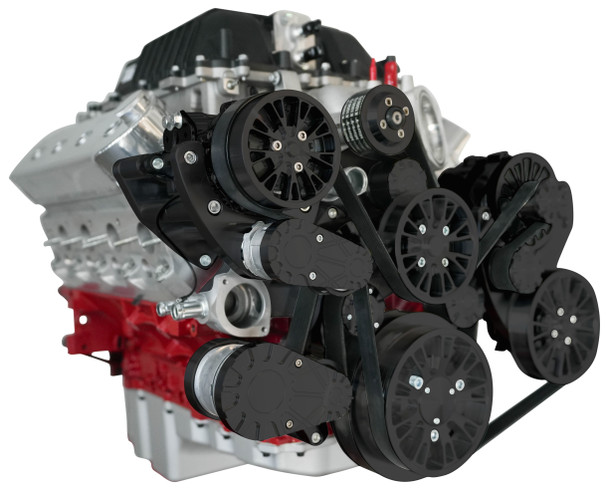

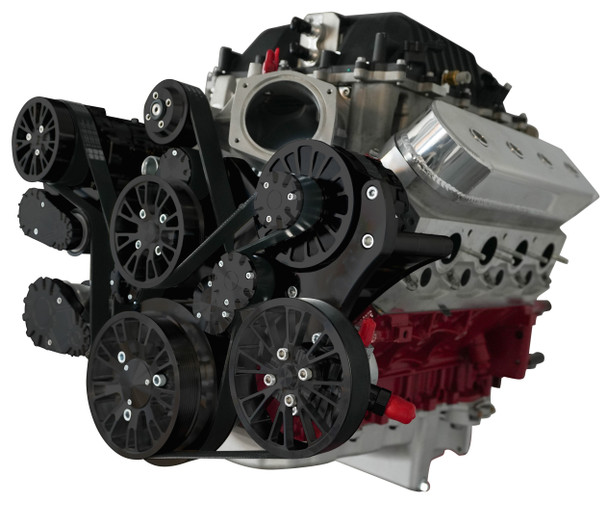

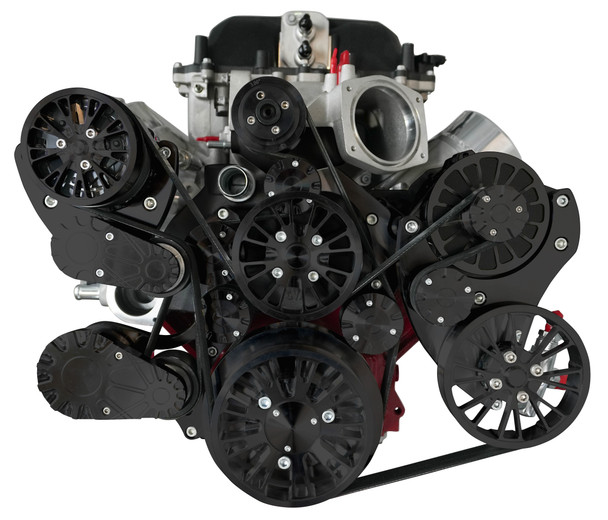

CVF Reaper 10 Rib Black Serpentine Drive System For LS Engines Using OE 1.9L Eaton Supercharger - Alternator, AC & PS (LSA Beltline)
$3,680.00$3,480.00
Need help matching a part number? Call 877-514-9494.
Billet aluminum 10-Rib Dedicated Supercharger Drive & 8 Rib Accessory Drive set up. The Reaper raises the bar for the serpentine market and there is truly nothing like it. It features an innovative bracket design, stainless steel hardware, and billet aluminum spacers. Proudly CNC machined in the USA, the Reaper ensures top-notch performance and eye-catching style, all supported by a lifetime warranty.

This system includes all the brackets and accessories if you're not running AC or Power Steering see the product options to remove those items.

Note: This kit will fit Chevy LSA Engines. Does not include LSA supercharger.

See the blue product options button to configure your system!

California Residents: Prop 65 Warning

WARNING: Cancer and Reproductive Harm

Description

Kit Includes:
High Flow Aluminum LS1 Water Pump
GM Type II Power Steering Pump (can be removed in the product options)
140 Amp, 1-Wire CS130 Alternator; upgradable to 300 amps
Sanden Style Peanut Compressor with 8 Rib Clutch (can be removed in the product options)
AC Compressor Fitting (can be removed in the product options)
Remote Mount Reservoir with Mounting Bracket (can be removed in the product options)
Gates Premium 10 & 8 Rib Belts
Water Pump Pulley
Crank Pulley
Alternator Pulley
Power Steering Pulley (can be removed in the product options)
Spring Loaded Belt Tensioner with patent pending adjustable bracket
Billet Aluminum Brackets
Black Anodized Hub Adapter for attaching crank pulley to SFI or ATI balancers.
Billet Compressor Clutch Cover (can be removed in the product options)
Billet alternator fan
Stainless Steel Mounting Hardware
Billet Spacers (Anodized Clear)

Fits LS Based Engines With Factory Supercharger, Designed For The Following Applications:
2009 - 2015 Cadillac CTS-V
2012 - 2015 Camaro ZL1
LSA Crate Engines or other LS based Engine equipped with factory supercharger.

Applications Notes:
Power Steering Lines from pump to reservoir not included
Compatible with Hydro-boost

Fitment

Details

  • B-LSA-RP
  • B-LSA-RP
  • CVF Racing
  • New

Shipping Information

  • Item Requires Shipping
  • 30.0 lbs.
  • W20.0000” x H20.0000” x L10.0000”
  • Free Basic Shipping
