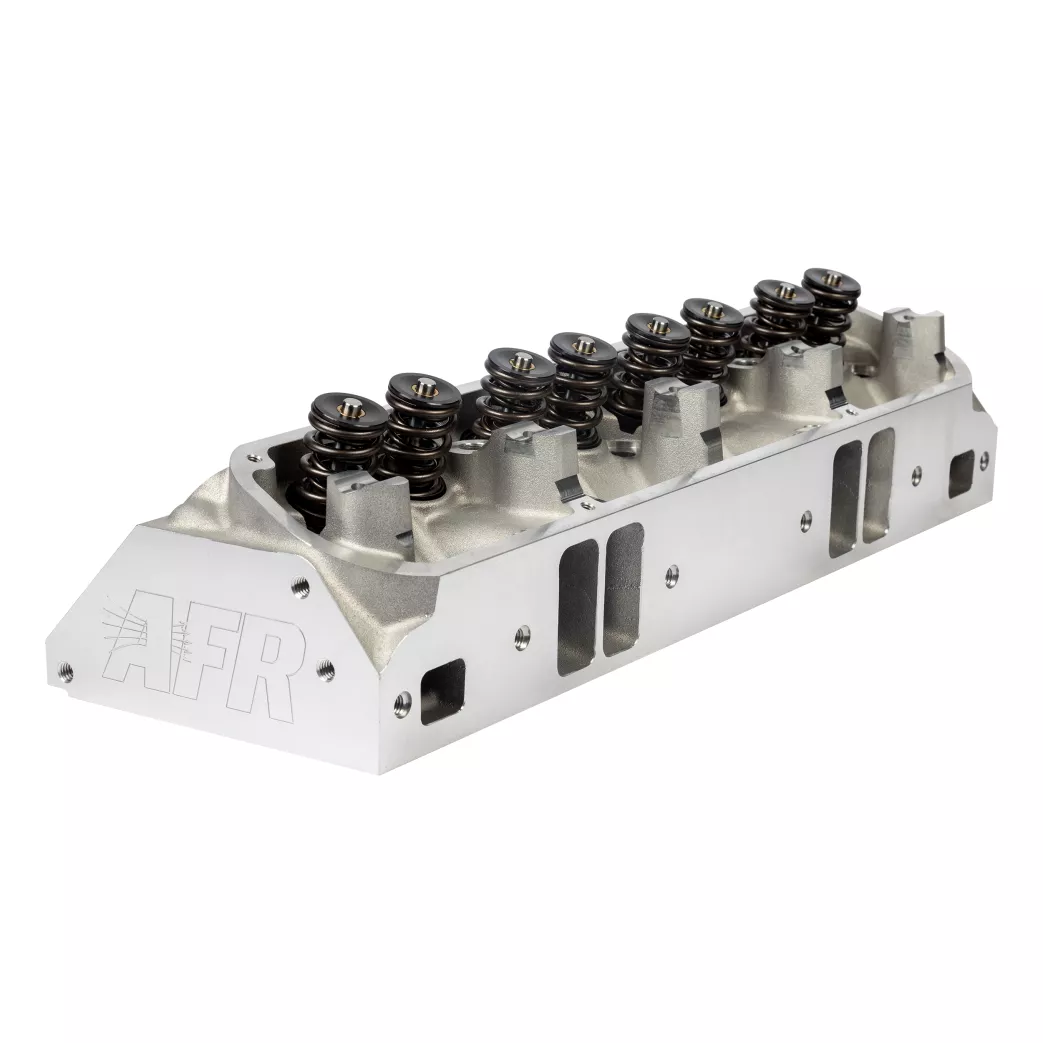

AFR Small Block Mopar 175cc As-Cast SBM Bare Cylinder Head, 62cc Chambers, For LA Block
AFR 2402
FR's cutting edge 175cc Small Block Mopar cylinder heads are a remarkable addition to our performance line-up. Designed for 1964-1992 318-340-360 LA engines, this innovative cylinder head features an As Cast surface on the intake and exhaust runners and combustion chamber for optimal performance. Enhanced water jacket design ensures superior cooling in crucial areas.

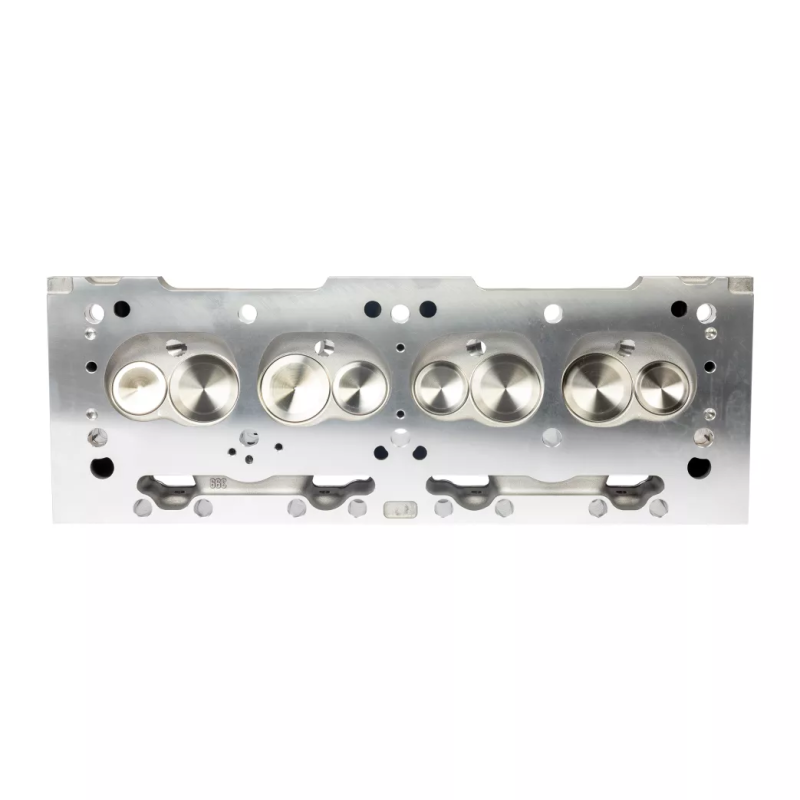

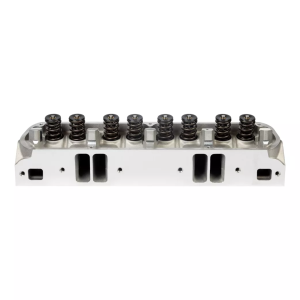

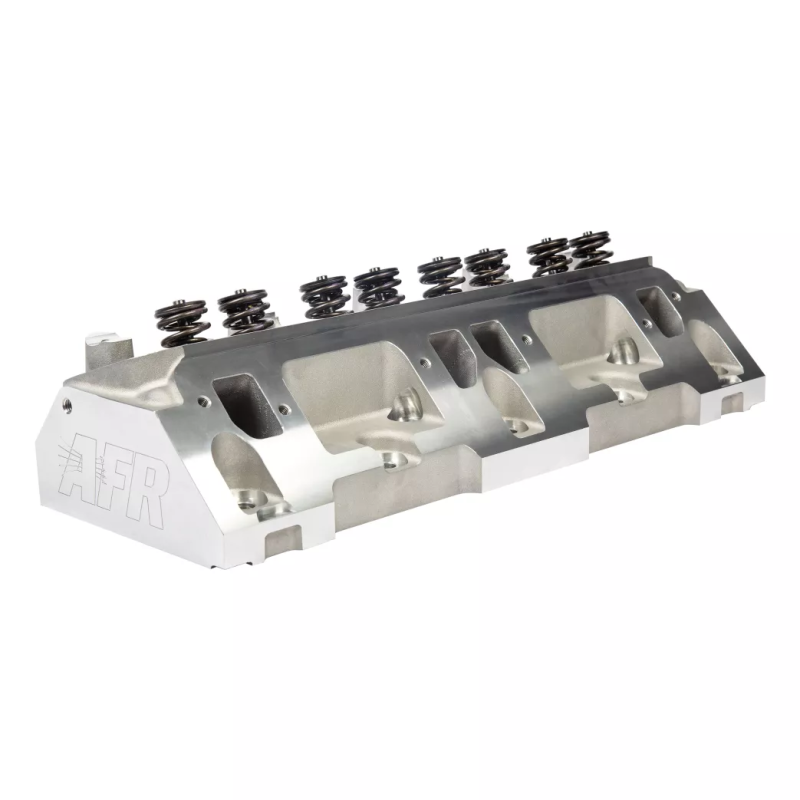

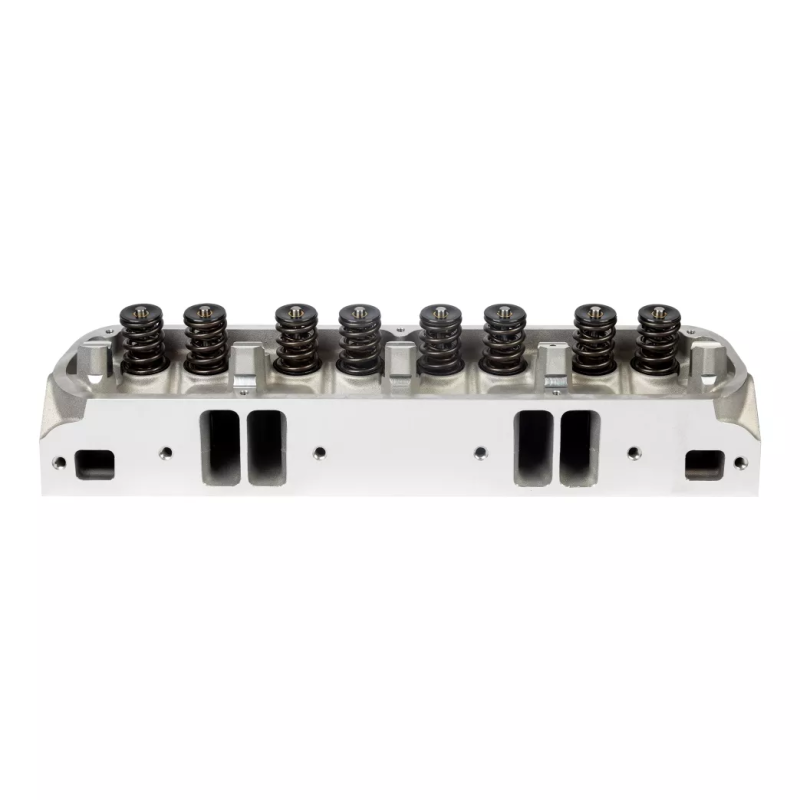

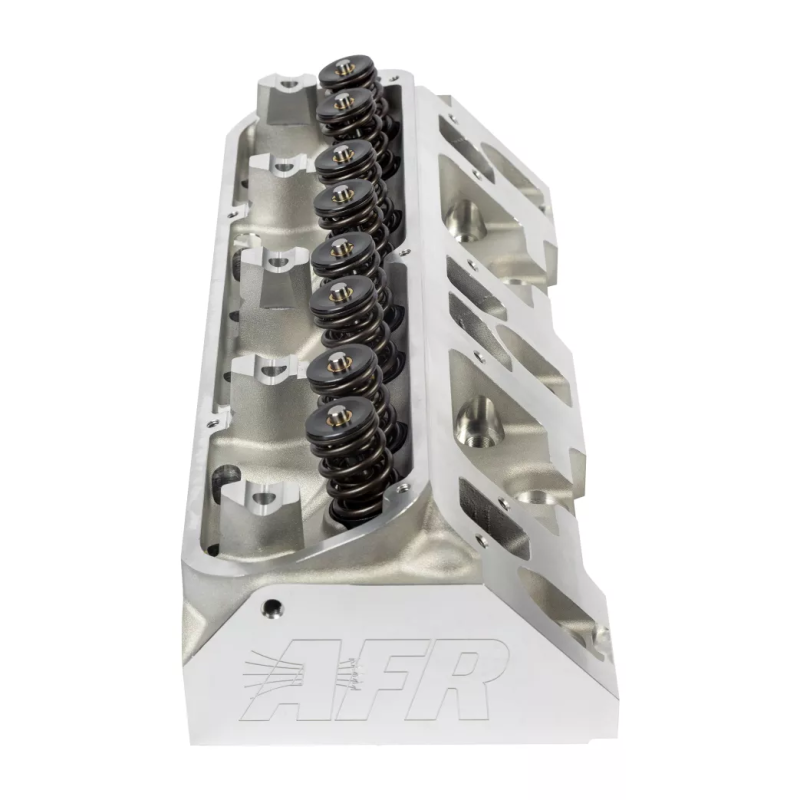

Head is completely bare no valvetrain parts pictures are for reference. Sold as a single piece, 2 pieces required per engine.
Head is completely bare no valvetrain parts pictures are for reference. Sold as a single piece, 2 pieces required per engine.
Shipping: FREE continental USA ground shipping on ALL AFR Cylinder Heads
Was:
$628.00
Sale:
$565.20
Save:
10%
Save:
$62.80
Description

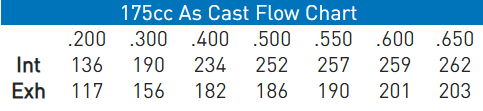

| 175cc As-Cast Head Flow Chart | |||||||
| .200 | .300 | .400 | .500 | .550 | .600 | .650 | |
| Int | 136 | 190 | 234 | 252 | 257 | 259 | 262 |
| Exh | 117 | 156 | 182 | 186 | 190 | 201 | 203 |
Test conducted at 28" of water (pressure) on Superflow 600
Bore Size: 4.060", 3/4" radius plate exhaust, 1 3/4" curved pipe
| Basic Package Components | Part # |
| As Cast Combustion Chambers As Cast Exhaust Ports As Cast Intake Ports 3-angle Valve Job |
| Specifications, Features, and Optional Supporting Components |
| Head Material |
Aluminum |
| Intake Port Volume | 175cc |
| Intake Port Dimension | 2.250" x 1.150" |
|
Intake Port Location
|
Stock |
| Exhaust Port Volume | 80cc |
| Exhaust Port Dimension | 1.750" H x 1.250" W |
| Exhaust Port Location |
Stock |
| Combustion Chamber Size | 62cc |
| Valve Angle | 18° |
| Important: Do not port match your intake manifold to Fel-Pro gasket as it does not precisely fit the AFR head. | |
| Exhaust Port Gasket |
Felpro #1213 |
| Head Gasket, 302/351W, Fel-Pro #1011-1 |
AFR #6808 |
| Head Bolt |
ARP #144-3601 |
| Flat Mill |
.006" per cc 54cc Max (from 64cc) |
| Suggested Manifold | Edelbrock 2176 |
| Spark Plug Starting Range | Autolite 3924 |
Important: Do not port match you intake manifold to any Fel-Pro gasket as it does not precisely match AFR heads.
Note: Milling head deck will affect flow numbers.
