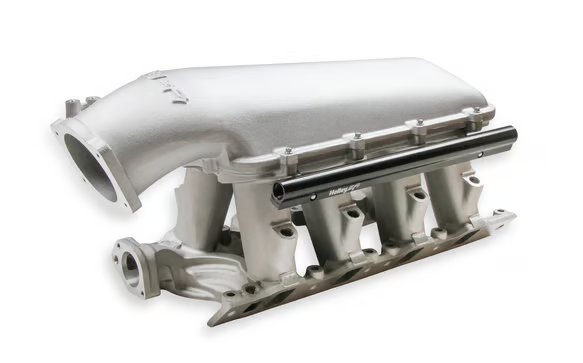

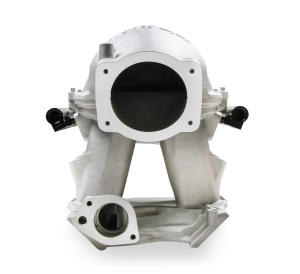

Holley Hi-Ram SBF 95MM Intake Manifold w/ High Flow Fuel Rails - Satin (8.2 Deck)

Additional Images

Starting at $71/mo or 0% APR with Affirm

Your Selected Product

Was: $1249.95

Sale: $1123.95

Save: 10%

Save: $126.00

SKU: 300-272

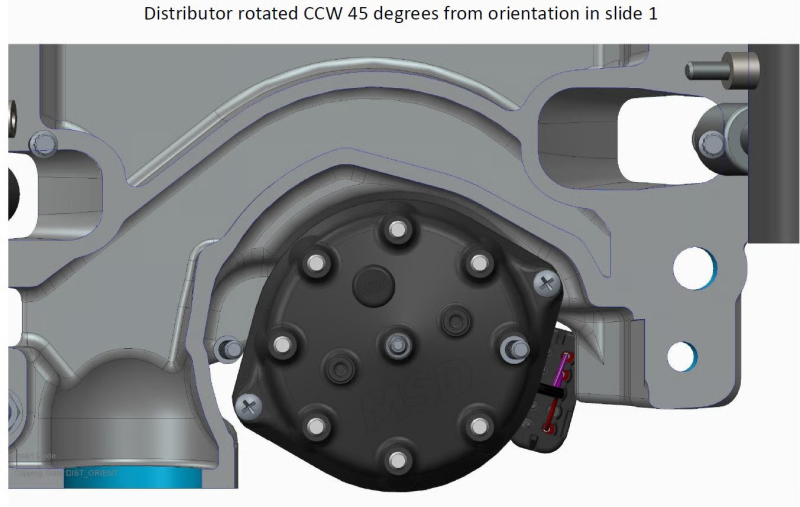

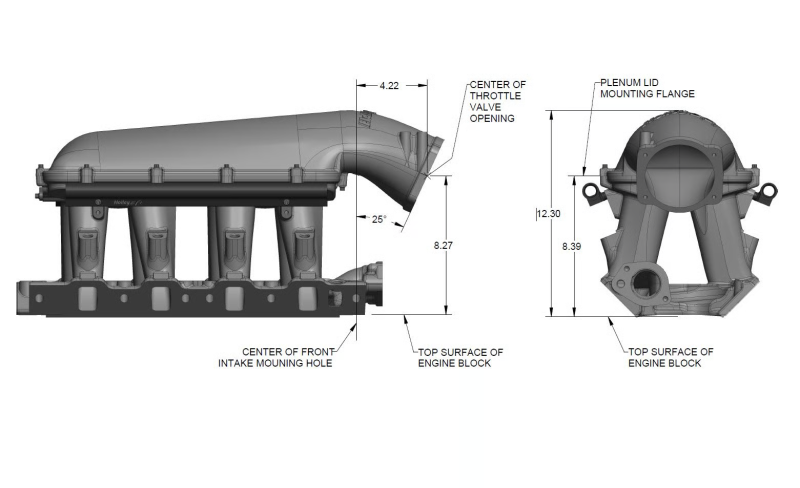

The EFI Hi-Ram manifold line has a new addition for the 8.2" SBF Ford application. This manifold comes with a 95MM LS throttle body flange top. The runner length and tapered cross section design will perform well for a wide range of engine combinations. The engineering team also redesigned the water crossover passage to allow room for distributor phasing. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more! Manifold is designed for a 8.2" deck height. Manifold width is 11.32". EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.

Shipping: FREE shipping to the USA and it's territories on ALL Holley products

Description
Details
Shipping
Documents
Reviews

Description

Specifications:
Construction: Cast
EGR Port: No
Engine: Ford SBF 289/302+
Finish: Satin
Flange Style: EFI
Fuel Injectors Included: No
Fuel Rail(s) Included: Yes
Fuel System Type: EFI
Gasket Or Seal Included: Yes
Injector Quantity: 8 injectors
Intake Port Gasket(s) Included: No
Material: Aluminum
Nitrous Bung(s) Included: No
Recommended Use: Supercharger or Turbo
Removable Runners: No
Plane Type: Single Plane

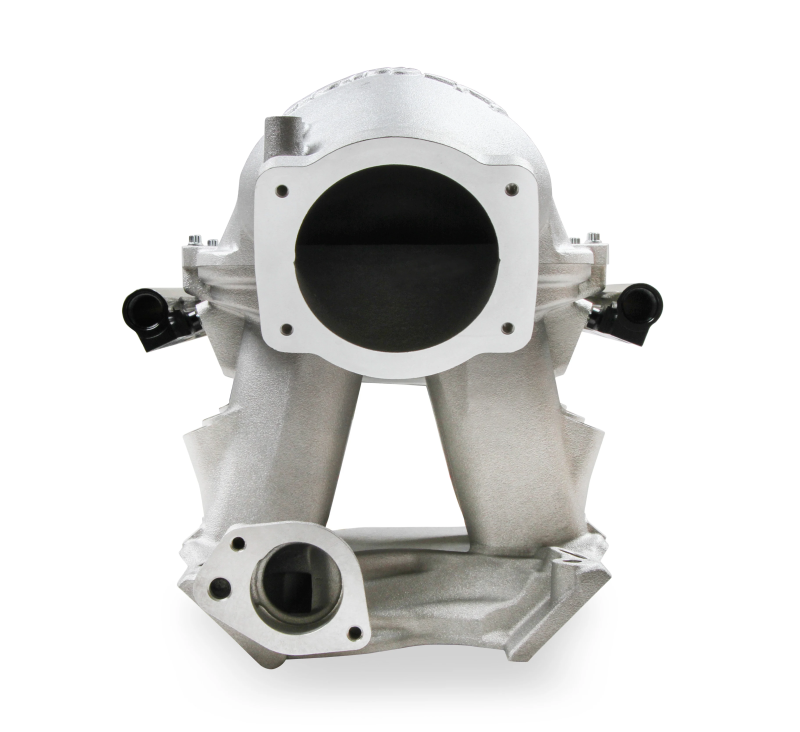

Throttle Body Bore Diameter: 95MM
Throttle Body Included: No
Warranty Manufacturer's: Limited 90 Day Warranty
Part Number: 300-272

Features:

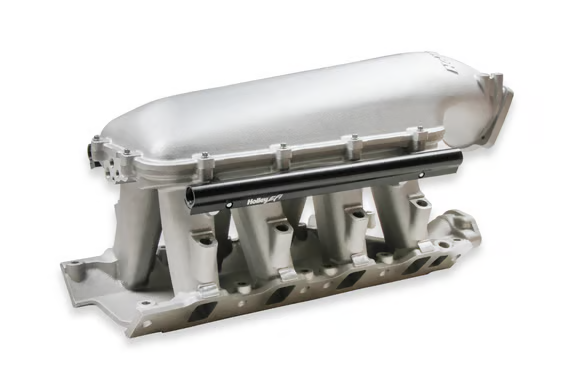

EFI fuel rails are machined for -8AN o-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.
Plenum Top Gasket Type – 3/32” Round O-ring Cord
Manifold is designed for a 8.2" SBF deck height.
The 8.2 SBF manifold is available to work with 95MM throttle bodies
