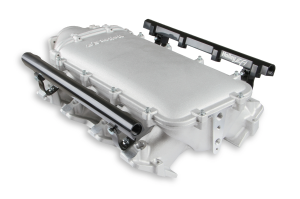

Holley Ultra Lo-Ram LS1/LS2/LS6 Intake Manifold w/ High Flow Fuel Rails - Natural

300-621
The Holley LS1/2/6 Ultra Lo-Ram intake manifold kits are designed for GM LS Gen III and IV engines equipped with GM LS1/2/6 (cathedral port) cylinder heads. These intake manifolds will work with OE or aftermarket cylinder heads. The Ultra Lo-Ram intake manifolds are designed for forced induction (supercharged or turbocharged) engine applications and the 105 mm throttle body part number 112-581 or similar models. The base intake manifold is designed with a lower overall height to fit under a stock or mildly modified hood.

The 300-621 Lo-Ram plenum entry was configured to provide a very low profile modular intake manifold suitable for turbocharged or centrifugally supercharged engines.

Note: The fuel rail kits come with two sets of brackets. A set for long (usually standard length) fuel injectors and a set for short (such as Pico, or LS7) fuel injectors.
Shipping: FREE shipping to the USA and it's territories on ALL Holley products
Was: $934.95
Sale: $914.95
Save: 2%
Save: $20.00

Qty:
Free Basic Shipping

Description

Specifications:
Construction: Cast
EGR Port: No
Engine: GM LS1/LS2/LS6
Finish: Natural
Flange Style: EFI
Fuel Injectors Included: No
Fuel Rail(s) Included: Yes
Fuel System Type: EFI
Gasket Or Seal Included: Yes
Injector Quantity: 8 Injectors
Intake Port Gasket(s) Included: No
Material: Aluminum
Nitrous Bung(s) Included: No
Recommended Use: Supercharger or Turbo
Removable Runners: No
RPM Power Band: 3500-8000 RPM
Plane Type: Single Plane
Throttle Body Bore Diameter: 105 MM
Throttle Body Included: No
Warranty Manufacturer's: Limited 90 Day Warranty
Part Number: 300-621

Features:
Designed for GM LS Gen III and IV engines equipped with GM LS1/2/6 (cathedral port) cylinder heads
Designed for forced induction (supercharged or turbocharged) engine applications with peak power at 7000-8000 rpm depending on the application.
With forced-induction and the short runner length the engine rpm at which peak power occurs is more likely to be coupled to the supercharger or turbocharger being used

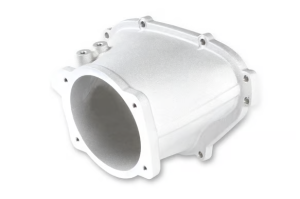

Modular design allowing the use of front-feed plenum entry
Intake design facilitates custom inlet duct and throttle body placement
Low height to fit under a stock or mildly modified hood in the front configuration
Front entry plenum flange allows design & fabrication of special throttle body adapters or inlet ducts for custom installations
Clears 4th Gen Camaro and C5 Corvette cowls and hoods without modification
High volume fuel rails and mounting hardware included with ¾”-16 o-ring ports (8 AN)
No burst panel, solid cast

Details

  • 300-621
  • 300-621
  • Holley
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 25.0 lbs.
  • W12.0000” x H12.0000” x L8.0000”
  • Free Basic Shipping
  • FREE shipping to the USA and it's territories on ALL Holley products

  • Have a question? Ask the Pros
  • 877-514-9494Mon - Fri 8:00 AM - 4:00 PM PST
