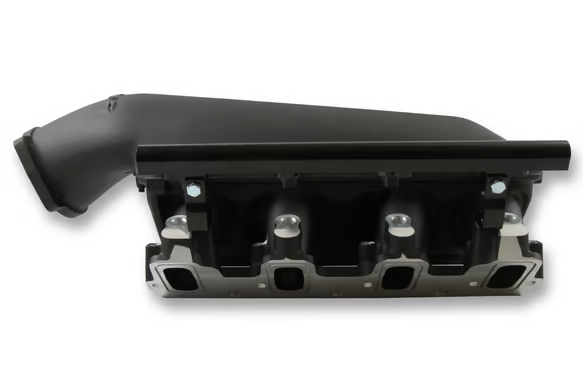

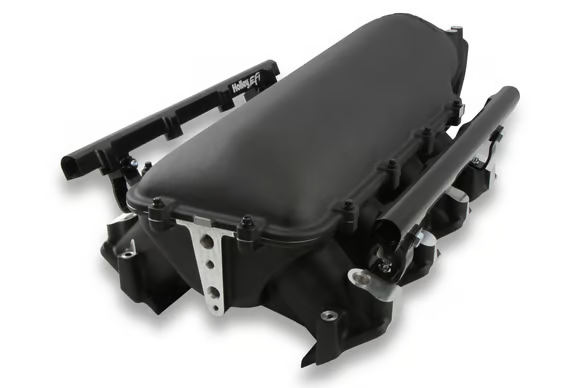

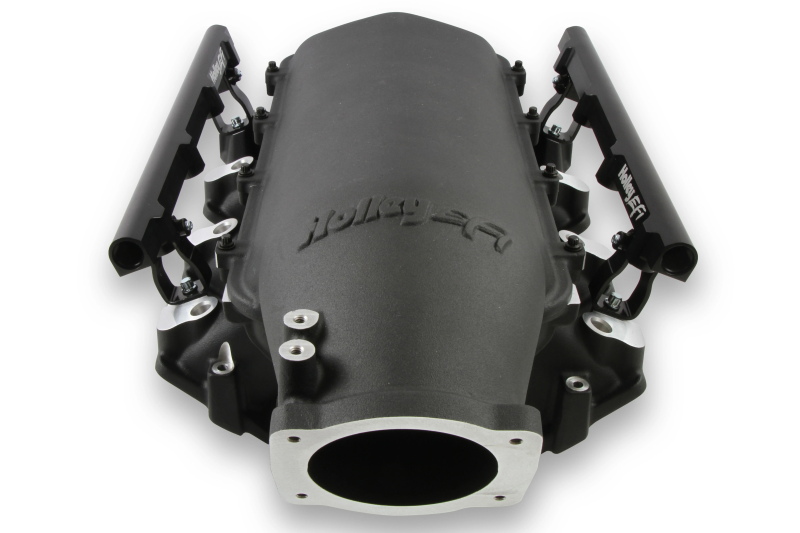

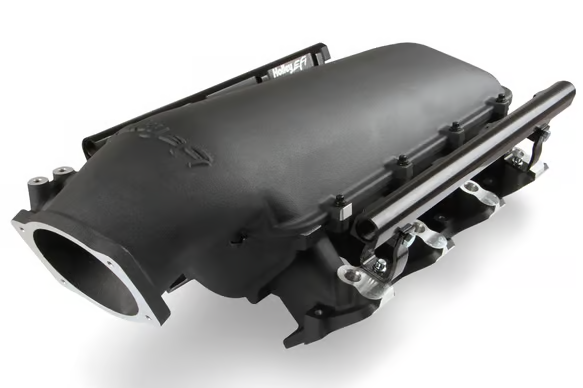

Holley Lo-Ram LS3 Intake Manifold w/ High Flow Fuel Rails - Black

Additional Images

Your Selected Product

Was: $975.95
Sale: $875.95
Save: 10%
Save: $100.00

Starting at $55/mo or 0% APR with

Qty:
Free Basic Shipping
300-679BK
The Holley LS3 Lo-Ram intake manifold kits are designed for GM LS Gen III and IV engines equipped with GM LS3/L92 cylinder heads. These intake manifolds will work with OE or aftermarket cylinder heads. The Lo-Ram intake manifolds are designed for forced induction (supercharged or turbocharged) engine applications and the 105mm throttle body part number 112-581 or similar models. The base intake manifold is designed with a low height to aid the packaging of a plenum mounted air-to-water intercooler in a top-feed configuration. Additional manifold designs include both single and dual injector options. Available with both as-cast satin and black power-coat finishes. High volume fuel rails for eight and sixteen injector configurations. Mounting hardware included with 3/4-16 O-ring ports (8 AN).
Shipping: FREE shipping to the USA and it's territories on ALL Holley products

Description

Specifications:
Construction: Cast
EGR Port: No
Engine: GM LS3/L92
Finish: Black
Flange Style: EFI

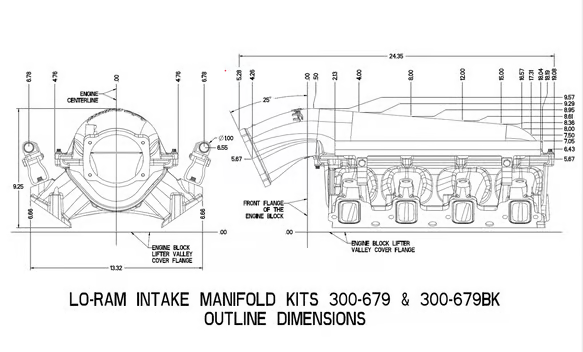

Front Height: 9.25" without Intercooler
Front Maximum Height: 9.25 IN
Fuel Injectors Included: No
Fuel Rail(s) Included: Yes
Fuel System Type: EFI
Gasket Or Seal Included: Yes
Injector Quantity: 8 Injectors
Intake Port Gasket(s) Included: No
Material: Aluminum
Nitrous Bung(s) Included: No
Recommended Use: Supercharger or Turbo
Removable Runners: No
RPM Power Band: 3500-8000 RPM
Plane Type: Single Plane
Throttle Body Bore Diameter: 105 MM
Throttle Body Included: No
Warranty Manufacturer's: Limited 90 Day Warranty
Part Number: 300-679BK

Features:
Designed for GM LS Gen III and IV engines equipped with GM LS3/L92 cylinder heads
Designed for forced induction (supercharged or turbocharged) engine applications with peak power at 7000-8000 rpm depending on the application.
Modular design allowing the use of the included plenum entry
Low height to aid the packaging of a plenum mounted air-to-water intercooler in a top-feed configuration or to fit under a stock or mildly modified hood in the front-feed configuration

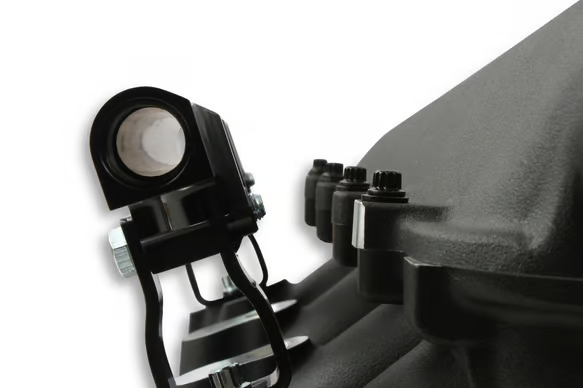

High volume fuel rails for eight and sixteen injector configurations.

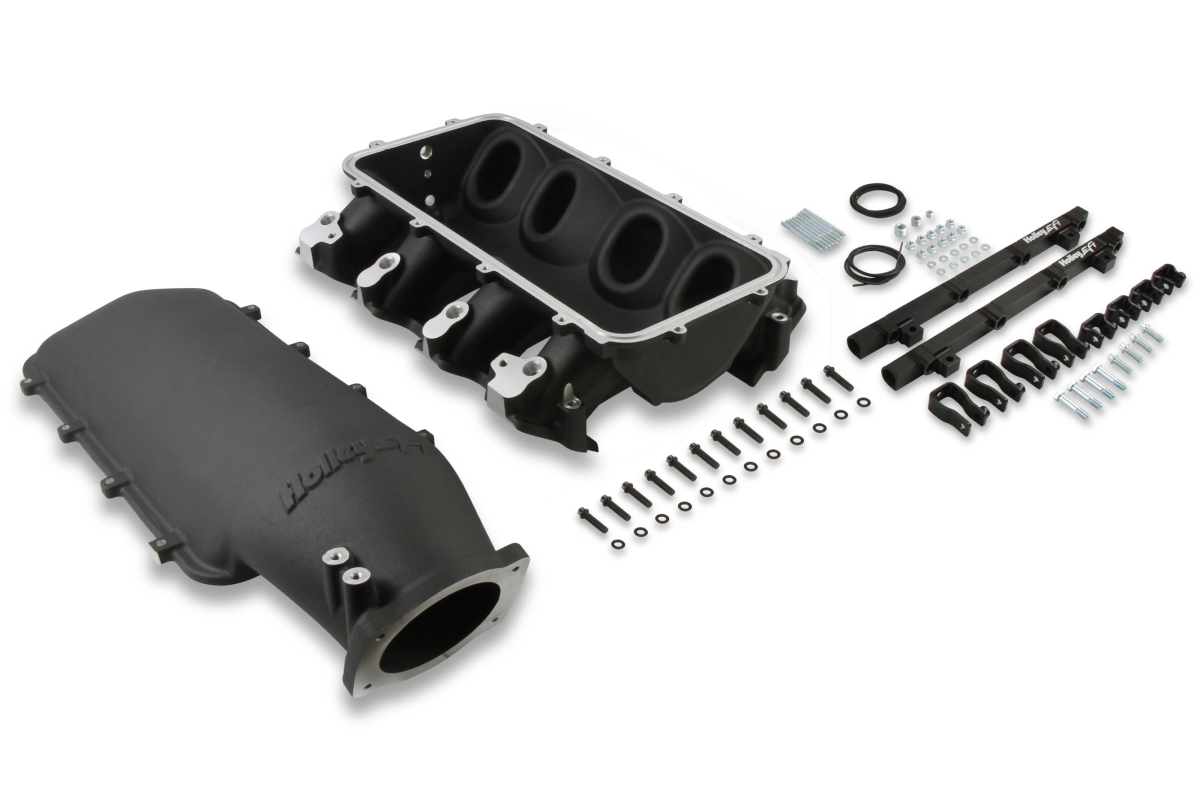

Mounting hardware included with 3/4-16 O-ring ports (8 AN)and mounting hardware included with 3/4-16 O-ring ports (8 AN)
