BTR Gen V LT2 225 Camshaft w/ DOD Conversion Kit for Corvette C8 - 78 HP Gain

BTR-DODLT2-225
This BTR camshaft and DOD Conversion kit includes everything needed to install including the world renown Gen V 225 camshaft. Whether your project involves turbocharged, supercharged, or naturally aspirated setups, BTR offers numerous options, all supported by years of expertise, knowledge, and a dedication to power.

Note: This kit has many product options please make sure you see the blue "choose product options" button to configure your system and avoid any delays.

*Notice, You also need to replace the OE balancer bolt (11548720)

*Custom tuning is required after installation. We offer remote tuning options see here or we recommend going to a local dyno shop near you for custom tuning.

Important Information: Please select your options using the blue button. To install these parts a new crankshaft bolt is required. The cam install kit is highly recommended as the camshaft bolt can only be reused a few times and many techs like to always install new ones. Arp bolts/studs are reusable. Short travel lifters allow higher rpm capability and also require .050 shorter pushrods (so if everything is factory untouched 7.800").
Pricing: $1,464.92

Customize Your Item

- Head Bolt/Stud Options -
- Lifter Options -
- Pushrod Options -
- Valve Spring Kit Options -
- Cam Install Kit -
Qty:
Free Basic Shipping

Description

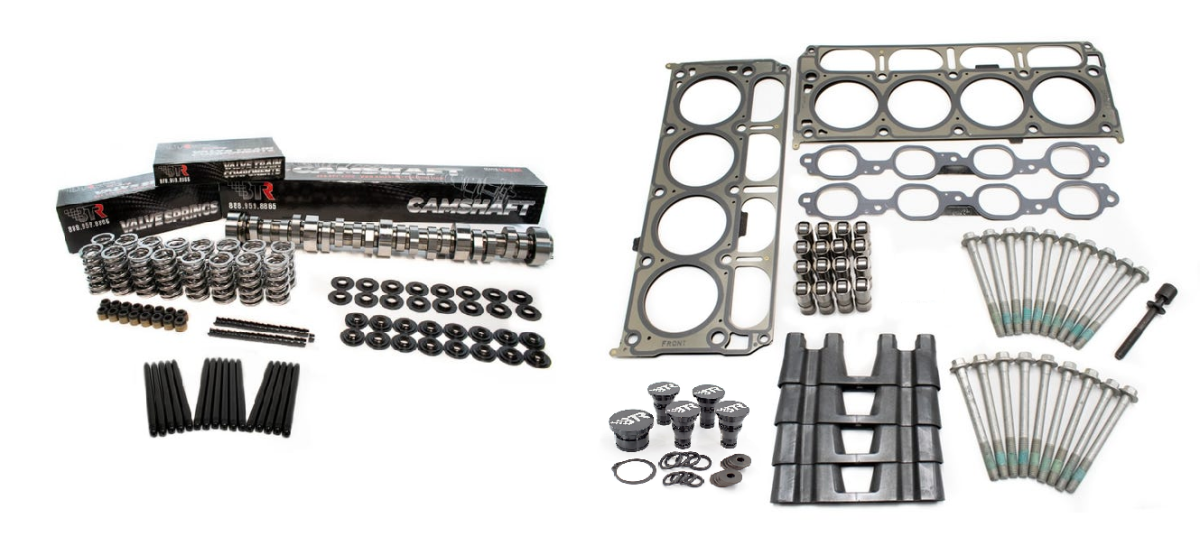

What is included with the this system?
BTR Gen V 225 Camshaft
BTR .650 Lift Conical Valve Spring Kit (Upgrades available in the product options)
BTR 7.850 3/8" Hardened Pushrods (11/32" and different size pushrods available in the product options)
BTR 4 Degree VVT Limiter and Cam Motion Phaser Tool
BTR LT2 DOD Plug Kit
BTR Delphi LT Lifters
BTR Lifter Trays - set of 4
BTR LT1 Head Gaskets
BTR Gen V Head Bolt Kit (Head studs available in the product options)
BTR Gen V Header Gaskets - Pair

*This item has many different options and upgrades available, see the product options button to configure your system!

Camshaft Specs
Expected HP and TQ Gains (E85): 78+ HP Gain & 9+ LB/FT TQ
Cam Style: Hydraulic roller, OE roller
Camshaft Use: Street/Strip
Camshaft Duration: 225/24X
Valve Lift with Factory Rocker Arm Ratio: 0.644 int./0.644 exh.
Lobe Separation (degrees): 113
Torque Converter Information: Can be used with factory converters but aftermarket torque converter is highly recommended
Fuel Lobe Percentage: 32%
Quantity: Sold individually.

Vehicle Fitment:
2020-2023 Chevy Corvette C8
LT2 Crate Engine
