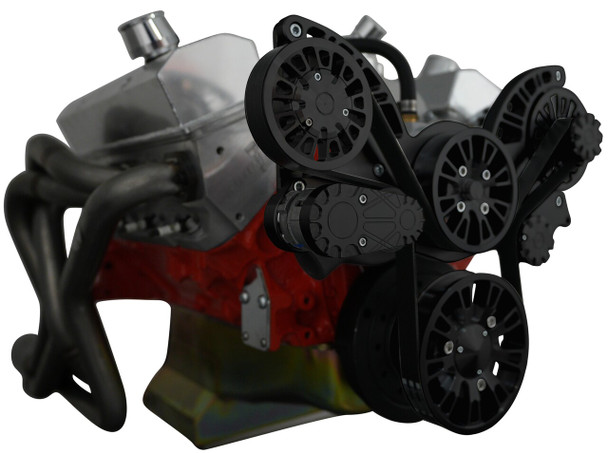

CVF Chevy Small Block CNC Billet Mid-Mount Serpentine System with AC, Power Steering & Alternator (All Inclusive) - Black

B-350-REAPER
All Inclusive REAPER 8 Rib Serpentine System for Chevy Small Block engines with 140 Amp alternator, Peanut Style AC compressor and Power Steering. our premier billet aluminum 8 Rib kit. The Reaper raises the bar for the serpentine market and there is truly nothing like it. It features an innovative bracket design, stainless steel hardware, and billet aluminum spacers. Proudly CNC machined in the USA, the Reaper ensures top-notch performance and eye-catching style, all supported by a lifetime warranty.

Note: This kit will fit 283, 350, and 400 Small Block Chevy Engines.

See the blue product options button to configure your system!
Pricing: $2,580.00

Customize Your Item

- Add Billet Thermostat Housing -
- System Configurations -
- Alternator Options -
- Reservoir Options -
- Power Steering Line Kit Options -
- Power Steering Pump Options -
Qty:
Free Basic Shipping

Description

Kit Includes (All Inclusive):
High Flow Aluminum Short Water Pump
GM Type II Power Steering Pump*
160 Amp, 1-Wire CS130 Alternator; upgradable to 300 amps
Sanden Style Peanut Compressor with 8 Rib Clutch*
Black AC Compressor Fitting*
Premium 8 Rib Belt
8 Rib Water Pump Pulley
8 Rib Crank Pulley
8 Rib Alternator Pulley
8 Rib Power Steering Pulley*
Spring Loaded Belt Tensioner with patent pending adjustable bracket
One Piece Billet Aluminum Bracket
Black Anodized Hub Adapter
Billet Compressor Clutch Cover*
Billet alternator fan
Stainless Steel Mounting Hardware
Billet Spacers (Anodized Black)

* = Items change with configurations

Specs:
Power Steering Included: Yes (can be removed using the product options)
AC Included: Yes (can be removed using the product options)
Mounting Position: Mid-Mount
Finish: Stealth Black
Belt Type: Serpentine 8 Rib
Water Pump Type: Mechanical
Water Pump: Short
Water Pump Rotation: Standard
Engine Fitment : 283, 350, and 400 Small Block Chevy Engines

Application Notes:
Power Steering Lines from pump to reservoir not included
Compatible with Hydro-boost
