BTR Gen III HEMI VVT Stage 3 Camshaft W/ Valve Train Components - 85+ HP Gain

SKU: BTR-HEMICAMKIT-S3

This BTR camshaft and valve train kit includes the well-known Gen III Hemi Stage 3 Camshaft, Mopar Performance 0.650 Lift Valve Spring Kit. Whether your project involves turbocharged, supercharged, or naturally aspirated setups, BTR offers numerous options, all supported by years of expertise, knowledge, and a dedication to power. We offer valve springs for 5.7L, 6.4L & 6.2L applications!

Note: Valve spring kits upgrades and Pushrod options available, see the product options to configure your system and avoid any delays!

*Includes 8-Degree VVT Limiter, Does not include VVT limiter installation tool can be added using the product options. Requires MDS Delete and Custom Tuning!

**The standard springs are for 5.7L hemi engines they can be used in 6.4L applications but requires shimming the valve springs which is not included. We Recommend selecting the 6.4L springs for less stress and proper fitment in the product options!

Was: $827.46

Sale: $727.46

Save: 12%

Save: $100.00

Customize Your Item

Exhaust Pushrod Options

- Exhaust Pushrod Options -

Intake Pushrod Options

- Intake Pushrod Options -

Valve Spring Tool Options

- Valve Spring Tool Options -

Valve Spring Options

- Valve Spring Options -

VVT Phaser Tool Options

- VVT Phaser Tool Options -

MDS Conversation Options

- MDS Conversation Options -

Qty:

Free Basic Shipping

Description
Details
Shipping
Documents

Description

Camshaft Specs
Cam Style: Hydraulic roller, OE roller
Camshaft Duration: 220 int./23X exh.
Valve Lift: 0.587 int./0.586 exh.
Valve Lobe Lift: 0.356 int./0.355 exh.
Lobe Separation (degrees): 112
RPM Operating Range: 2100-7100
Expected Cam Swap Gains: 85 Horsepower, 12 Ft/lbs, extra 1600 RPM of operating range
Torque Converter Information: Aftermarket converter required
Non-MDS Camshaft - Requires MDS Conversion Kit see the product options or for a full complete engine refresh kit including MDS delete parts see PN: BTR-MDS-HEMI

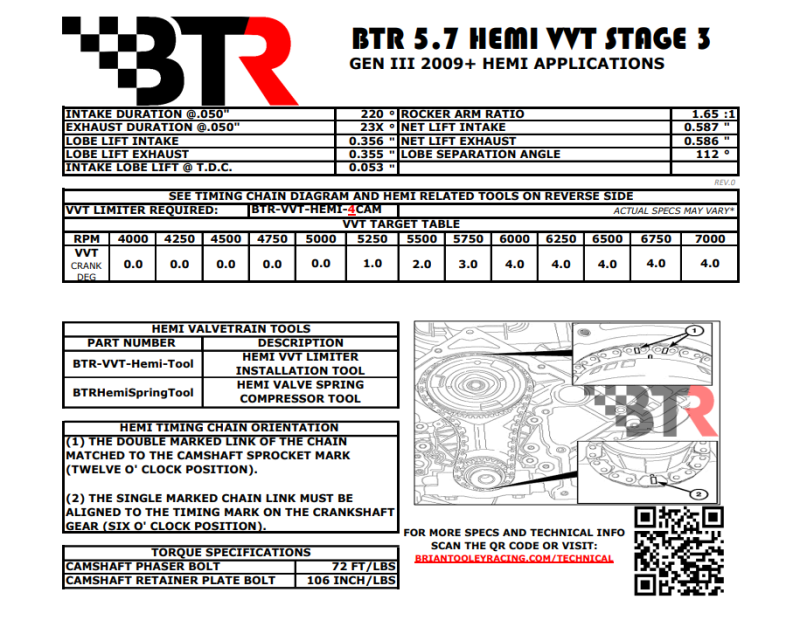

VVT Target Tuning Data (See the documents tab and click on the cam card for VVT Target Table)

Camshaft Qualities
Camshaft Idle Quality: Fair amount of Rumble
Camshaft Chop: 5/10

What is included with the base system?
BTR Gen III Hemi Stage 3 Camshaft
BTR Drop-In 5.7L 625" Lift Valve Spring Kit - (Upgrades Available) *These Valve Springs can be used in 6.4L applications but requires shimming the valve springs which is not included. We Recommend selecting the 6.4L springs for less stress and proper fitment in the product options!
Your Choice of BTR Intake & Exhaust Chromoly Pushrods Size - See The Product Options
8 Degree VVT Limiter Included (Requires VVT Limiter Install Tool Available In The Product Options)

*This system also has many other options see the blue "choose product options" button!
