Wegner 8 Rib LS FEAD System For Magnuson TVS2300 Supercharger With Alternator AC PS and WP - Corvette Belt Line

WAK044

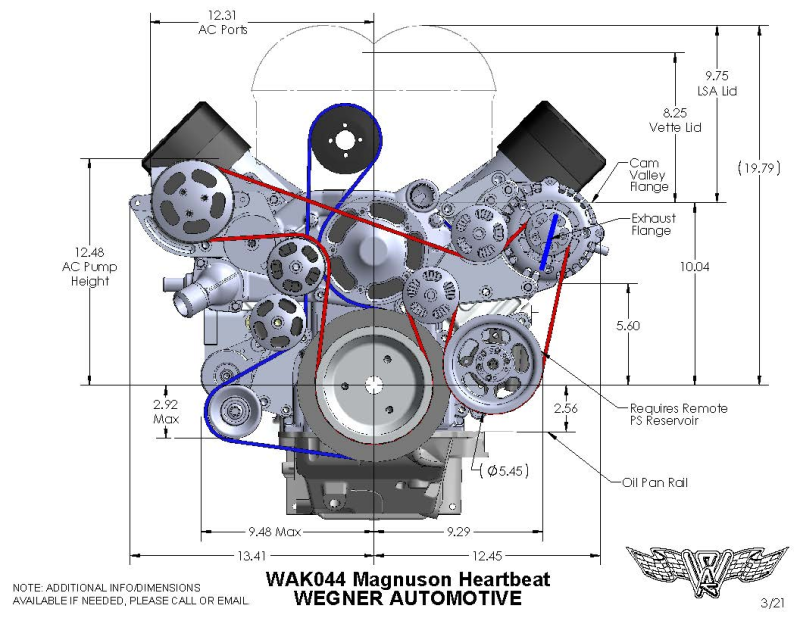

This is the Wegner 8 Rib Serpentine Drive System for Magnuson TVS2300 Supercharger for Chevy Corvette Offset LS engines with Air Conditioning, Power Steering, Alternator, and Water Pump. This kit comes complete with new accessories, belts, billet brackets, pulleys, stainless mounting hardware, and a dedicated 8 rib supercharger belt.

The base price is for the accessories and mounting brackets only does NOT include Magnuson supercharger! For SC see PN# 01-23-62-265-BL or 01-23-62-283-BL

Note: Be sure your supercharger is built for the Corvette C6 Z06 belt line because this kit was designed utilizing the Corvette C6 Z06 belt alignment

*This item has many product options, use the blue "choose product options" button to configure your system!
Pricing: $3,700.00

Customize Your Item

- Alternator Options -
- Wet or Dry Sump? -
- Accessory Finish -
- ATI Damper Options -
- Air Inlet Options -
- PS Reservoir Configuration -
Qty:
Free Basic Shipping

Description

Kit Includes
ATI Y-body (Vette) 8 rib Damper- OE diameter or 12% overdrive
Heavy Duty Gates Belt Tensioners
Standard Internal Fan 170 Amp 1 Wire or GM 2 pin Late Model PowerMaster Alternator
(Optional Upgrade: PowerMaster 225 Amp Internal Fan 1 Wire Alternator, installed on same bracket, longer belt)
PSC GM Type 2 Power Steering Pump with or without attached reservoir
OE LSA /LS3 Water Pump
OE Sanden SD7 AC Compressor
All necessary Wegner CNC Machined accessories
Billet Brackets, Pulleys and Stainless Hardware
Available in Solid Black Anodize, Dual Tone, and Machined Finish

Note: Throttle body, injectors, fuel pump, heat exchanger, and reservoir not included.

COMPATIBLE UPGRADES
Multiple finish options are also available
ATI Super Damper Pulley Diameter
Attached or Remote Mount PS Pump Reservoir<br

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 30.0 lbs.
  • W20.0000” x H20.0000” x L10.0000”
  • Free Basic Shipping

  • Have a question? Ask the Pros
  • 877-514-9494Mon - Fri 8:00 AM - 4:00 PM PST
