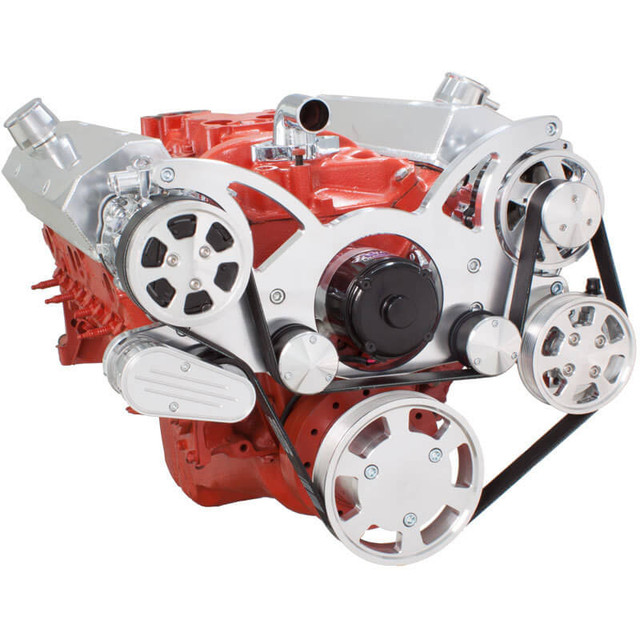

CVF Chevy Small Block Mid-Mount Serpentine System with AC, Power Steering & Alternator with Electric Water Pump (All Inclusive) - Polished

350-WRAPTOR-EWP
All Inclusive WRAPTOR 8 Rib Serpentine System for Chevy Small Block engines with 140 Amp alternator, GM Type II Power Steering Pump and Peanut Style AC compressor. CVF Racing's 8 Rib Serpentine pulleys increase grip, reduce stretching and prevent slipping compared to traditional 6 Rib designs. Spring loaded Gates tensioner ensures proper tension during hard acceleration and deceleration while compensating for belt stretch. Places alternator on the driver's side above the power steering pump.

Note: This kit will fit 283, 350, and 400 Small Block Chevy Engines.

See the blue product options button to configure your system!
Was: $1,895.00
Sale: $1,795.00
Save: 5%
Save: $100.00

Customize Your Item

- Billet Thermostat Housing Option -
- System Configurations -
- Alternator Options -
- Finish Options -
- Reservoir Options -
- Power Steering Line Kit Options -
- Power Steering Pump Options -
Qty:
Free Basic Shipping

Description

Kit Includes (All Inclusive):
160 Amp Chrome 1-Wire CS130 Alternator
35 GMP Electric Water Pump
Chrome Plated AC Compressor*
AC Compressor Clutch Cover*
Chrome Plated Aluminum GM Type II Power Steering Pump*
Remote Mount Reservoir with Bracket*
Premium 8 Rib Belt
Crank Pulley
Crank Pulley Spacer
Alternator Pulley & Cover
Power Steering Pulley*
One Piece Billet Aluminum Bracket
Universal Alternator Fan
All Mounting Hardware

* = parts that change depending on your configuration selection

Specs:
Power Steering Included: Yes (can be removed using the product options)
AC Included: Yes (can be removed using the product options)
Mounting Position: Mid-Mount
Finish: Polished or C3 Clear Coat
Belt Type: Serpentine 8 Rib
Water Pump Type: Electric
Engine Fitment : 283, 350, and 400 Small Block Chevy Engines

Application Notes:
Works with either Mechanical or Electric fuel Pump
Works with either Mechanical or Electric fan (may require long fan spacer)
Works with either Standard or Camel Hump / Fuelie Heads
Power Steering Lines from pump to reservoir not included
Reverse Rotation Water Pump
Compatible with Hydroboost ($275 option)



Details

  • 350-WRAPTOR-EWP
  • 350-WRAPTOR-EWP
  • CVF Racing
  • New

Shipping Information

  • Item Requires Shipping
  • 30.0 lbs.
  • W20.0000” x H20.0000” x L10.0000”
