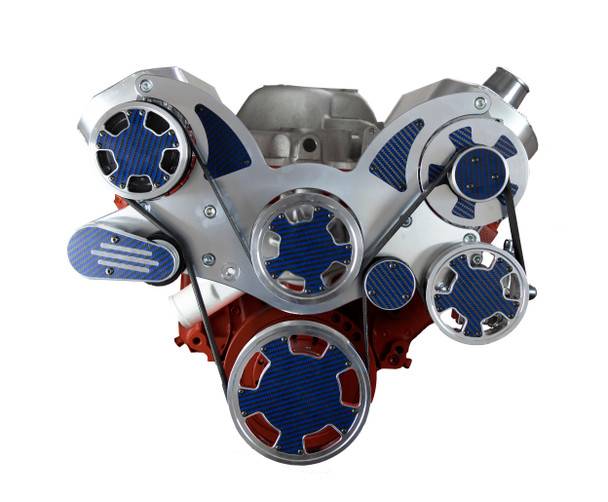

CVF Chevy Small Block Mid-Mount Serpentine System with AC, PS, & ALT (All Inclusive) - Carbon Fiber

CF-350-WRAPTOR-AC
All Inclusive WRAPTOR 8 Rib Serpentine System for Chevy Small Block engines with 100% Authentic Carbon Fiber Inlay. This kit comes with 140 Amp alternator, GM Type II Power Steering Pump and Peanut Style AC compressor. CVF Racing's 8 Rib Serpentine pulleys increase grip, reduce stretching and prevent slipping compared to traditional 6 Rib designs. Spring loaded Gates tensioner ensures proper tension during hard acceleration and deceleration while compensating for belt stretch. Places alternator on the driver's side above the power steering pump.

Note: This kit will fit 283, 350, and 400 Small Block Chevy Engines.

See the blue product options button to configure your system!
Was: $2,295.00
Sale: $2,195.00
Save: 4%
Save: $100.00

Customize Your Item

- Carbon Inlay Color Options -
- System Configurations -
- Alternator Options -
- Finish Options -
- Cooling Fan Options -
- Power Steering Line Kit Options -
- Power Steering Pump Options -
Qty:
Free Basic Shipping

Description

Kit Includes (All Inclusive):
High Flow Aluminum Water Pump
160 Amp Chrome 1-Wire CS130 Alternator
Chrome Plated AC Compressor*
AC Compressor Clutch Cover*
Chrome Plated Aluminum GM Type II Power Steering Pump*
Remote Mount Reservoir with Bracket*
Premium 8 Rib Belt
Water Pump Pulley & Cover
Crank Pulley
Crank Pulley Spacer
Alternator Pulley & Cover
Power Steering Pulley*
One Piece Billet Aluminum Bracket
Universal Alternator Fan
Spring Loaded 8 Rib Tensioner
Idler Pulley and decorative cap

* = parts that change depending on your configuration selection

Specs:
Power Steering Included: Yes (can be removed using the product options)
AC Included: Yes (can be removed using the product options)
Mounting Position: Mid-Mount
Finish: Polished w/ Carbon Fiber
Belt Type: Serpentine 8 Rib
Water Pump Type: Mechanical
Water Pump: Short
Water Pump Rotation: Reverse
Engine Fitment : 283, 350, and 400 Small Block Chevy Engines

Application Notes:
Upgrade to AC Only Requires Compressor Purchase.
Works with either Mechanical or Electric fuel Pump
Works with either Mechanical or Electric fan (may require long fan spacer)
Works with either Standard or Camel Hump / Fuelie Heads
Power Steering Lines from pump to reservoir not included
Reverse Rotation Water Pump
Compatible with Hydroboost ($275 option)
