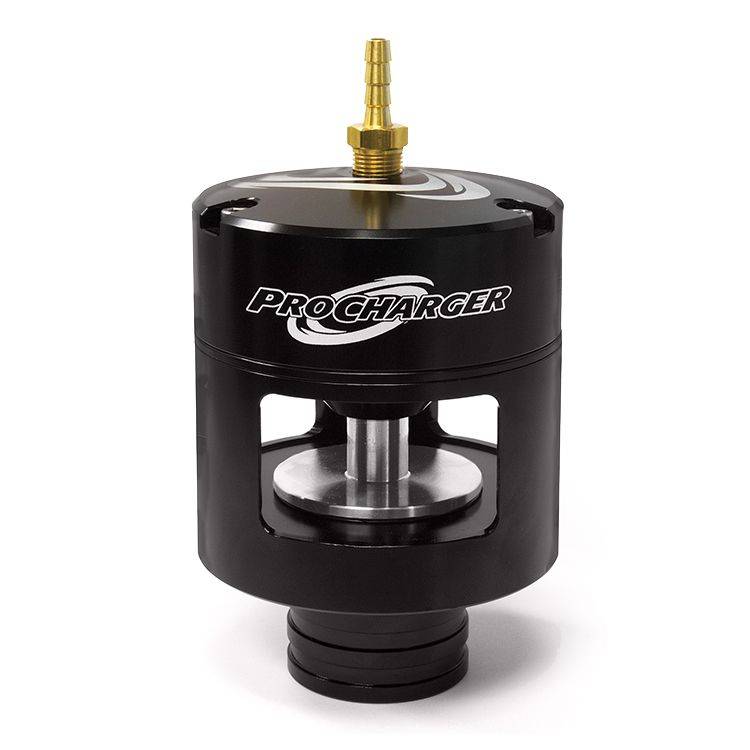

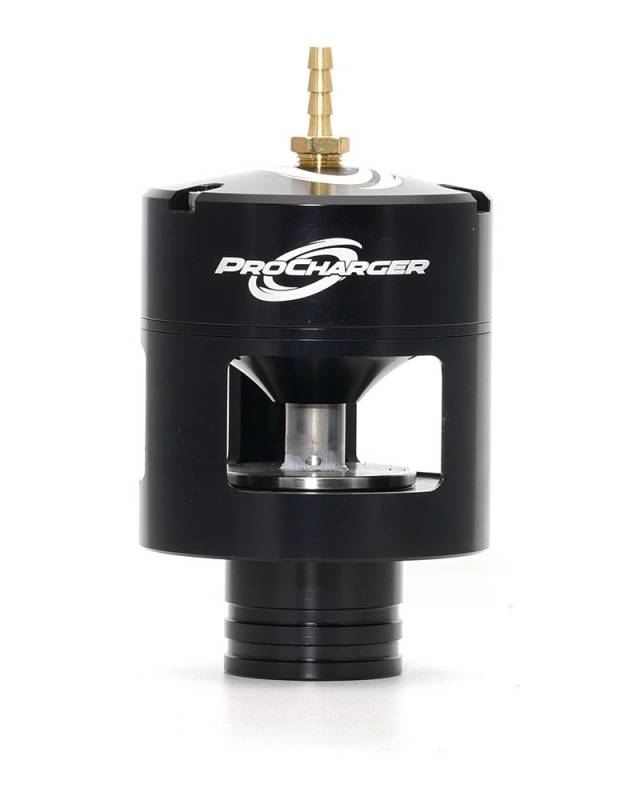

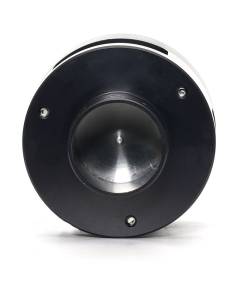

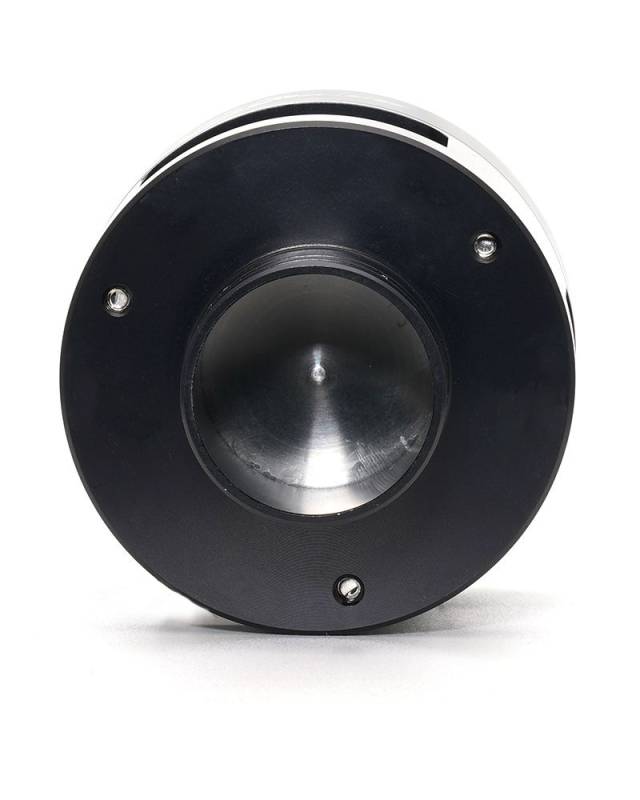

ATI Black Bullet Bypass / Anti-Surge Valve - Open

Applications utilizing intercooling and those operating at boost levels in excess of 8 psi will benefit from the use of a bypass valve (commonly referred to as a “surge” valve). In high RPM, low load conditions, the supercharger is still operating at full speed and attempting to deliver full flow. With the throttle blade(s) at or near the fully closed position, the engine is unable to accept the airflow from the supercharger. In this event the pressure builds until the flow attempts to reverse direction and exit through the compressor, resulting in a harmful condition known as compressor surge. Installing a bypass valve between the supercharger discharge and the carburetor/throttle body prevents damaging compressor surges by diverting the undemanded charge air to the atmosphere during manifold vacuum conditions. ATI’s butterfly-type Pro-Flo is well suited for applications making 750 hp or less. Applications at higher power levels are best suited for use with our poppet-style race valve.

This valve’s compact design also makes it fit easily in tight spaces. It comes in both an open and closed format. The closed format allows you to recirculate air back into the system, or instead to run to an air filter to minimize noise. ProCharger also offers universal vacuum blocks for superchargers, whats a vacuum block? A vacuum block is a component that provides multiple vacuum and boost ports for connecting various accessories and devices in a supercharged engine setup. (EX. Boost Gauges)
