Honda 750cc Fuel Injectors 1988-1991 All Models

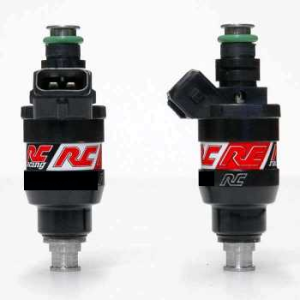

Included: 4 Honda style injectors, spacers/o-rings, and flow sheets. The photo is an example of a similar set.

Notes:
1) You must remove the OEM resistor box and use OBD1 style injector connecting plugs. If your vehicle needs OBD1 style injector clips, please select them from the drop down menu above - additional $19.95.
2) Standard spacers included are for B-Series/H-Series engines. If you need D-Series spacers, please select them from the drop down menu above.


Size Calculation
To determine what size injectors you should use, please visit : RC Engineering's Technical Notes


Specifications
Flow Rate in CC per minute: 750CC/min @ 43.5 PSI
Flow Rate in LB per hour: 71LBS/HR @ 43.5 PSI
Resistance: 12.5 ohms
Voltage: 8-15 Volts, nominal 13.5 Volts
Amperage: 1.0 Amps
Pressure: Min 30PSIG/ Max 100PSIG
Part Number: SL4-750
Spacers/O-rings Included: YES
Warranty: 1 year warranty!
