Trick Flow 500 HP Super 23 Top-End Engine Kits for Small Block Chevrolet
Additional Images
Your Selected Product
Was:
$3099.99
Sale:
$2899.99
Save:
6%
Save:
$200.00
TFS-K314-500-450
Serious horsepower solutions.
Trick Flow has done all of the tweaking and tuning with these engine kits for small Chevy, so you can get dyno-proven horsepower with no guesswork. Based around the dyno-proven Trick Flow Super 23 cylinder heads, these kits scream performance.
These kits include everything you need to give your street or bracket engine a maximum performance makeover! These kits feature Trick Flow's hydraulic roller camshaft with a 246/254 degree duration at .050, .555/.555 in. lift, with 1.5 ratio rockers and a 112 degree lobe separation.
Trick Flow has done all of the tweaking and tuning with these engine kits for small Chevy, so you can get dyno-proven horsepower with no guesswork. Based around the dyno-proven Trick Flow Super 23 cylinder heads, these kits scream performance.
These kits include everything you need to give your street or bracket engine a maximum performance makeover! These kits feature Trick Flow's hydraulic roller camshaft with a 246/254 degree duration at .050, .555/.555 in. lift, with 1.5 ratio rockers and a 112 degree lobe separation.
Availability: Heads are being redesigned, ETA mid 2025.
Description

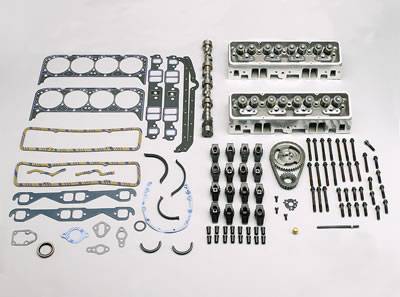

KIT/COMBO CONTENTS:
TFS-31400510 Trick Flow Rocker Arms, Stud Mount, Full Roller, Aluminum, 1.5 Ratio, Fits 3/8 in. Stud, Chevy, Small Block, Set of 16
TFS-31478500 Trick Flow Timing Chain and Gear Set, True Roller, Double Roller, Billet Steel Sprockets, Chevy, Small Block, Set
TFS-30410013-M72 x2 Trick Flow Cylinder Head, Super 23® 195, Fast As Cast®, Assembled, 72cc CNC Chambers, 1.460" Springs, Small Chevy, Each
SUM-G001 Summit Cam Button Spacer, Aluminum, Chevy, Small Block, Each
TFS-31402002 Trick Flow Camshaft, Hydraulic Roller Tappet, Advertised Duration 308/316, Lift .555/.555, Chevy, Small Block, Each
SUM-G1792 Summit Camshaft Lock Plate, Steel, Black Oxide, Chevy, Kit
TFS-92000 Trick Flow Cylinder Head Bolt Kit, Hex Head, Chromoly Steel, Black Oxide Finish, Chevrolet 262-400, Each
TFS-9000 Trick Flow Pushrod Length Checker, Adjustment Range 6.125 in. to 7.500 in., Ball Ends, Each
TFS-31400915 Trick Flow Gaskets, Full Set, Chevy, Small Block Gen I, Set
Quantity: Sold as a kit.
Notes: Will not fit centerbolt-style intake manifolds. Kit includes camshaft lock plate, push rod length checker and thrust button assembly. Standard base circle camshaft, verify clearance in stroker applications.
