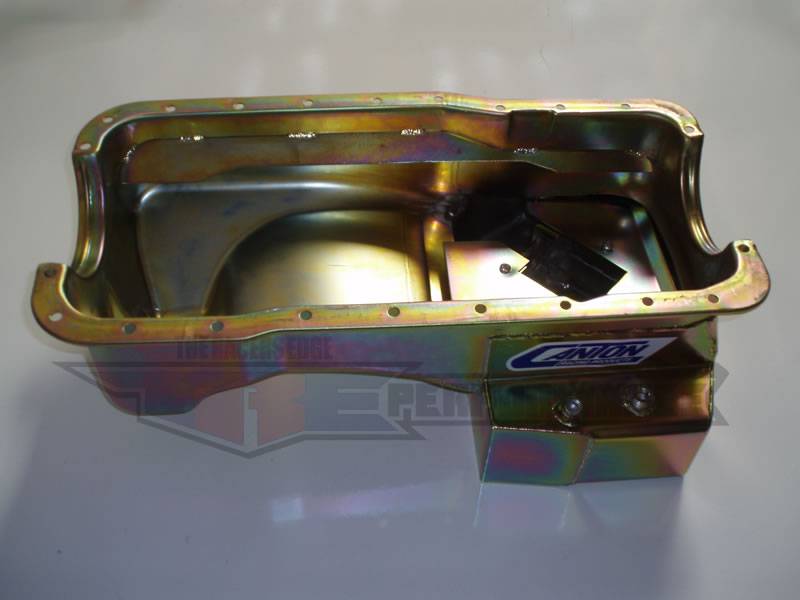

Ford Mustang 289/302 Canton 7 Quart T-Style Rear Sump Oil Pan

15-644
This "T" style rear sump oil pan is for 289-302 blocks in fox body mustangs. It has a 7-1/2" deep, 13-1/2" wide sump and a 7 quart system capacity. This pan includes our four trap door baffle and directional runner system with a bolt in slosh baffle to control oil slosh. Pan also includes a crank scraper, temperature fitting, and a magnetic drain plug. This pan requires one of our pickups and it will clear any 331, 347, or 355 stroker kit.
Was: $446.40
Sale: $379.00
Save: 15%
Save: $67.40

Qty:
Free Basic Shipping

Description

FEATURES: This pan has a stock depth, with a T style rear sump and the Canton track proven diamond shape road race baffle assembly with four trap doors and runners to direct oil to the pickup under all conditions, bolt in windage tray, temperature fitting, magnetic drain plug, crank scraper, and a provision for pan mounted dipstick along with increased oil capacity.

STYLE: Stock depth T style rear sump, baffled for road race with increased oil capacity without losing ground clearance, fits 79 and up Mustangs and 80 & up T-Birds.

SIZE: 7-1/2" Deep, 13-1/2" Wide sump gives a 7 quart system capacity.

OIL PAN PART #: 15-644 for 289-302 blocks.

RECOMMENDED ACCESSORIES:

OIL PUMP PICKUPS:
PART #: 15-645 302 Pickup for 15-644 rear sump pan.
PART #: 15-647 302 Pickup for 15-644 rear sump pan with main girdle.

GASKETS:
PART #: 88-600 4 pc. gasket set for 289-302 blocks
PART #: 88-602 1 pc. gasket for 289-302 blocks.

MAIN SUPPORT:
PART #: 21-060 Ford 289-302 Main Cap Stud Support (Main Girdle) is designed to directly tie into the main caps. The Canton design doesn’t need bushings or spacers and doesn’t require the main caps to be machined to mount it. The end result is a main girdle that offers more support, is easy to install, and will clear large strokers. This support is 1/2" thick and is laser cut out of steel with CNC machined mounting holes and includes all hardware.

MAIN SUPPORT WINDAGE TRAY:
PART #: 20-960 Ford 289-302 Main Cap Stud Support Windage Tray bolts to the pre-drilled and tapped holes on Canton main cap stud supports. These trays keep the windage around the rotating assembly away from the oil in the sump and the oil in the sump away from the rotating assembly. Come with mounting bolts.

WINDAGE TRAY:
PART #: 20-930 Ford 289-302 Screen Windage tray for use WITHOUT a Main Support in rear sump pans. These trays keep the windage around the rotating assembly away from the oil in the sump and the oil in the sump away from the rotating assembly.

WINDAGE TRAY MOUNTING HARDWARE:
PART #: 20-940 Ford 289-302 Windage tray mounting kit for #20-930 includes four main cap studs, nuts, washers and tray mounting hardware.
PART #: 20-941 Ford 289-302 Full main cap stud kit for #20-930 includes the full ten main cap studs, nuts, washers and tray mounting hardware.
PART #: 20-942 Ford R302/351w/351c Windage tray mounting kit for #20-930 includes four main cap studs, nuts, washers and tray mounting hardware.
PART #: 20-943 Ford R302/351w/351c Full main cap stud kit for #20-930 includes the full ten main cap studs, nuts, washers and tray mounting hardware.
