Toyota Supra Turbo 550cc Fuel Injectors 1986-1992

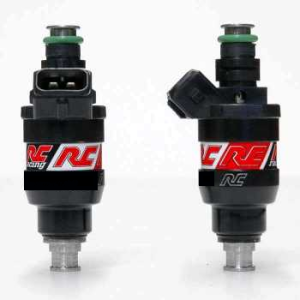

Included: 6 Denso style injectors and flow sheets. The photo is an example of a similar set.

Notes:
1) You must have your computer setup for low impedance.
2) May need injector clips. If you would like new OBD1 Bosch EV1 center notch style injector clips, please select them from the drop down menu above - additional $29.95.

Size Calculation
To determine what size injectors you should use, please visit : RC Engineering's Technical Notes

Specifications
Flow Rate in CC per minute: 550CC/min @ 43.5 PSI
Flow Rate in LB per hour: 52LBS/HR @ 43.5 PSI
Resistance: 2.5 ohms
Voltage: 8-15 Volts, nominal 13.5 Volts
Amperage: Peak 4.0 Amps / Hold 1.5 Amps
Pressure: Min 30PSIG/ Max 100PSIG
Part Number: PL9-550
Warranty: 1 year warranty!
