Mitsubishi Eclipse V6 750cc Fuel Injectors 2000-2005
SH4-750D
These RC Engineering 750cc High Resistance Saturated fuel injectors are flow matched and will fit every model, engine, type or style for the following vehicles:
2000-2005 Mitsubishi Eclipse V6
Part # SH4-750D
2000-2005 Mitsubishi Eclipse V6
Part # SH4-750D
Description

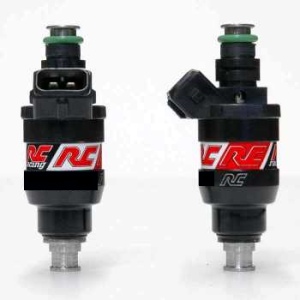

Included: 6 Denso style injectors and flow sheets. The photo is an example of a similar set.
Notes:
1) If you would like new OBD1 Bosch EV1 center notch style injector clips, please select them from the drop down menu above - additional $29.95.
Size Calculation
To determine what size injectors you should use, please visit : RC Engineering's Technical Notes
Specifications
Flow Rate in CC per minute: 750CC/min @ 43.5 PSI
Flow Rate in LB per hour: 71LBS/HR @ 43.5 PSI
Resistance: 12.5 ohms
Voltage: 8-15 Volts, nominal 13.5 Volts
Amperage: 1.0 Amps
Pressure: Min 30PSIG/ Max 100PSIG
Part Number: SH4-750D
Warranty: 1 year warranty!
Notes:
1) If you would like new OBD1 Bosch EV1 center notch style injector clips, please select them from the drop down menu above - additional $29.95.
Size Calculation
To determine what size injectors you should use, please visit : RC Engineering's Technical Notes
Specifications
Flow Rate in CC per minute: 750CC/min @ 43.5 PSI
Flow Rate in LB per hour: 71LBS/HR @ 43.5 PSI
Resistance: 12.5 ohms
Voltage: 8-15 Volts, nominal 13.5 Volts
Amperage: 1.0 Amps
Pressure: Min 30PSIG/ Max 100PSIG
Part Number: SH4-750D
Warranty: 1 year warranty!
