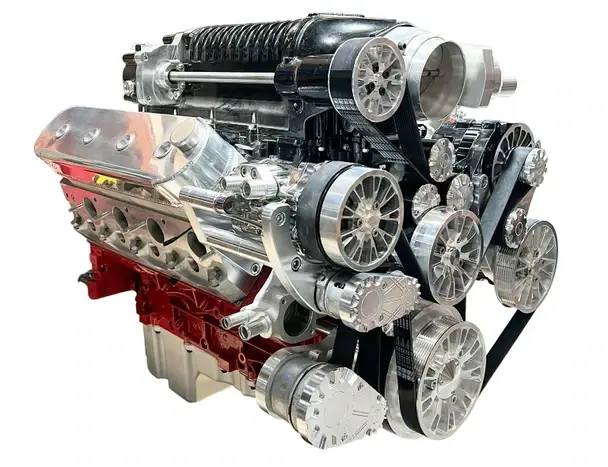

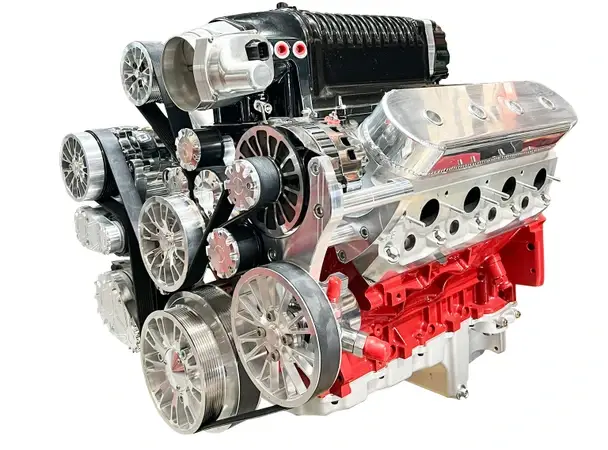

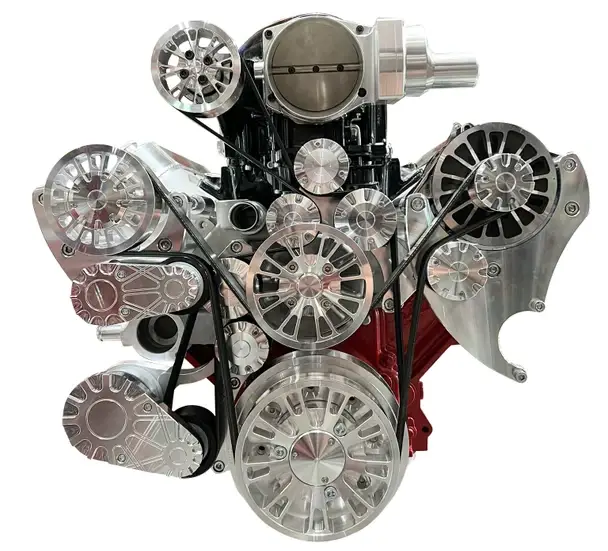

CVF Reaper LS 10-Rib FEAD System For Whipple 3.0L High Mount Supercharger with Alternator, AC & Power Steering - Polished

Does not include the Whipple 2.3L or 2.9L headunit. For those looking to use the Whipple 2.3L headunit they will need to supply their own belt the belt included with the CVF system will not fit.

Wraptor System Includes:
High Flow Aluminum LS1 Water Pump
GM Type II Power Steering Pump (can be removed in the product options)
140 Amp, 1-Wire CS130 Alternator
Sanden Style Peanut Compressor with 8 Rib Clutch
AC Compressor Fitting
Remote Mount Reservoir with Mounting Bracket (can be removed in the product options)
Gates Premium Green Strip 10 rib/8 Rib Belts
8 Rib Water Pump Pulley
10 Rib Crank Pulley
8 Rib Alternator Pulley
8 Rib Power Steering Pulley (can be removed in the product options)
Spring Loaded Belt Tensioner with patent pending adjustable bracket
Billet Aluminum Brackets
Black Anodized Hub Adapter for attaching crank pulley to SFI or ATI balancers.
Billet Compressor Clutch Cover (can be removed in the product options)
Billet alternator fan
Stainless Steel Mounting Hardware
Billet Spacers (Anodized Clear)

Compatible Upgrades:
Option to add a Whipple Head Unit available

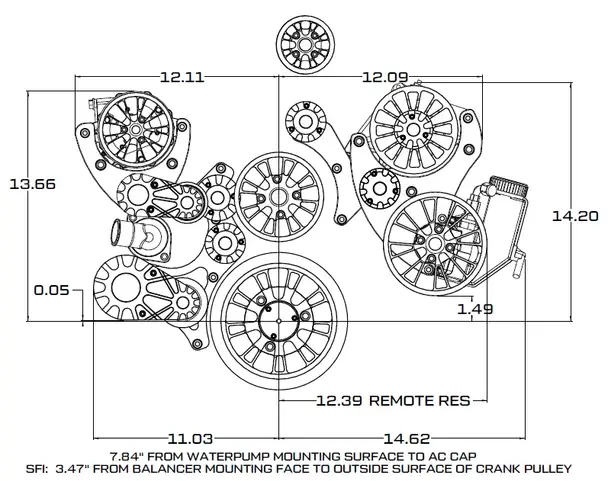

Supercharger Dimensions:
The 3.0L supercharger and intake manifold sits about 21" high above the crank centerline, 3.0L supercharger itself with intake manifold is about 12".

*For those looking to upgrade from the standard 3" intercooler core to the larger 3.75" intercooler cores it will add another 1" to the total height of the supercharger with the intake manifold.

Application Notes:
Power Steering Lines from pump to reservoir not included
Requires Electric Fans
Power Steering Lines from pump to reservoir not included
Compatible with Hydro-boost
