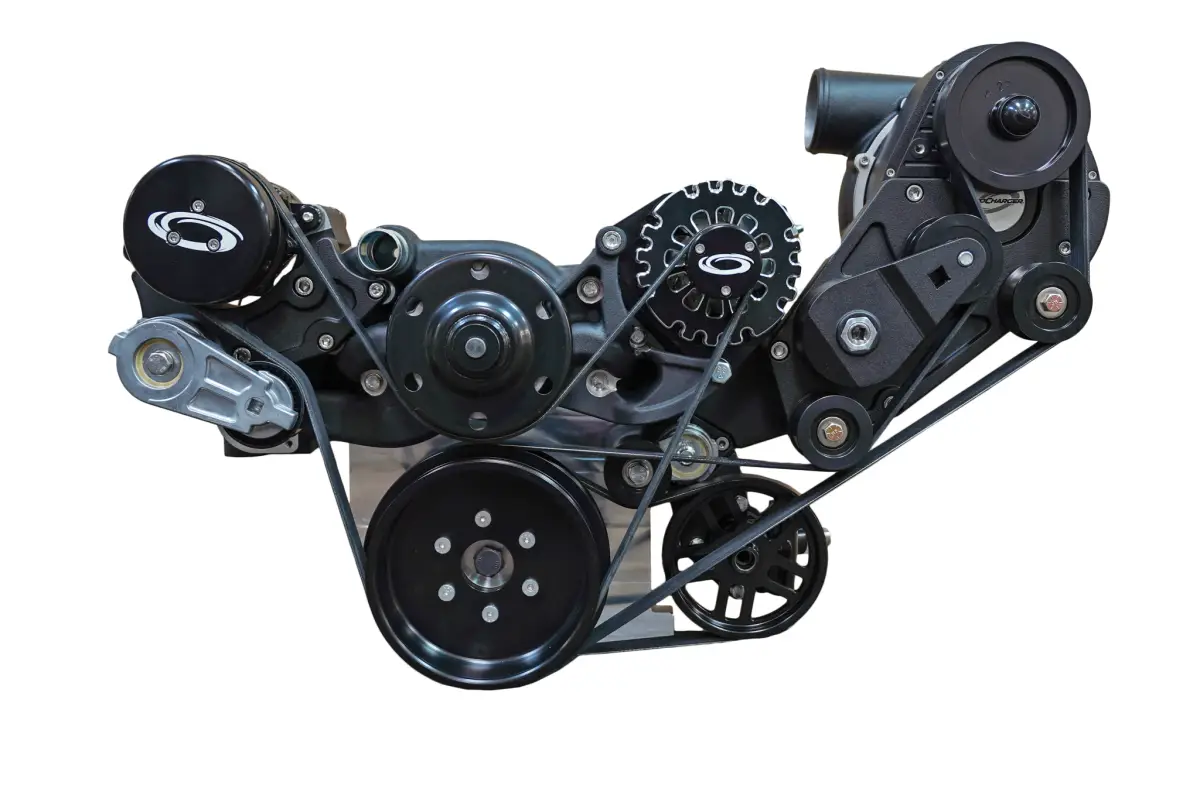

ProCharger LT Chevy Serpentine Accessory Drive Kit With F-1A-94 Supercharger Intercooled Head Unit - Dedicated 8-Rib

1LT400-F1A94/F1C/F1R-I
The ProCharger Accessory Drive Kit offers the sleek design style you expect from ProCharger, and a unique supercharger bracket design that offers you the convenience of adding the supercharger kit when you are ready. Specifically designed for Chevy LT engines, this kit includes everything you’ll need to fit the accessories you want. The design features our popular 8-rib or 10-rib pulleys that increase grip, reduce stretching and prevent belt slippage when compared to the traditional six rib designs.

This kit will fit any OE LT block, This system comes with ProCharger supercharger bracket, Alternator bracket, ProCharger supercharger, Power steering bracket & A/C Bracket

Requires Balancer
Innovators West PN: 780 (Wet-Sump)
Innovators West PN: 790 (Dry-Sump)
*ATI Balancers are NOT compatible

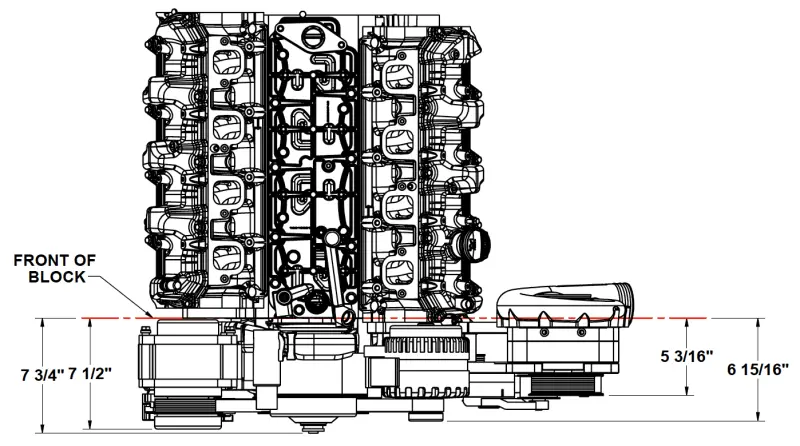

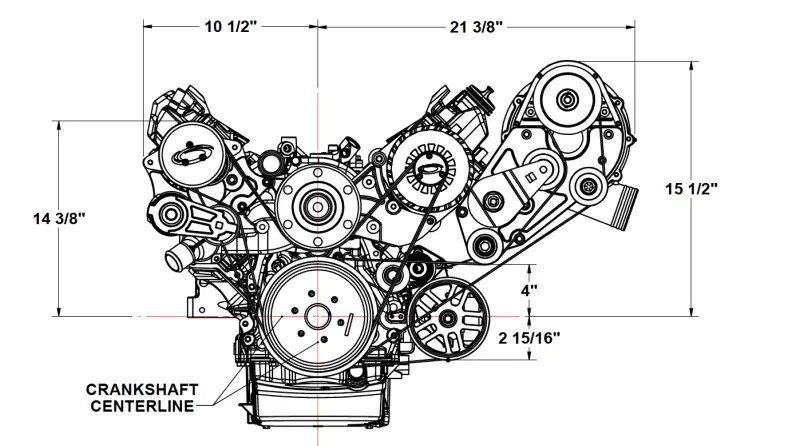

*For LT FEAD Dimension Information See Below!
Pricing: $9,598.00

Customize Your Item

- 10 Rib Belt Drive Option -
- A/C Finish Options -
- Carburetor Bonnet Options -
- Crank Pin Kit -
- Gearset Upgrade -
- Head Unit Finish Options -
- AC Compressor Options -
- Alternator Options -
- Powersteering Options -
- Water Pump Options -
- Omit A/C & Pulley Options -
- Omit P/S Bracket & Pulley Option -
- PS Bracket Finish Options -
- Main SC Bracket, Alt Bracket & T -
- Intercooler Tubing Options -
Qty:
Free Basic Shipping

Description

ProCharger Kit Includes:
Water pump pulley, and belt (standard satin finish photo is for reference)
8-Rib Crank Pulley and belt
Alternator bracket, pulley, and belt (standard satin finish photo is for reference)
Power Steering bracket, pulley, and belt (standard satin finish photo is for reference)
A/C Pulley and belt
ProCharger Supercharger Bracket 8 rib, Tensioner & Belt (standard satin finish photo is for reference)
F-1A-94 Supercharger Head Unit capable of 1300 horsepower (standard satin finish photo is for reference)
3 Core 1050HP Intercooler
Race Valve (1200 HP)

Accessories Needed:
A/C Compressor: SD-7B10 Sanden A/C Compressor - 6 Rib
Alternator: GM #20881337 2007-2013 or equivalent
Power Steering: GM Type 2 Power Steering Pump Tuff Stuff 6175AL or equivalence, remote reservoir required for supercharged applications
Water pump supplied

Additional Notes:
Pinning crank pulley is recommended
Accessory Pulleys included
Can be ordered without A/C
Can be ordered without power steering
Designed for standard deck height wet sump, aluminum & iron block LS engines (Except LS7 & VVT Models)
Minor modification required for iron block engines with power steering
