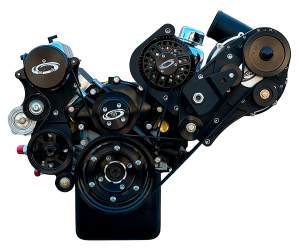

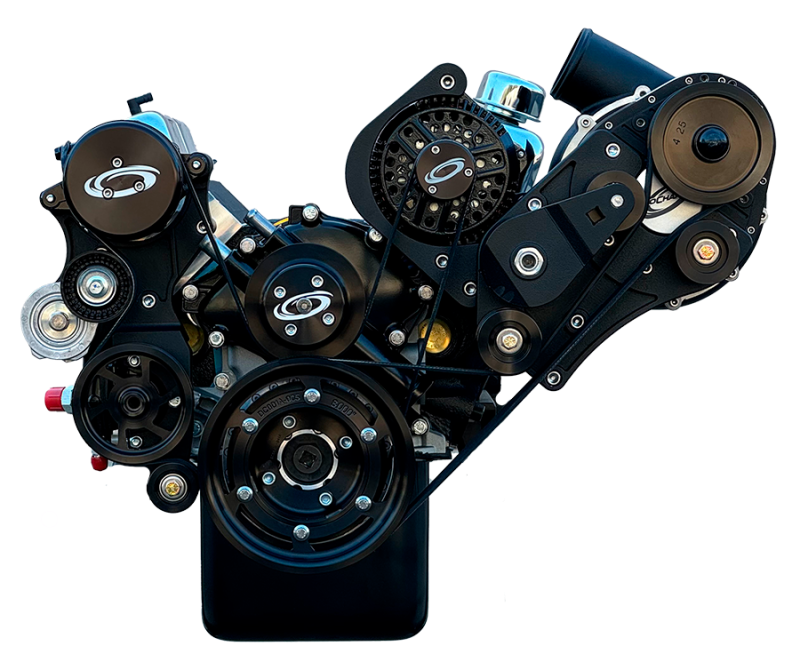

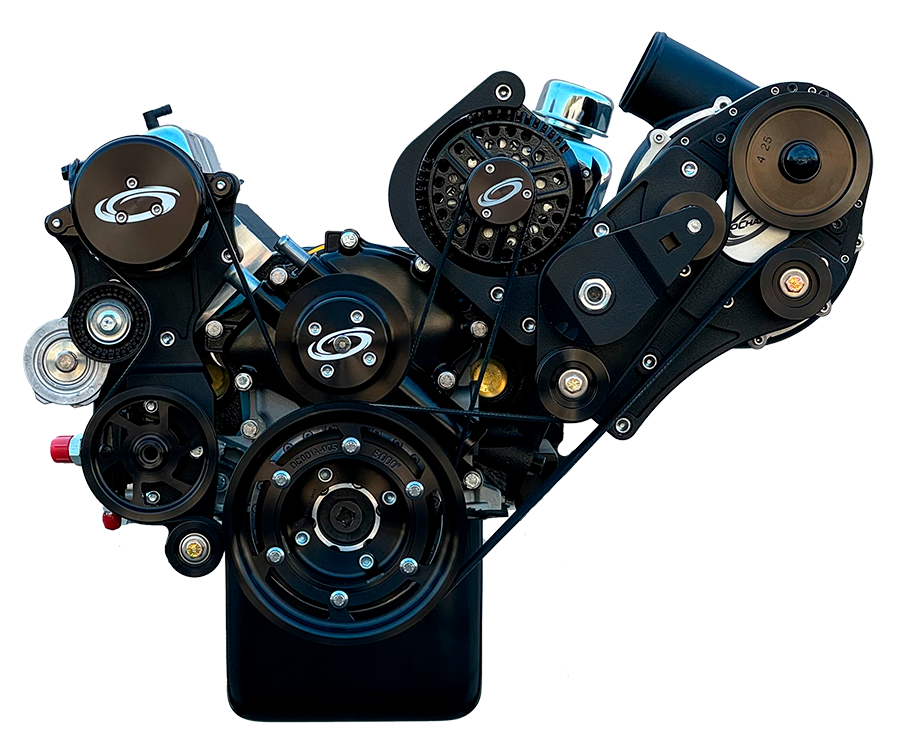

ProCharger SBF Ford Modular 10-Rib Front End Accessory Serpentine Drive Kit With F1X Supercharger Head Unit

1EX400-F1X
The ProCharger Accessory Drive Kit offers the sleek design style you expect from our brand, and a unique supercharger bracket design that offers you the convenience of adding the supercharger kit when you are ready. Specifically designed for Ford Small block engines, this kit includes everything you’ll need to fit the accessories you want. The design features our popular 8-rib or 10-rib pulleys that increase grip, reduce stretching and prevent belt slippage when compared to the traditional six rib designs.

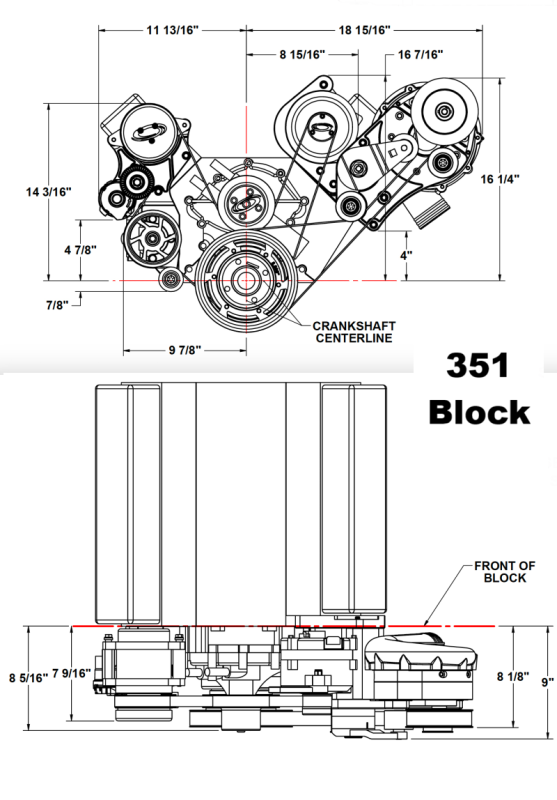

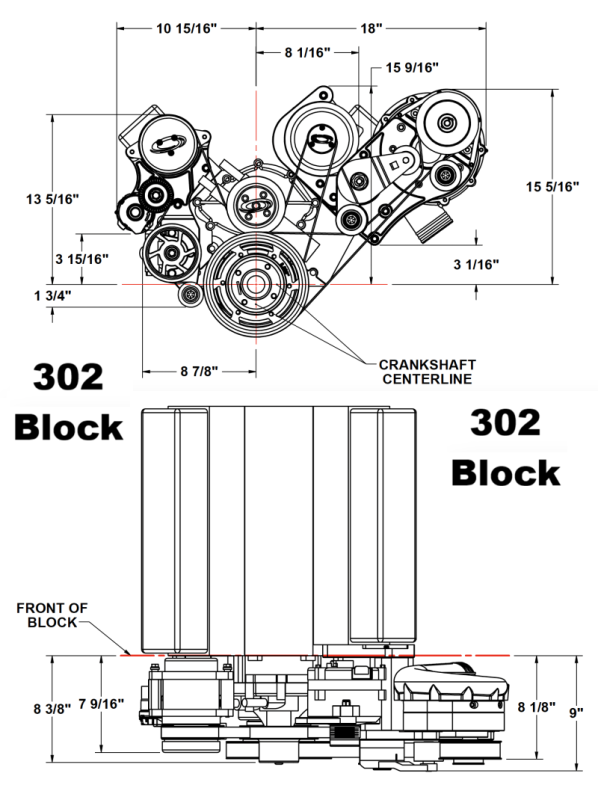

Kit will fit any SBF 8.2 deck or 9.5 deck blocks, This system comes with ProCharger supercharger bracket, Alternator bracket, ProCharger supercharger, Power steering bracket & A/C Bracket Does NOT include bypass valve, carb bonnet, intercooler or any tubing.

*Does not include water pump*. Pictures are for reference accessories would come satin, optional black or polish finishes are available see product options.

Note: Make sure your specify if you have a 8.2 deck or 9.5 deck block
Pricing: $9,778.00

Customize Your Item

- Carburetor Bonnet Options -
- Gearset Upgrade -
- Head Unit Finish Options -
- Intercooler Options -
- Omit A/C & Pulley Options -
- Omit P/S Bracket & Pulley Option -
- A/C Compressor Options -
- Alternator Options -
- Powersteering Pump Options -
- Water Pump Options -
- -
- Intercooler Tubing Options -
Qty:
Free Basic Shipping

Description

ProCharger Kit Includes:
Water pump pulley, and belt
Crank Pulley and belt
Alternator bracket, pulley, and belt
Power Steering bracket, pulley, and belt
A/C Pulley and belt
ProCharger Supercharger Bracket 8 rib, Tensioner & Belt
F1X Supercharger Head Unit capable of 1400 horsepower
Race Valve (1200 HP)

Additional Notes:
No accessories provided – see list of accessories required
Accessory Pulleys included
Can be ordered without A/C
Can be ordered without PS
Requires factory or aftermarket 1986-1993 balancer

Accessories Needed:
Balancer = 1986-1993 OEM or aftermarket
A/C Compressor = (Sanden SD7 6-rib) Tuff Stuff Part # 4517NB6G (polished) or 4517GBLA (Black) or similar
Alternator = 3G Ford Unit
Power Steering pump = (GM Compact Type 2) Tuff Stuff Part # 6170ALP (polished) or 6170ALB (black) or similar
Water Pump = 1986-1993 OEM or aftermarket
