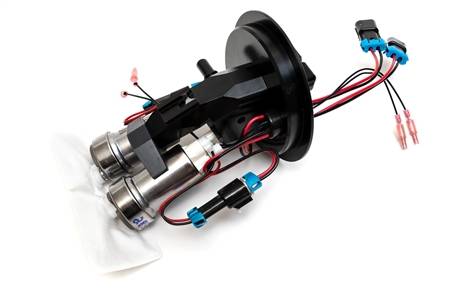

Fore Innovations 2020+ Ford Mustang GT500 Return-Style Triple Fuel Pump Module - 1200+ rwhp capable

FI-92-900
In Stock
Pricing: $739.00

Free Basic Shipping

Customize Your Item

0 of 7 required chosen

Set 1 of 7Electrical Upgrade OptionsRequired

Set 2 of 7Feed Fitting OptionsRequired

Set 3 of 72nd Fuel Pump OptionsRequired

Set 4 of 7Fuel Pump OptionsRequired

Set 5 of 73rd Fuel Pump OptionsRequired

Set 6 of 7Fuel TypeRequired

Set 7 of 7Return Fitting OptionsRequired

Qty:
0 of 7 required chosen
Fore Innovations 2020+ Ford Mustang GT500 Return-Style Triple Fuel Pump Module - 1200+ rwhp capable
$739.00
Need help matching a part number? Call 877-514-9494.
Use in conjunction with a complete return style fuel system for 1200+ rwhp with triple fuel pumps (recommended to run one pump full time, then activate secondary pumps under load). Retains OE fuel level sender, EVAP functionality, and tank transfer, and filler neck. This component requires the use of external feed and return lines, external filtration (for injectors), external regulation, and an upgraded electrical system. Upgraded fuel rails and an inline check valve is recommended. Supplies port fuel injection and optional wet nitrous.

California Residents: Prop 65 Warning

WARNING: Cancer and Reproductive Harm

Description

What's included in the base system?
Billet Top Hat
Polymer Triple Fuel Pump Holder
Wires for OE sensors (such as level, temperature) with bullet connectors to be reconnected to OE harness
6 inches of insulated pump power wire protrude from top of hermetic seal with bare ends

*This system does NOT include feed fittings, return fittings, fuel pumps, fuel pressure regulator, fuel lines or fuel pump filter.

Fitment:
2020+ Ford Mustang GT500

Frequent Asked Questions

Q: Can I use this system with E85?
A: Yes, as long as you select microglass ssd or stainless filter element and select E85 rated fuel pumps.

Q: What kind of fuel pump controller should I use?
A: FC2: controller can only operate two pumps simultaneously, using OE or aftermarket switching signal. Best for controlling two small fuel pumps for street duty, or two large fuel pumps for track use only.

FC3: controller can run 1, 2, or 3 pumps full time, with remaining pumps activated on demand. Requires external switch (i.e. Hobbs, RPM, etc) best for controlling two or three large fuel pumps for street duty and minimizing heat.

Aeromotive ReturnX Standalone Pulse Width Modulation (PWM): The best overall option, this controller offers true variable-speed control, running the pump(s) at 45-75% power during idle and cruising, then smoothly ramping additional pumps up to full output as demand increases. This reduces heat in both the fuel and the pump(s), extending pump life and significantly reducing vapor lock risk. The system is MAP-based, using vacuum reference for naturally aspirated applications or boost reference for forced induction applications. Does NOT require an external switch.

Fitment

Details

Shipping Information

  • Item Requires Shipping
  • 50.0 lbs.
  • W7.0000” x H6.5000” x L8.2500”
  • Free Basic Shipping
