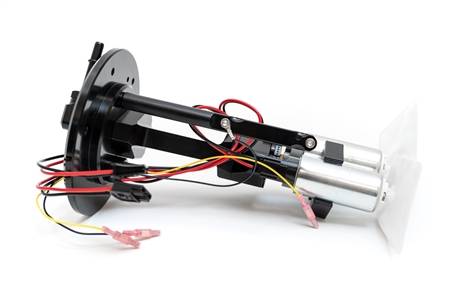

Fore Innovations 99-03 Ford F-150 Short Bed V8 / 99-04 Ford F-150 SVT Lightning Return-Style Triple Fuel Pump Module - 1500+ RWHP Capable

The module is constructed from CNC machined aluminum, anodized black. All bare hardware is stainless steel and brass, and all o-rings are Viton. The wires pass through the flange using our proven hermetic seal. The pump outlets are sealed using our Viton sealed cartridges using internal stainless snap rings. (no internal fuel hose or clamps). Our FC3 will operate one pump full time to keep fuel heat and noise levels down, and the remaining pumps will activate under a trigger signal from your boost controller, aftermarket engine management system, or a pressure switch. Alternatively, you can run all pumps full time. Ideally, we suggest running a minimal full time pump configuration, then operate higher performance pumps in the secondary positions and only when necessary.

Note: Fore Innovations offers a compact and wide module depending on what pumps are selected for the compact module you can only use one 255lph or 340LPH pump and one 255-535lph pump. For the wide module you can use any variation of pumps.
