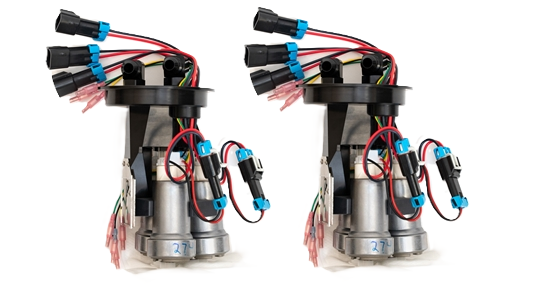

Fore Innovations 2004-2014 Lamborghini Gallardo Return-Style Triple Fuel Pump Modules - 1600+rwhp on gas per module

FI-72-900 x2
Use in conjunction with a complete return style fuel system for 1600+ rwhp with triple fuel pumps (recommended to run one pump full time, then activate secondary pumps under load). Retains OE fuel level sender, EVAP functionality, and tank transfer, and filler neck. This component requires the use of external feed and return lines, external filtration (for injectors), external regulation, and an upgraded electrical system. Upgraded fuel rails and an inline check valve is recommended. Supplies port fuel injection and optional wet nitrous.

Note: This system includes two triple pump modules for the factory saddle fuel tank (6 fuel pumps total)

*Notice for those making 950+HP aftermarket fuel rails are required as the stock rails become a bottle neck. We offer Fore Innovation billet fuel rails that are 1600+ HP capable PN: 73-900
Pricing: $2,438.00

Customize Your Item

- 1st Module Electrical Upgrade -
 * required
- 2nd Module Electrical Upgrades -
 * required
- 1st Module Feed Fitting Options -
 * required
- 2nd Module Feed Fitting Options -
 * required
- 5th Fuel Pump Options -
 * required
- 6th Fuel Pump Options -
 * required
- 2nd Fuel Pump Options -
 * required
- 4th Fuel Pump Options -
 * required
- Fuel Pump Options -
 * required
- 3rd Fuel Pump Options -
 * required
- Fuel Type -
 * required
- Honeywell Switch Options -
 * required
- 1st Module Return Fitting Option -
 * required
- 2nd Module Return Fitting Option -
 * required
Qty:
Free Basic Shipping

Description

What's included in the base system?
Billet Top Hat x2
Polymer Triple Fuel Pump Holder x2
Wires for OE sensors (such as level, temperature) with bullet connectors to be reconnected to OE harness x2
6 inches of insulated pump power wire protrude from top of hermetic seal with bare ends x2

*This system does NOT include feed fittings, return fittings, fuel pumps, fuel pressure regulator, fuel lines or fuel pump filter.

Fitment:
2004-2013 Lamborghini Gallardo

Frequent Asked Questions

Q: Can I use this system with E85?
A: Yes, as long as you select E85 rated fuel pumps.

Q: Should I select the FC2 or FC3 controller?
A: FC2: controller can only operate two pumps simultaneously, using OE or aftermarket switching signal. Best for controlling two small fuel pumps for street duty, or two large fuel pumps for track use only.

FC3: controller can run 1, 2, or 3 pumps full time, with remaining pumps activated on demand. Requires external switch (i.e. Hobbs, RPM, etc) best for controlling two or three large fuel pumps for street duty and minimizing heat.
