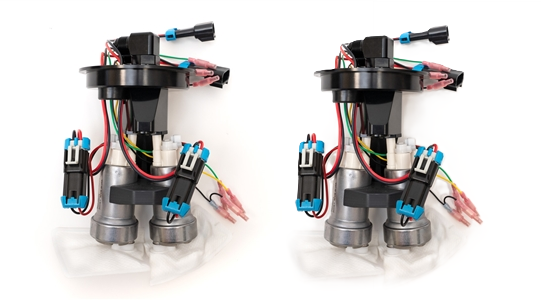

Fore Innovations 2004-2014 Lamborghini Gallardo Return-Style Dual Fuel Pump Modules - 1000rwhp on gas per module

FI-72-800 x2
In Stock
Pricing: $2,132.00

Free Basic Shipping

Customize Your Item

0 of 12 required chosen

Set 1 of 121st Module Electrical UpgradeRequired

Set 2 of 122nd Module Electrical UpgradesRequired

Set 3 of 121st Module Feed Fitting OptionsRequired

Set 4 of 122nd Module Feed Fitting OptionsRequired

Set 5 of 122nd Fuel Pump OptionsRequired

Set 6 of 124th Fuel Pump OptionsRequired

Set 7 of 12Fuel Pump OptionsRequired

Set 8 of 123rd Fuel Pump OptionsRequired

Set 9 of 12Fuel TypeRequired

Set 10 of 12Honeywell Switch OptionsRequired

Set 11 of 121st Module Return Fitting OptionRequired

Set 12 of 122nd Module Return Fitting OptionRequired

Qty:
0 of 12 required chosen
Fore Innovations 2004-2014 Lamborghini Gallardo Return-Style Dual Fuel Pump Modules - 1000rwhp on gas per module
$2,132.00
Need help matching a part number? Call 877-514-9494.
Use in conjunction with a complete return style fuel system for 1000+ rwhp with dual fuel pumps (recommended to run one pump full time, then activate secondary pumps under load). Retains OE fuel level sender, EVAP functionality, and tank transfer, and filler neck. This component requires the use of external feed and return lines, external filtration (for injectors), external regulation, and an upgraded electrical system. Upgraded fuel rails and an inline check valve is recommended. Supplies port fuel injection and optional wet nitrous.

Note: This system includes two dual pump modules for the factory saddle fuel tank (4 fuel pumps total)

*Notice for those making 950+HP aftermarket fuel rails are required as the stock rails become a bottle neck. We offer Fore Innovation billet fuel rails that are 1600+ HP capable PN: 73-900

California Residents: Prop 65 Warning

WARNING: Cancer and Reproductive Harm

Description

What's included in the base system?
Billet Top Hat x2
Polymer Dual Fuel Pump Holder x2
Wires for OE sensors (such as level, temperature) with bullet connectors to be reconnected to OE harness x2
6 inches of insulated pump power wire protrude from top of hermetic seal with bare ends x2

*This system does NOT include feed fittings, return fittings, fuel pumps, fuel pressure regulator, fuel lines or fuel pump filter.

Fitment:
2004-2013 Lamborghini Gallardo

Frequent Asked Questions

Q: Can I use this system with E85?
A: Yes, as long as you select E85 rated fuel pumps.

Q: What kind of fuel pump controller should I use?
A: FC2: controller can only operate two pumps simultaneously, using OE or aftermarket switching signal. Best for controlling two small fuel pumps for street duty, or two large fuel pumps for track use only.

FC3: controller can run 1, 2, or 3 pumps full time, with remaining pumps activated on demand. Requires external switch (i.e. Hobbs, RPM, etc) best for controlling two or three large fuel pumps for street duty and minimizing heat.

Aeromotive ReturnX Standalone Pulse Width Modulation (PWM): The best overall option, this controller offers true variable-speed control, running the pump(s) at 45-75% power during idle and cruising, then smoothly ramping additional pumps up to full output as demand increases. This reduces heat in both the fuel and the pump(s), extending pump life and significantly reducing vapor lock risk. The system is MAP-based, using vacuum reference for naturally aspirated applications or boost reference for forced induction applications. Does NOT require an external switch.



Fitment

Details

Shipping Information

  • Item Requires Shipping
  • 50.0 lbs.
  • W7.0000” x H6.5000” x L8.2500”
  • Free Basic Shipping
