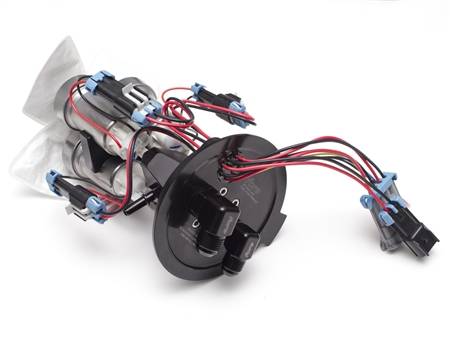

Fore Innovations 2003-2009 VW Golf MK5 R32 Return-Style Triple Fuel Pump Module - 1400rwhp on gas

FI-46-900
Use in conjunction with a complete return style fuel system for 1200+ rwhp with dual fuel pumps (recommended to run one pump full time, then activate secondary pump under load). Retains OE fuel level sender, EVAP functionality, and tank transfer, and filler neck. This component requires the use of external feed and return lines, external filtration (for injectors), external regulation, and an upgraded electrical system. Upgraded fuel rails and an inline check valve is recommended.

*Notice, requires high flow aftermarket fuel rails as the OE fuel rails are a huge bottleneck.
Pricing: $729.00

Customize Your Item

- Electrical Upgrade Options -
 * required
- Feed Fitting Options -
 * required
- 2nd Fuel Pump Options -
 * required
- Fuel Pump Options -
 * required
- 3rd Fuel Pump Options -
 * required
- Fuel Type -
 * required
- Honeywell Switch Options -
 * required
- Return Fitting Options -
Qty:
Free Basic Shipping

Description

What's included in the base system?
Billet Top Hat
Polymer Triple Fuel Pump Holder
Wires for OE sensors (such as level, temperature) with bullet connectors to be reconnected to OE harness
6 inches of insulated pump power wire protrude from top of hermetic seal with bare ends

*This system does NOT include feed fittings, return fittings, fuel pumps, fuel pressure regulator, fuel lines or fuel pump filter.

Fitment:
2003-2009 VW Golf Mk5 (designed for R32)
Pending fitment test on other VW PQ35 Platforms (i.e. Audi A3 Mk3, TT Mk2)

Frequent Asked Questions

Q: Can I use this system with E85?
A: Yes, as long as you select E85 rated fuel pumps.

Q: Should I select the FC2 or FC3 controller?
A: FC2: controller can only operate two pumps simultaneously, using OE or aftermarket switching signal. Best for controlling two small fuel pumps for street duty, or two large fuel pumps for track use only.

FC3: controller can run 1, 2, or 3 pumps full time, with remaining pumps activated on demand. Requires external switch (i.e. Hobbs, RPM, etc) best for controlling two or three large fuel pumps for street duty and minimizing heat.

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 50.0 lbs.
  • W7.0000” x H6.5000” x L8.2500”
  • Free Basic Shipping
