Fore Innovations 2007-2025 Nissan GTR R35 Return-Style Dual Fuel Pump Module - 1600+whp on gas

FI-34-900
Use in conjunction with a complete return style fuel system for 1600+whp with triple fuel pumps (recommended to run one pump full time, then activate secondary pumps under load). Retains OE fuel level sender, EVAP functionality, and tank transfer, and filler neck. This component requires the use of external feed and return lines, external filtration (for injectors), external regulation, and an upgraded electrical system. Upgraded fuel rails and an inline check valve is recommended.

This product has many options see the blue "choose product options" to configure your system and avoid any delays!

Note: This system does NOT include fuel pumps or fuel pump filter they can all be added using the product options.

*Notice, for those making 900+HP aftermarket fuel rails are required as the stock rails become a bottle neck. We offer the Fore Innovations fuel rails PN: 35-900
Pricing: $1,219.00

Customize Your Item

- Electrical Upgrade Options -
 * required
- Feed Fitting Options -
 * required
- 2nd Fuel Pump Options -
 * required
- Fuel Pump Options -
 * required
- 3rd Fuel Pump Options -
 * required
- Honeywell Switch Options -
 * required
- Return Fitting Options -
 * required
Qty:
Free Basic Shipping

Description

What's included in the base system?

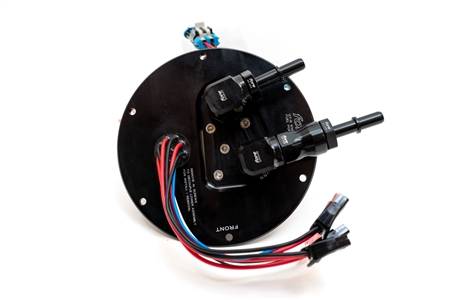

Billet Top Hat
Polymer Triple Fuel Pump Holder
Wires for OE sensors (such as level, temperature) with bullet connectors to be reconnected to OE harness
6 inches of insulated pump power wire protrude from top of hermetic seal with bare ends

*This system does NOT include feed fittings, return fittings, fuel pumps, fuel pressure regulator, fuel lines or fuel pump filter.

Fitment:
2007-2025 Nissan GTR R35

Installation Notes:
Must use upgraded feed/return fuel lines.
External 10 micron filtration must be added (this is included in all our complete fuel systems for the GT-R)
Choose FC3 controller to stage pumps using OEM triggers (run one pump full time)
OEM transfer function is retained (which continuously transfers fuel to the pump side) but our module eliminates the restrictive "basket" in the OEM fuel pump assembly. We recommend 1/2 tank minimum for track use.

Frequent Asked Questions

Q: Can I use this system with E85?
A: Yes, as long as you select microglass ssd or stainless filter element and select E85 rated fuel pumps.

Q: Should I select the FC2 or FC3 controller?
A: FC2: controller can only operate two pumps simultaneously, using OE or aftermarket switching signal. Best for controlling two small fuel pumps for street duty, or two large fuel pumps for track use only.

FC3: controller can run 1, 2, or 3 pumps full time, with remaining pumps activated on demand. Requires external switch (i.e. Hobbs, RPM, etc) best for controlling two or three large fuel pumps for street duty and minimizing heat.
