Fore Innovations 2007-2025 Nissan GTR R35 Return-Style Dual Fuel Pump Module - 1000+whp on gas

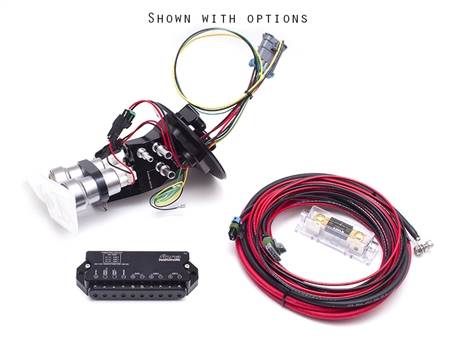

What's included in the base system?

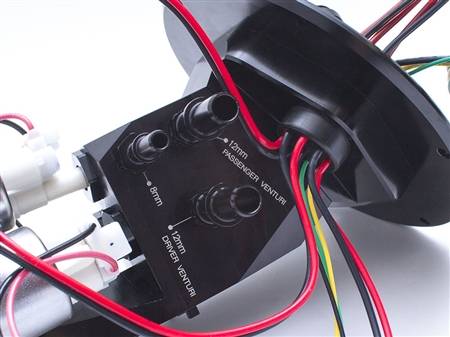

Billet Top Hat
Polymer Triple Fuel Pump Holder
Wires for OE sensors (such as level, temperature) with bullet connectors to be reconnected to OE harness
6 inches of insulated pump power wire protrude from top of hermetic seal with bare ends

*This system does NOT include feed fittings, return fittings, fuel pumps, fuel pressure regulator, fuel lines or fuel pump filter.

Fitment:
2007-2025 Nissan GTR R35

Installation Notes:
EGR delete is suggested for mounting filter vertically inside battery box (best known location)
Re-calibration required
Hose routing and filter mounting is ultimately up to installer, drilling is required to mount filter bracket and regulator
Cutting inside engine compartment may be required to route fuel hoses
OEM feed/return lines must be removed to route aftermarket fuel lines
Fittings are provided for typical installations, with regulator mounted on passenger/rear of engine compartment and filter inside battery box. Depending on engine compartment customization and preference of the installer/owner, additional [angled] fittings may be required to complete installation.

Frequent Asked Questions

Q: Can I use this system with E85?
A: Yes, as long as you select microglass ssd or stainless filter element and select E85 rated fuel pumps.

Q: Should I select the FC2 or FC3 controller?
A: FC2: controller can only operate two pumps simultaneously, using OE or aftermarket switching signal. Best for controlling two small fuel pumps for street duty, or two large fuel pumps for track use only.

FC3: controller can run 1, 2, or 3 pumps full time, with remaining pumps activated on demand. Requires external switch (i.e. Hobbs, RPM, etc) best for controlling two or three large fuel pumps for street duty and minimizing heat.
