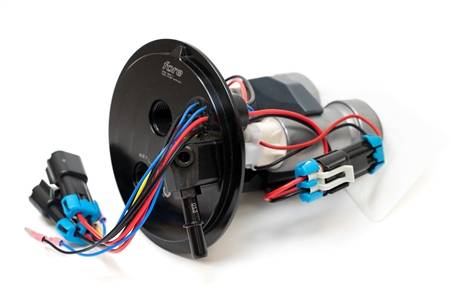

Fore Innovations 2008-2014 Subaru WRX / STI Return-Style Triple Fuel Pump Module - 1000+whp on gas

FI-87-900
Use in conjunction with a complete return style fuel system for 1000+ rwhp with triple fuel pumps (recommended to run one pump full time, then activate secondary pump under load). Retains OE fuel level sender, EVAP functionality, and tank transfer, and filler neck. This component requires the use of external feed and return lines, external filtration (for injectors), external regulation, and an upgraded electrical system. Upgraded fuel rails and an inline check valve is recommended. Supplies port fuel injection and optional wet nitrous.

This product has many options see the blue "choose product options" to configure your system and avoid any delays!

Note: This system does NOT include fuel pumps or fuel pump filter they can all be added using the product options.

*Notice, for those making 350+whp, aftermarket rails are required as the stock rails bottle necks around 350-400whp we offer the fore rails see PN: 88-100
Pricing: $729.00

Customize Your Item

- Electrical Upgrade Options -
 * required
- Feed Fitting Options -
 * required
- 2nd Fuel Pump Options -
 * required
- Fuel Pump Options -
 * required
- 3rd Fuel Pump Options -
 * required
- Fuel Type -
 * required
- Honeywell Switch Options -
 * required
- Return Fitting Options -
Qty:
Free Basic Shipping

Description

This is part of a stand alone fuel system. Professional installation and a custom tune is required. Qualified installers must be able to interface to the OE harness and FPDM/FPCM, understand proper component placement, hose routing, and deliver the vehicle with factory-like pump prime/on/off logic with no error codes. Fore Innovations will supply basic system schematics and detailed component level instructions, and can provide troubleshooting of the performance and function of our system and components.

What's included in the base system?
Billet Top Hat
Polymer Dual Fuel Pump Holder
Wires for OE sensors (such as level, temperature) with bullet connectors to be reconnected to OE harness
6 inches of insulated pump power wire protrude from top of hermetic seal with bare ends

*This system does NOT include feed fittings, return fittings, fuel pumps, fuel pressure regulator, fuel lines or fuel pump filter.

Fitment:
2008-2014 Subaru WRX / STI

Frequent Asked Questions

Q: Can I use this system with E85?
A: Yes, as long as you select microglass ssd or stainless filter element and select E85 rated fuel pumps.

Q: Should I select the FC2 or FC3 controller?
A: FC2: controller can only operate two pumps simultaneously, using OE or aftermarket switching signal. Best for controlling two small fuel pumps for street duty, or two large fuel pumps for track use only.

FC3: controller can run 1, 2, or 3 pumps full time, with remaining pumps activated on demand. Requires external switch (i.e. Hobbs, RPM, etc) best for controlling two or three large fuel pumps for street duty and minimizing heat.

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 50.0 lbs.
  • W7.0000” x H6.5000” x L8.2500”
