TSP Gen V L86/L87 6.2L Truck Stage 2 Camshaft with Valve Train Upgrade & DOD/AFM/DFM Delete Kit - 76+ HP Gain
The Texas Speed & Performance L86 Stage 2 camshaft is a great choice for the enthusiast looking for an additional jump in horsepower without sacrificing drivability. It will have a nice lope at idle but nothing too aggressive. It does not retain the factory AFM/DOD functionality that deactivates cylinders, so a DOD/AFM delete kit will be needed. We recommend that the VVT be locked out by means of a phaser lockout kit for all of our TSP LT camshafts.
Note: This kit has many product options please make sure you see the blue "choose product options" button to configure your system and avoid any delays.
*Notice, Custom tuning is required after installation to properly configure the camshaft and disable the AFM/DOD system.
Important Information: This kit has many options to add or remove parts use the blue "choose product options" button. To install these parts a new crankshaft bolt is required. Camshaft VVT bolt is highly recommended as it can only be reused a few times and many techs like to always install new ones. ARP bolts/studs are reusable not torque-to-field.
*For those who want short travel lifters for 6500+ rpm applications, you need to read the instructions on the PN: Morel-7790 page. Using the documents tab as they are very specific. Pushrod size will not be the stock 7.850" size you must measure.
Description
A high pressure fuel pump lash cap is commonly used when using aftermarket camshafts with 32+% fuel lobe for camshafts that are less than 32% fuel lobe measuring is still required CLICK HERE for a forum post with a great explanation on how to do so.

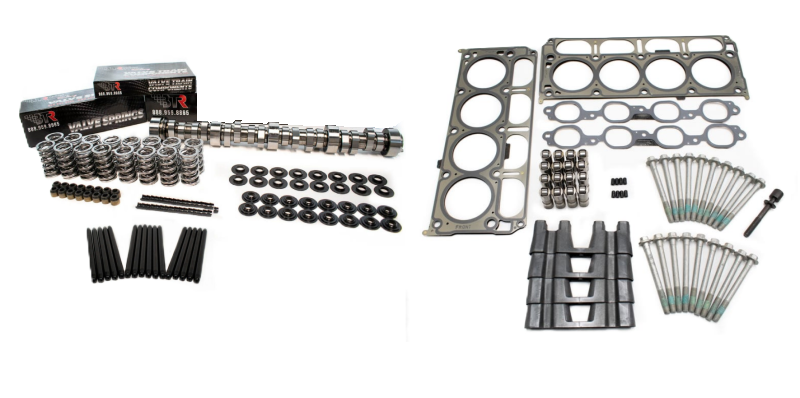

What is included with the this system?
TSP Gen V L86/L87 Stage 2 Camshaft - (TSP-L86-Stg2)
BTR Gen V LT .660 Lift Platinum Dual Spring Valve Spring Kit (SK007) - Upgrades Available
BTR 7.850" Stock Size Hardened Pushrods (Other sized and length checkers available using the product options)
BTR VVT Lockout and Cam Motion Phaser Tool
CBI Street Cars DOD/AFM Plugs (if you'd like a valley cover instead of plugs it is available in the product options)
BTR Delphi LT Lifters (Short travel high RPM lifters available in the product options)
BTR Lifter Trays - set of 4
BTR Gen V LT1/L86/L87 Head Gaskets - Pair
BTR Gen V Head Bolt Kit (Head studs available in the product options)
BTR Gen V Header Gaskets - Pair
Camshaft Specs

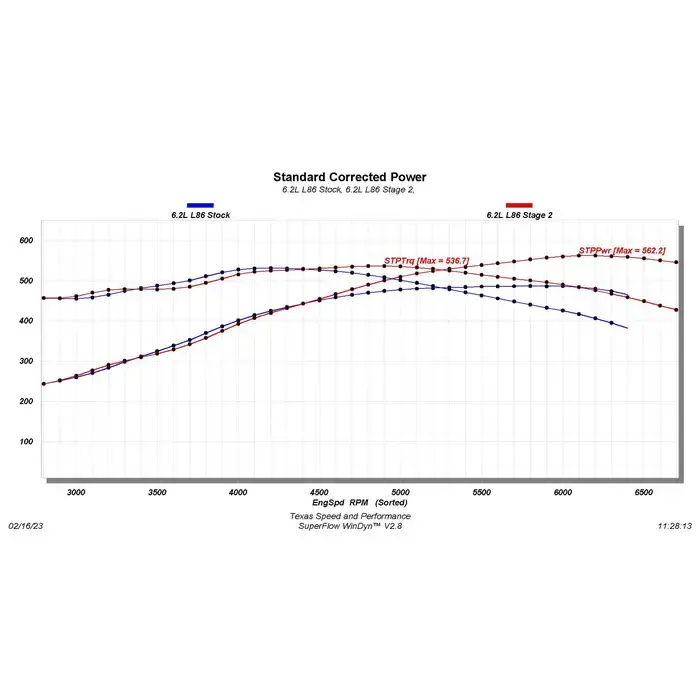

Expected HP Gain: 76+ HP Gain
Cam Style: Hydraulic roller, OE roller
Camshaft Use: Street/Strip
Camshaft Duration: 222/236
Valve Lift with Factory Rocker Arm Ratio: 0.610 int./0.610 exh.
Torque Converter Information: Factory Converter Friendly
Lobe Separation (degrees): 113
Fuel Lobe Percentage: 10%
Drivability: Good drivability with a decent lope at idle!
Chop Level: Some Chop
Vehicle Fitment:
2014+ Chevy Silverado 6.2L
2014+ GMC Sierra 6.2L
2018+ Chevrolet Tahoe 6.2L
2019+ Chevrolet Suburban 6.2L
2015+ GMC Yukon/Yukon XL 6.2L
2015+ Cadillac Escalade 6.2L
Gen V L86 or L87 Crate Engine
