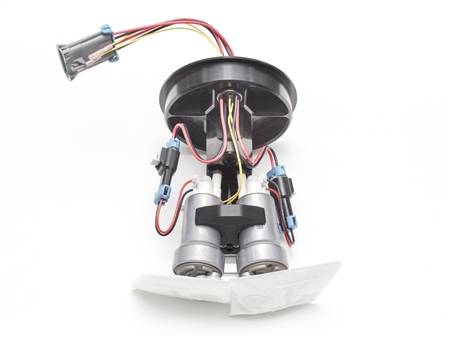

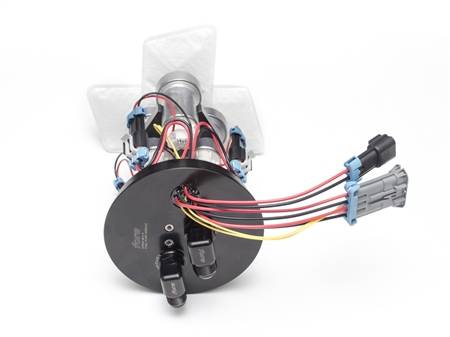

Fore Innovations 2013+ Dodge Viper V10 Triple Pump Fuel Pump Billet Module - 2000rwhp Capable
This product has many options see the blue "choose product options" to configure your system and avoid any delays!
Note: This system does NOT include feed fittings, return fittings, fuel pumps, fuel pressure regulator, in-line fuel filters, fuel lines or fuel pump filters.
*Notice, to use this module you must also install an external fuel pressure regulator, 10 micron or finer micron in-line fuel filter and aftermarket fuel lines all which are NOT included.
Description
What's included in the base system?
Billet Top Hat
Polymer Triple Fuel Pump Holder
Wires for OE sensors (such as level, temperature) with bullet connectors to be reconnected to OE harness
6 inches of insulated pump power wire protrude from top of hermetic seal with bare ends
Feed Port: ORB-10 female (7/8-14 threads)
Return Port: ORB-8 female (3/4-16 threads)
dual pump module
Capable of supporting 2000 rear wheel horsepower*
E85 and race fuel compatible (see pump manufacturer recommendations on fuel compatibility)
Use in return configuration only (call for details)
Discharges return fuel low in tank (through module) to prevent aeration and disruption of pump intake
Accepts OE level sender
Viton o-ring pump seals totally eliminate in-tank fuel hose failures
Deletes inaccurate, static OE regulator
Polymer pump support eliminates pump body electrolysis and minimizes noise
Hermetic wire seal completely eliminates the chance for leaks/smell
Broad range of pump compatibility
*This system does NOT include feed fittings, return fittings, fuel pumps, fuel pressure regulator, fuel lines or fuel pump filter.
Fitment: 2013+ Dodge Viper V10
Fuel Type:
Gasoline / race gas: choose if you are will only be running typical pump gas or race gasoline, such as MS109, C16, Q16, etc.
Ethanol blends, gasoline, race gas: choose if you will be running a combination of gasoline, race gas, E85, E98, E85R, C85, etc.
Frequent Asked Questions
Q: Should I select the FC2 or FC3 controller?
A: FC2: controller can only operate two pumps simultaneously, using OE or aftermarket switching signal. Best for controlling two small fuel pumps for street duty, or two large fuel pumps for track use only.
FC3: controller can run 1, 2, or 3 pumps full time, with remaining pumps activated on demand. Requires external switch (i.e. Hobbs, RPM, etc) best for controlling two or three large fuel pumps for street duty and minimizing heat.
Details
Shipping Information
- Item Requires Shipping
- 45.0 lbs.
- W7.0000” x H6.5000” x L8.2500”
- Free Basic Shipping
