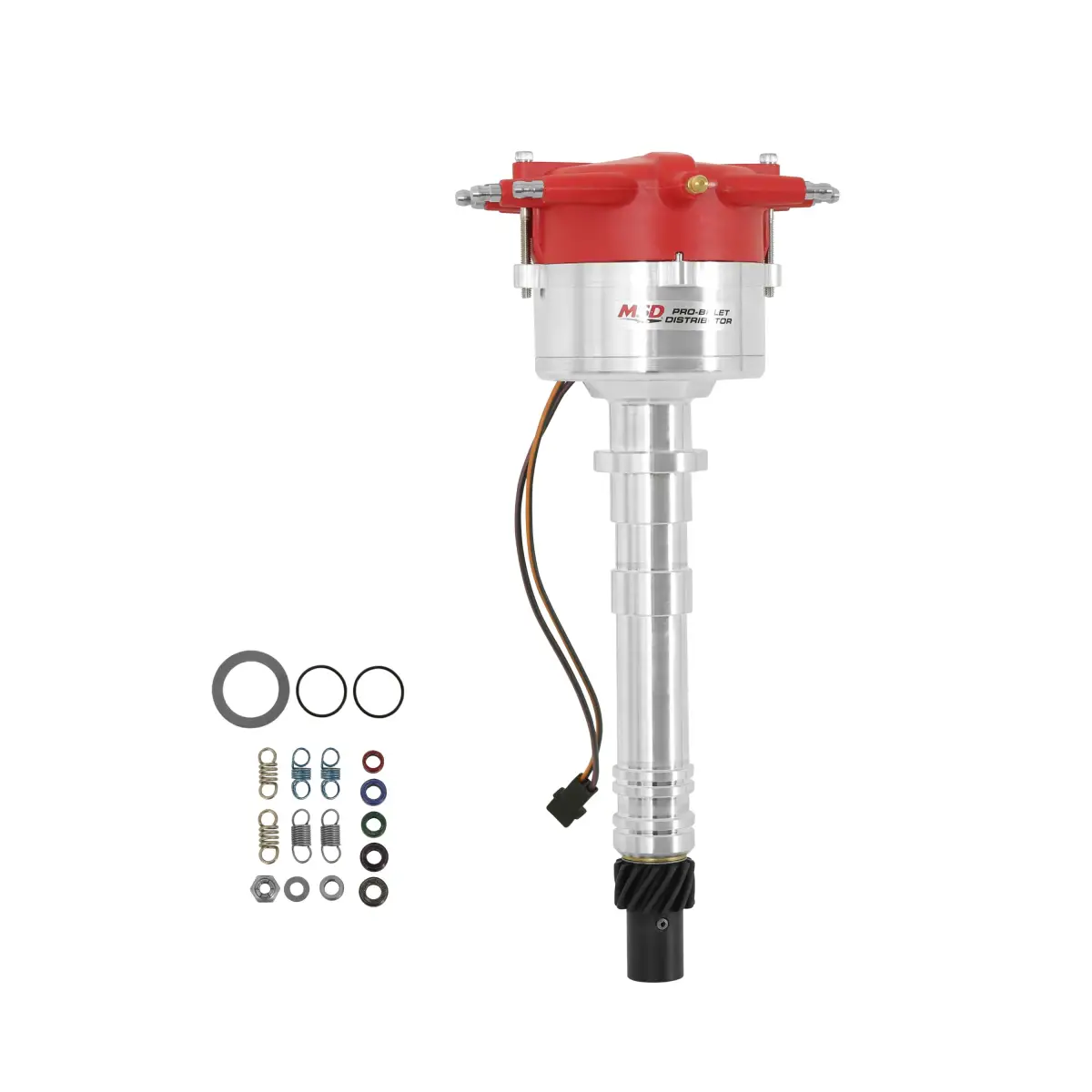

MSD SBC/BBC Flat Cap Crank Trigger Locked-Out Distributor - Iron Melonized Gear (Requires MSD Ignition Control & Crank Trigger)

MSD-84891
For trigger accuracy, a maintenance-free magnetic pick-up is used. This pick-up plugs directly into an MSD Ignition Control. The Flat-Top Distributor is supplied with our Dupont, Rynite molded distributor cap and rotor along with a heavy duty gear for long life in your engine. Having a huge huffer mounted on top of your engine is cool, but can lead to limited choices for a distributor. We decided to morph our Crab Cap crank trigger distributor with a standard Chevy model to come up with the Flat-Top! This distributor sits low in the engine block, then is topped with our special Crab Cap that positions the spark plug terminals horizontally to give you plenty of clearance. The distributor incorporates a mechanical advance assembly that you can easily tune with the supplied springs and stop bushings.

Note: This distributor does requires MDS 6,7 or 8 series ignition control and crank trigger
Shipping: FREE Shipping when ordered with other parts.
Pricing: $712.95

Qty:
Free Basic Shipping

Description

Features:
CNC machined billet aluminum housing and Dupont Rynite base is designed for standard Chevrolet blocks
Must be used with an MSD Crank Trigger and MSD Ignition Control
O-ring seals can be added to modified blocks to improve oil pressure control
Shaft is guided by a sealed ball bearing and an extra long sintered bushing
Oversized polished steel shaft with a QPQ coating for friction reduction
Special oil tract improves lubrication to the distributor and cam gear
Adjustable slip collar for engines with modified deck heights
flat cap will clear cowlings, blowers, exotic intakes and air cleaners

Specs:
Part Number: MSD-84891
Distributor Cap Included: Yes
Distributor Cap Style: Male/HEI
Distributor Cap Type: Flat Cap
Ignition Coil Included: No
Ignition Module Included: No
Computer-Controlled Compatible: No
Trigger Style: Crank Trigger
Advance Type: Locked
Ignition Box Required: Yes
Mechanical Tach Drive: No
Slip Collar: Yes
Distributor Gear Material: Bronze
Distributor Gear Rotation: Standard
Distributor Cap Color: Red
Housing Material: Aluminum
Housing Finish: Natural
Marine Use: No
