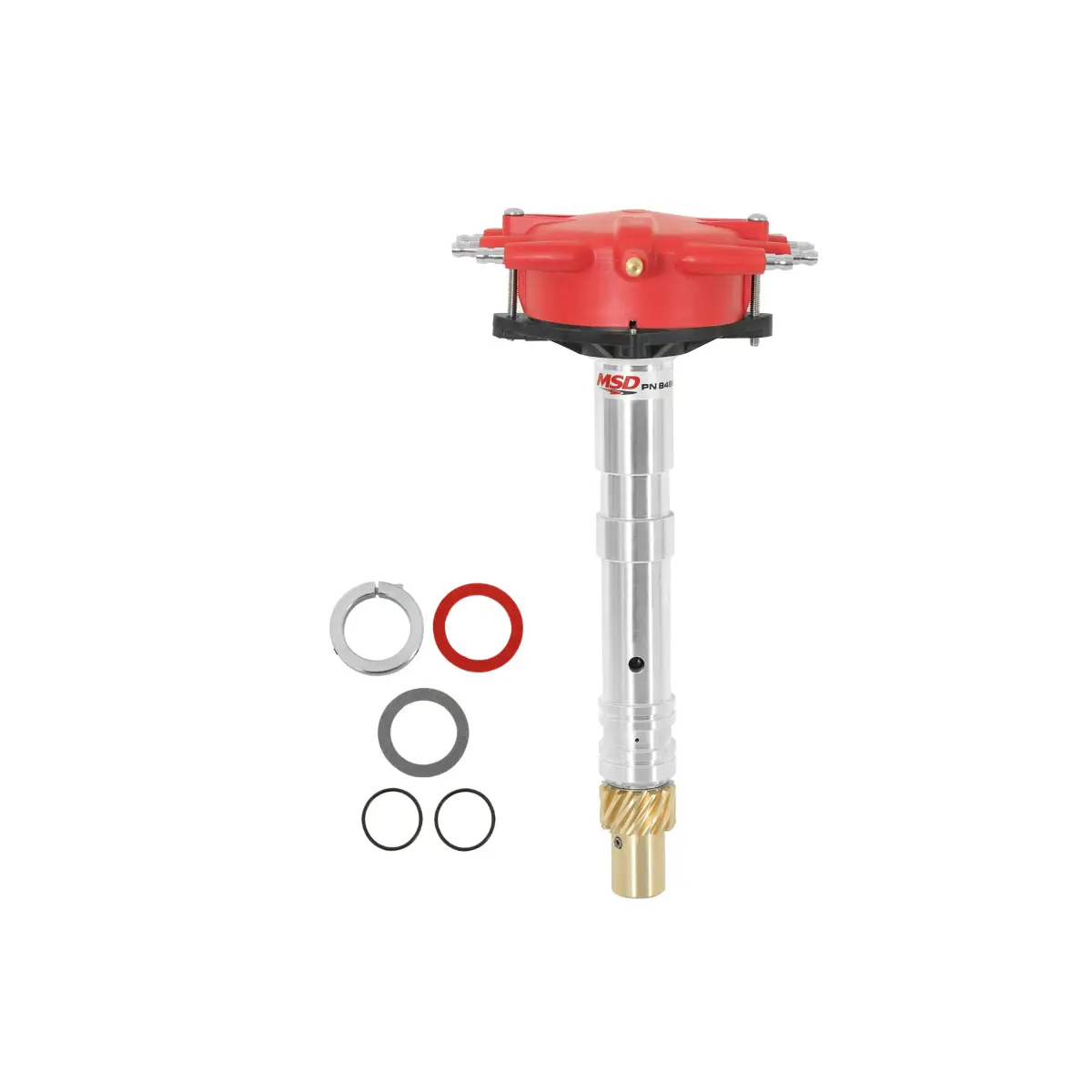

MSD SBC/BBC Crab Cap Crank Trigger Locked-Out Distributor - Bronze Gear (Requires MSD Ignition Control & Crank Trigger)

MSD-8489
The MSD Crab Cap Distributors are built specifically for racing engines with almost no room for a distributor due to tunnel rams or blowers. The distributor is equipped with a special low-profile crab style distributor cap to allow it to fit in extremely tight areas. The housing features two optional O-rings at the bottom that improve oil control by preventing oil pressure loss. Also, a small oil bleed hole located in the base sprays oil on the distributor and camshaft gears to prevent excessive wear. Since this is a racing distributor, there is an adjustable slip collar to make up for engines that have had the distance between the mounting surface and the gear modified.

Crowning this distributor is MSD's own Crab Cap! This cap incorporates spark plug style terminals for a better connection and grip to the plug wires.

Note: This distributor does requires MDS 6,7 or 8 series ignition control and crank trigger
Shipping: FREE Shipping when ordered with other parts.
Pricing: $415.95

Qty:
Free Basic Shipping

Description

Features:
CNC machined billet aluminum housing and Dupont Rynite base is designed for standard Chevrolet blocks
Must be used with an MSD Crank Trigger and MSD Ignition Control
O-ring seals can be added to modified blocks to improve oil pressure control
Shaft is guided by a sealed ball bearing and an extra long sintered bushing
Oversized polished steel shaft with a QPQ coating for friction reduction
Supplied with small, low crab style distributor cap, rotor and bronze gear
Special oil tract improves lubrication to the distributor and cam gear
Adjustable slip collar for engines with modified deck heights
0.500” taller for extra tall Chevrolet based engine blocks
Designed to fit low in the block to clear firewall and intake combinations

Specs:
Part Number: MSD-8489
Distributor Cap Included: Yes
Distributor Cap Style: Male/HEI
Distributor Cap Type: Crab Cap
Ignition Coil Included: No
Ignition Module Included: No
Computer-Controlled Compatible: No
Trigger Style: Crank Trigger
Advance Type: Locked
Ignition Box Required: Yes
Mechanical Tach Drive: No
Slip Collar: Yes
Distributor Gear Material: Bronze
Distributor Gear Rotation: Standard
Distributor Cap Color: Red
Housing Material: Aluminum
Housing Finish: Natural
Marine Use: No
Notes: Distributor is 2.875 - 3.750 in. tall from engine to top of distributor cap.
