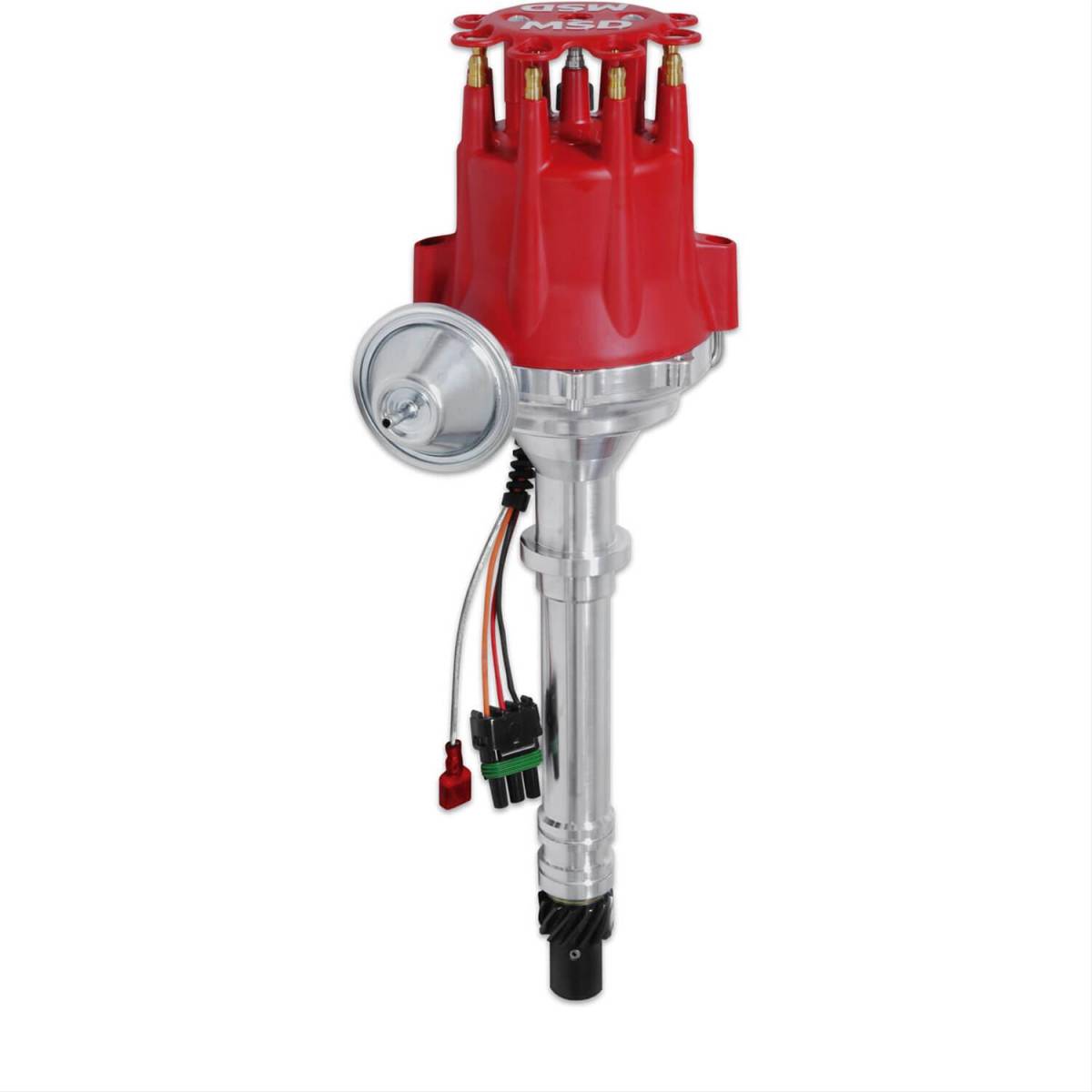

MSD SBC/BBC Pro-Billet Distributor w/ Internal Module - Iron Melonized Gear (No MSD Ignition Control Required)

Features:
Supplied with an HEI style distributor cap and rotor (accepts Cap-A-Dapts)
Simple and clean installation with only three wires to connect
Polished steel shaft is QPQ coated and guided by a sealed ball bearing
Special oil tract improves lubrication to the distributor and cam gear
Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
Nylon pads ensure smooth operation of the advance weights
Powerful built-in module produces a 7.5 amp single spark through high rpm
CARB E.O. approved
CNC machined billet aluminum housing and billet aluminum base
Easy-to-adjust mechanical advance with supplied springs and stop bushings
Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
O-ring seals can be added to modified blocks to improve oil pressure control
Does not require an MSD Ignition Control
Advance weight pins are staked and tig welded to the plate
Now includes build-in rev limiter
Mechanical advance assembly can be locked out for crank trigger systems
Vacuum advance canister for improved economy (can be locked out)

Specs:
Part Number: MSD-8360
Distributor Cap Included: Yes
Distributor Cap Style: Male/HEI
Distributor Cap Type: Small cap
Ignition Coil Included: No
Ignition Module Included: Yes
Computer-Controlled Compatible: No
Trigger Style: Magnetic
Advance Type: Vacuum and mechanical
Ignition Box Required: No
Mechanical Tach Drive: No
Slip Collar: No
Distributor Gear Material: Iron Melonized
Distributor Gear Rotation: Standard
Distributor Cap Color: Red
Housing Material: Aluminum
Housing Finish: Natural
Marine Use: No

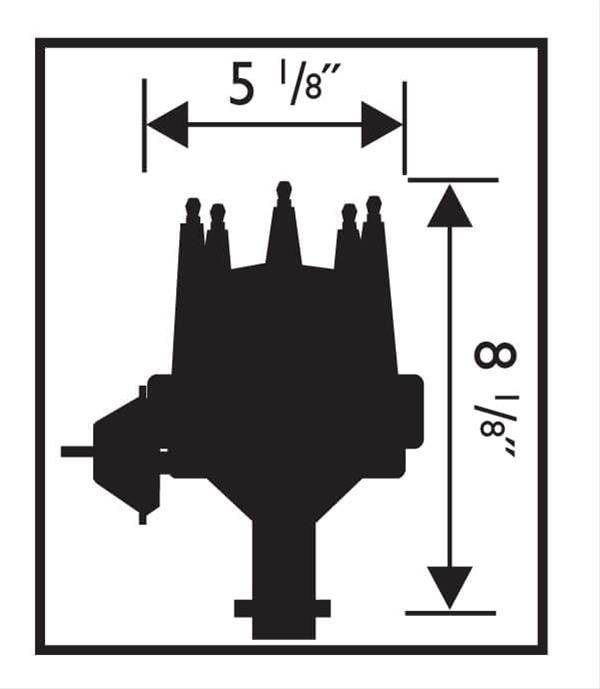

Notes: Distributor is 8.125 in. tall from engine to top of distributor cap.
CARB EO Number(s): D-40-39
